Sharkbite UR3016A 3/4 in Slip Coupling Push Connect Brass

Product Description

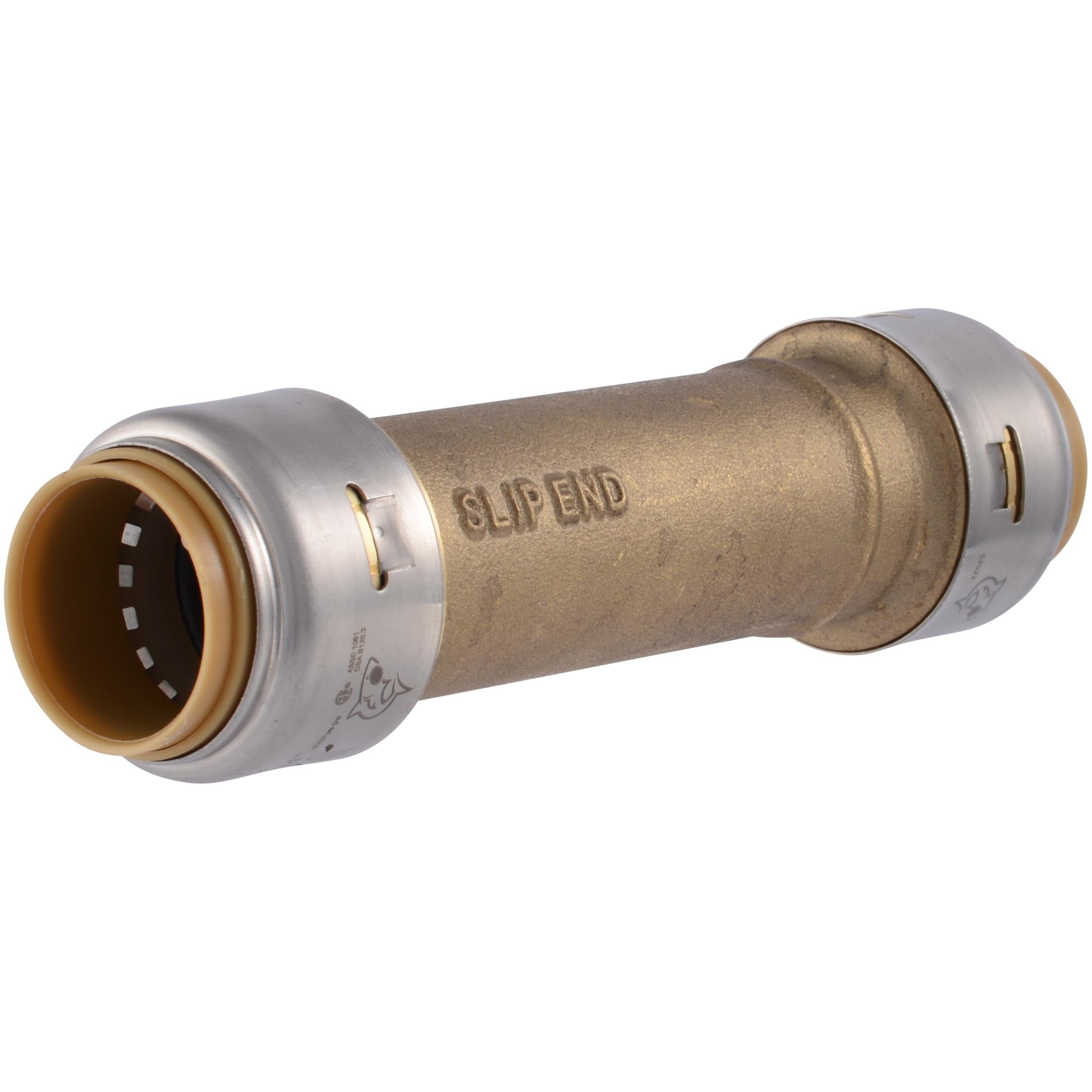

The SHARKBITE UR3016A is a 3/4 inch push-to-connect slip coupling made from lead-free forged DZR brass with a reinforced stainless-steel collar. It is designed for fast, tool-free pipe repair and connection in residential and commercial plumbing systems. The slip end is compatible with copper and CPVC pipe only. Rated to 200 degrees F and 400 PSI with a 2,000 PSI maximum burst pressure, this fitting delivers a secure, long-lasting connection without soldering, glue, or special tools. Licensed plumbers and experienced pipe fitters install this fitting to make quick repairs in tight spaces, wet lines, and concealed wall or underground installations.

The UR3016A is suited for residential and light commercial plumbing repairs where access is limited. The slip end design allows the coupling to slide onto copper or CPVC pipe for in-line repairs without cutting out a precise segment length. It is approved for behind-the-wall and underground use with no access panel required; wrapping is required when burying underground. Because no PEX tube liner is needed when used on copper or CPVC, the fitting does not restrict flow through the connection point.

Key Features

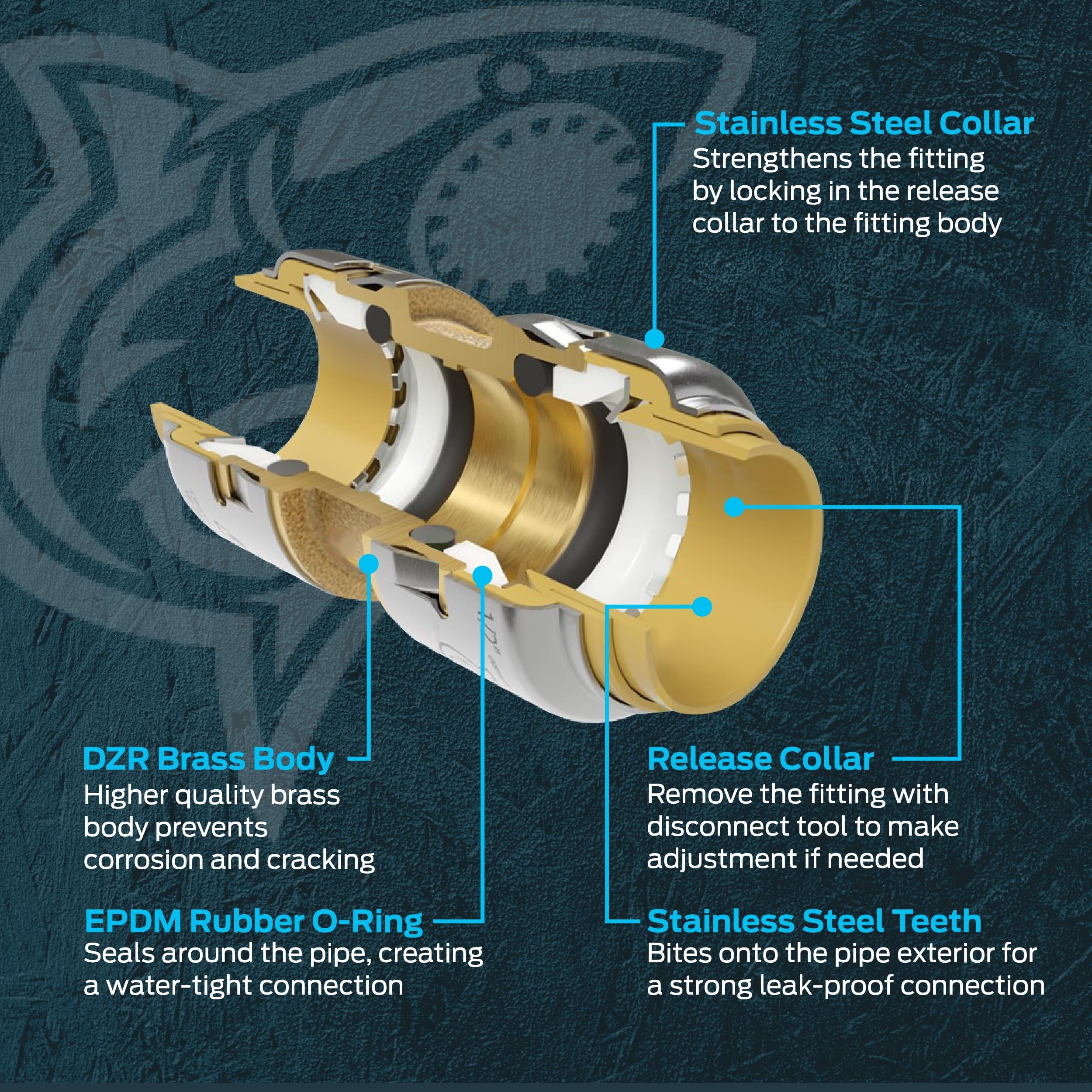

• Lead-free forged DZR brass construction with reinforced stainless-steel locking collar
• Push-to-connect installation requires no soldering, glue, or additional tools
• Slip end design compatible with copper and CPVC pipe only
• Approved for wet-line installation, behind-the-wall, and underground applications (wrapping required when buried)
• No PEX tube liner required on copper or CPVC, eliminating flow restriction
• Rated to 200 degrees F and 400 PSI; 2,000 PSI maximum burst pressure

Compatibility

The slip end of this coupling is compatible with copper and CPVC pipe only. The push-to-connect end is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe in the 3/4 inch pipe size. Meets the same standards for both commercial and residential plumbing applications.

Installation Notes

This fitting is installed by licensed plumbers or qualified pipe fitters working under applicable plumbing codes such as the IPC. Before beginning any repair, shut off the water supply and relieve pressure in the line. Ensure pipe ends are cut clean and square with no burrs or debris before insertion. When installing underground, wrap the fitting per local code requirements.
