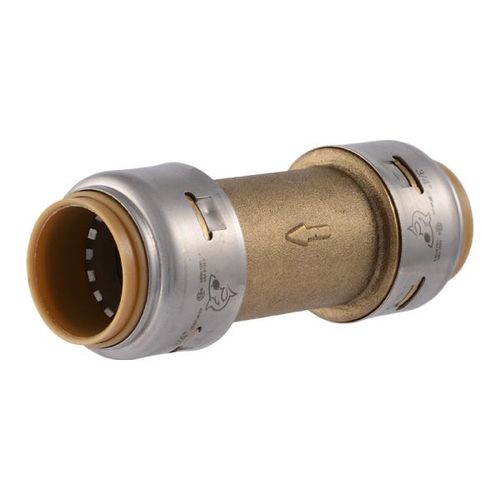

Sharkbite UR2016 Max Check Valve 3/4 inches

Product Description

The Sharkbite UR2016 Max Check Valve is a spring-loaded valve designed to prevent the reverse flow of water. Its push-to-connect design allows for quick and easy installation on PEX, copper, CPVC, PE-RT and SDR-9 HDPE lines. It can be installed horizontally or vertically and is ideal for working in tight spaces.

• Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe.
• No special tools, crimping, glue or soldering is needed.
• Can be installed horizontally or vertically.

Product Highlights

This check valve features a push-to-connect design, DZR brass body, and stainless steel grab ring for a secure, leak-free connection.

Product Information

Standard Information

• Brand: Sharkbite
• Manufacturer Part Number: UR2016
• Country of Origin: America

Technical Specifications

• Size: 3/4"
• Max Temp (F): 210°F
• Lead Free: Yes
• Max Pressure (PSI): 400
• Insertion Depth: 1-1/8"
• Material: Brass
• Cracking Pressure: 2 PSI
• Length: 3 1/2 Inches
• Diameter: 1 5/16 Inches
• Features: Corrosion-Resistant, Crack-Resistant, EDPM O-Ring
• Maximum Water Temperature: 200 Degrees F
• Pipe Size: 3/4 Inch
• Type: Check Valves
• Series: Max™
• Nominal Size: 3/4 Inch
• End Style: Push
• Pressure Rating: 250 psi
• Media: Water
• Body Material: DZR Brass
• Mounting Position: Horizontal, Vertical
• Trim Material: Stainless Steel
• Softgoods Material: EPDM
• Temperature Rating: 40 to 200 deg F
