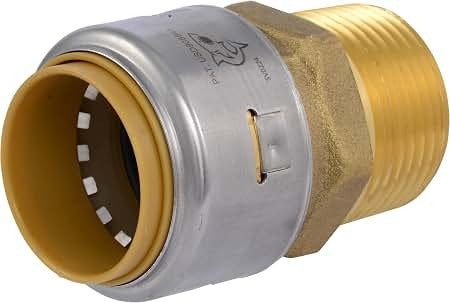

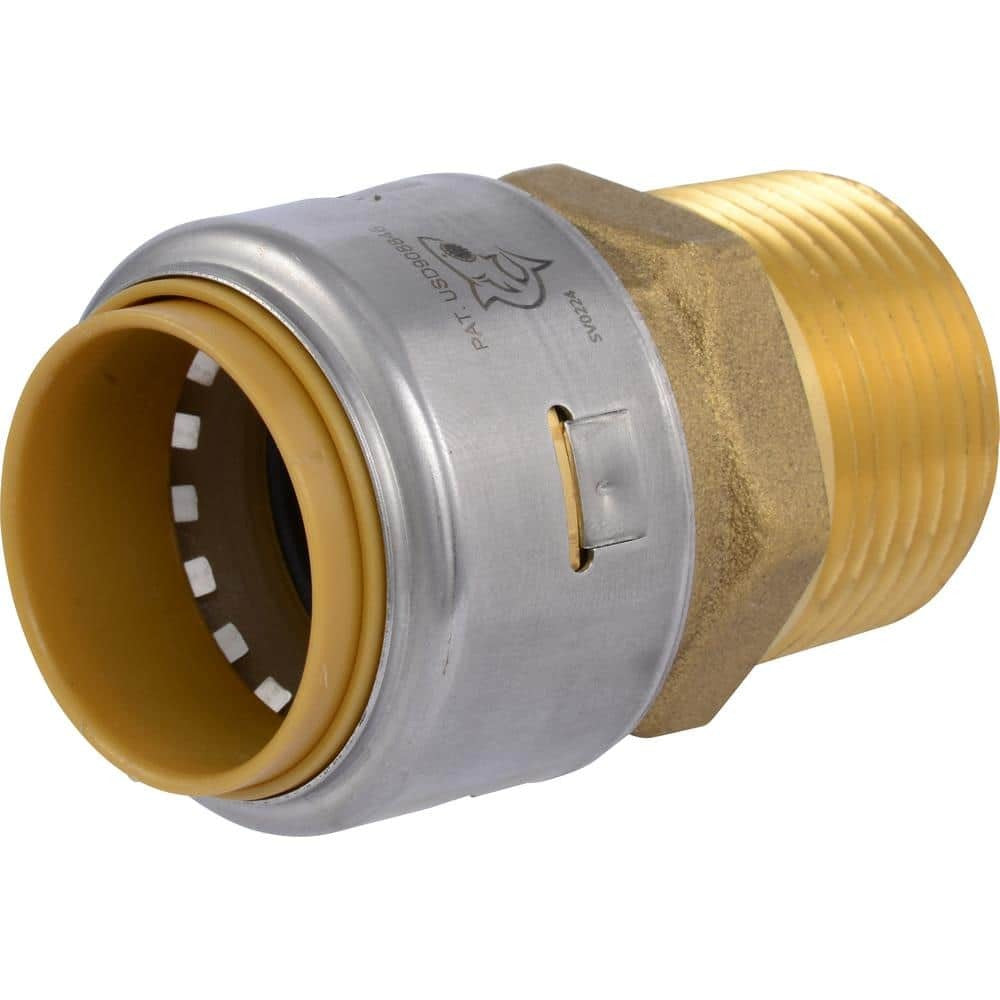

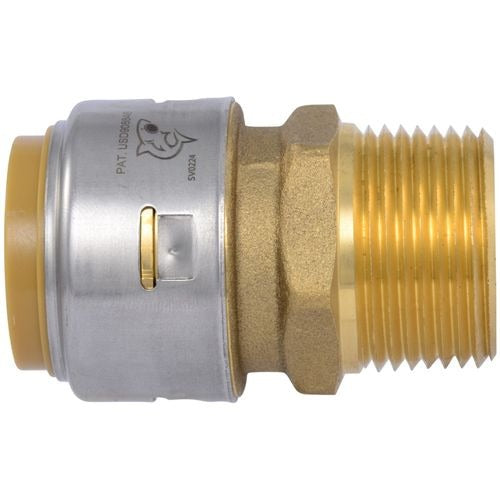

Sharkbite UR140A Max Male Adapter Push-to-Connect x MNPT 1 in

Product Description

The SharkBite UR140A is a Max push-to-connect male adapter that connects 1 in CTS/PTC pipe to 1 in MNPT threads. It uses a DZR lead-free brass body with a stainless steel retainer and a specially formulated O-ring to form a watertight seal. Compatible with PEX, copper, CPVC, PE-RT and HDPE SDR-9, the fitting installs on wet lines, is removable with disconnect tools, and is rated to 200 F and 400 psi for heating and plumbing applications. Insertion depth is 1-5/16 in and the fitting can be rotated after installation.

• Compatible with PEX, copper, CPVC, PE-RT and HDPE SDR-9; connects CTS/OD controlled copper to MNPT
• DZR lead-free brass body with stainless steel retainer and specially formulated O-ring for a watertight push-to-connect joint
• Rated 400 psi and up to 200 F; removable with disconnect clip, disconnect tongs or pro disconnect tool; insertion depth 1-5/16 in

Product Highlights

1 in push-to-connect to 1 in MNPT adapter; DZR lead-free brass; 400 psi / 200 F rating

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR140A
