Sharkbite UR008 Max Coupling 1/2 inch

Product Description

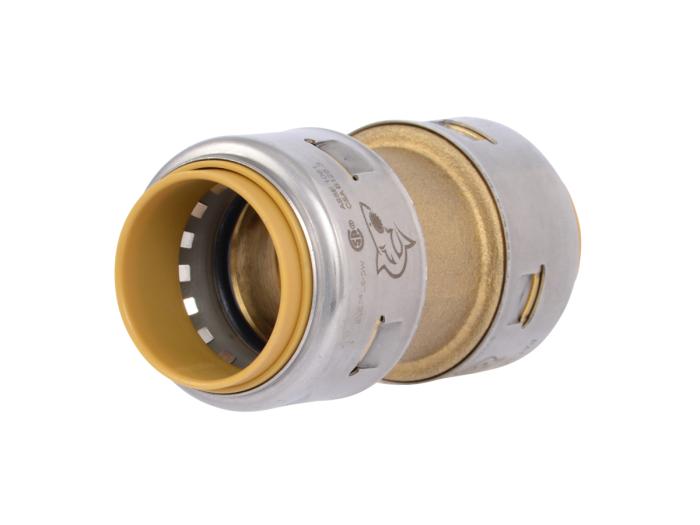

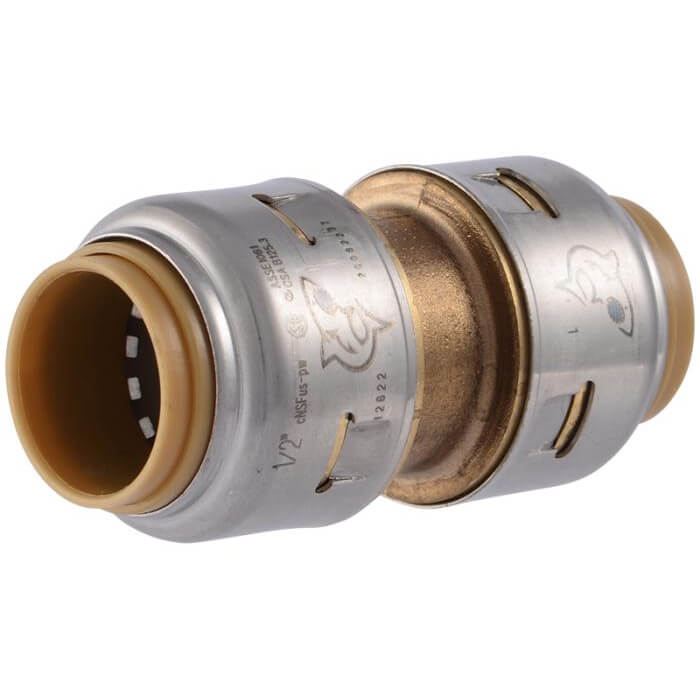

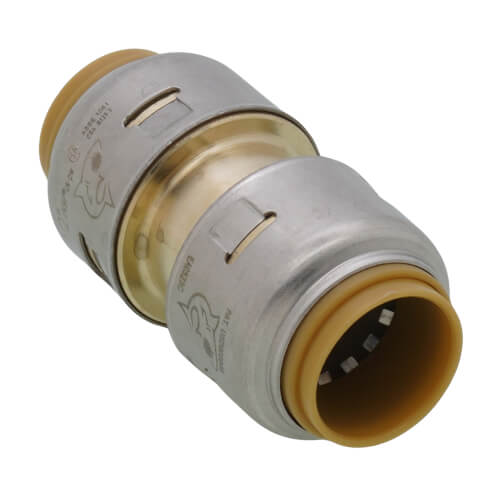

The SHARKBITE UR008 Max Coupling is a push-to-connect brass plumbing fitting designed for quick and easy installations. This straight coupling connects PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipes. Approved for behind-the-wall and underground applications, it offers a versatile solution for both permanent and temporary fixes.

• Push-fit design for easy and fast connections.
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipes.
• No soldering, clamps, unions, or glue required.

Product Highlights

Ideal for potable water and radiant heating applications, this coupling is rated up to 200°F and 250 psi, ensuring durability and quality.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR008
• Country of Origin: United States

Technical Specifications

• Material: Brass
• Thread Size: 0.5 inch
• Connector Type: Coupling
• Item Model Number: UR008
• Part Number: UR008A4
• Nominal Size: 1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Size: 1/2" x 1/2"
• PEX Size: 1/2"
• Application: Heating
• Max Temp (F): 200°F
• Standards Met: NSF
• Insertion Depth: 15/16"
• Max Pressure (PSI): 200
• Tubing Compatibility: CPVC, PEX, OD Controlled Copper
• Fitting System Compatibility: Push Fit
• Double Fitting Size: 1/2" x 1/2"
• Pack Size: 1
• Domestic/Import: Import
• End Style: Push-Fit
• Finish: Natural Brass/Polished Chrome
• Selling Size: 1/2|in
• Body Material: Lead Free DZR Brass
• Catalog Number: UR008
• Selling Length: 2.1|in
• Compatible With: PEX, Copper, CPVC, PE-RT, HDPE SDR-9
• Maximum Pressure Rating: 250|PSI
• Maximum Temperature Rating: +200|deg F
• Pipe Size: 1/2 in. x 1/2 in.
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
