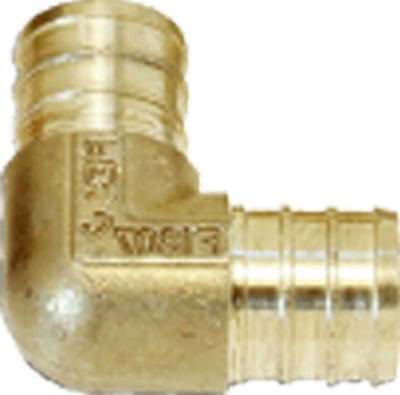

Sharkbite UC256LFA 3/4 Inch Brass Barb Insert Elbow Pex 90

Product Description

The SHARKBITE/CASH ACME UC256LFA is a 3/4 inch lead-free brass barb insert elbow designed to join two sections of 3/4 inch cross-linked polyethylene PEX tubing at a 90-degree angle. Built from lead-free brass, this fitting meets NSF/ANSI Standard 14-2009 and ASTM F 1807 for potable water transport, as well as ANSI/NSF Standard 61 Annex G for lead-free compliance. The wetted surface contains less than 0.25% lead by weight, satisfying California AB1953 and Vermont VT S152 low-lead restrictions. Licensed plumbers and pipefitters install this fitting in residential and light commercial PEX plumbing systems.

This elbow is intended for use in PEX piping installations where a 90-degree directional change is required in a 3/4 inch line. It is secured to PEX pipe using compatible cinch clamps with a cinch tool or copper crimp rings with a crimp tool. The fitting is immediately testable to well over 100 psi after installation, making it practical for pressure-testing during rough-in. It ships in a package quantity of 24 units, suited for contractor-volume work on residential plumbing projects.

Key Features

• Lead-free brass construction with less than 0.25% lead by weight on wetted surfaces
• 90-degree barb insert elbow configuration for directional PEX runs
• Compatible with cinch clamp or copper crimp ring installation methods
• Immediately pressure-testable to well over 100 psi after securing
• Meets NSF/ANSI Standard 14-2009, ASTM F 1807, and ANSI/NSF Standard 61 Annex G
• Compliant with California AB1953 and Vermont VT S152 low-lead restrictions

Compatibility

Designed for use with 3/4 inch cross-linked polyethylene PEX tubing. Cinch clamp installation requires compatible cinch clamps and cinch tool; copper crimp ring installation requires copper crimp rings and a crimp tool appropriate for 3/4 inch PEX fittings.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before cutting into existing pipe. Barb ends must be fully seated into PEX tubing before applying cinch clamps or copper crimp rings to ensure a leak-free joint. Pressure-test the assembly before closing walls or concealing the piping.
