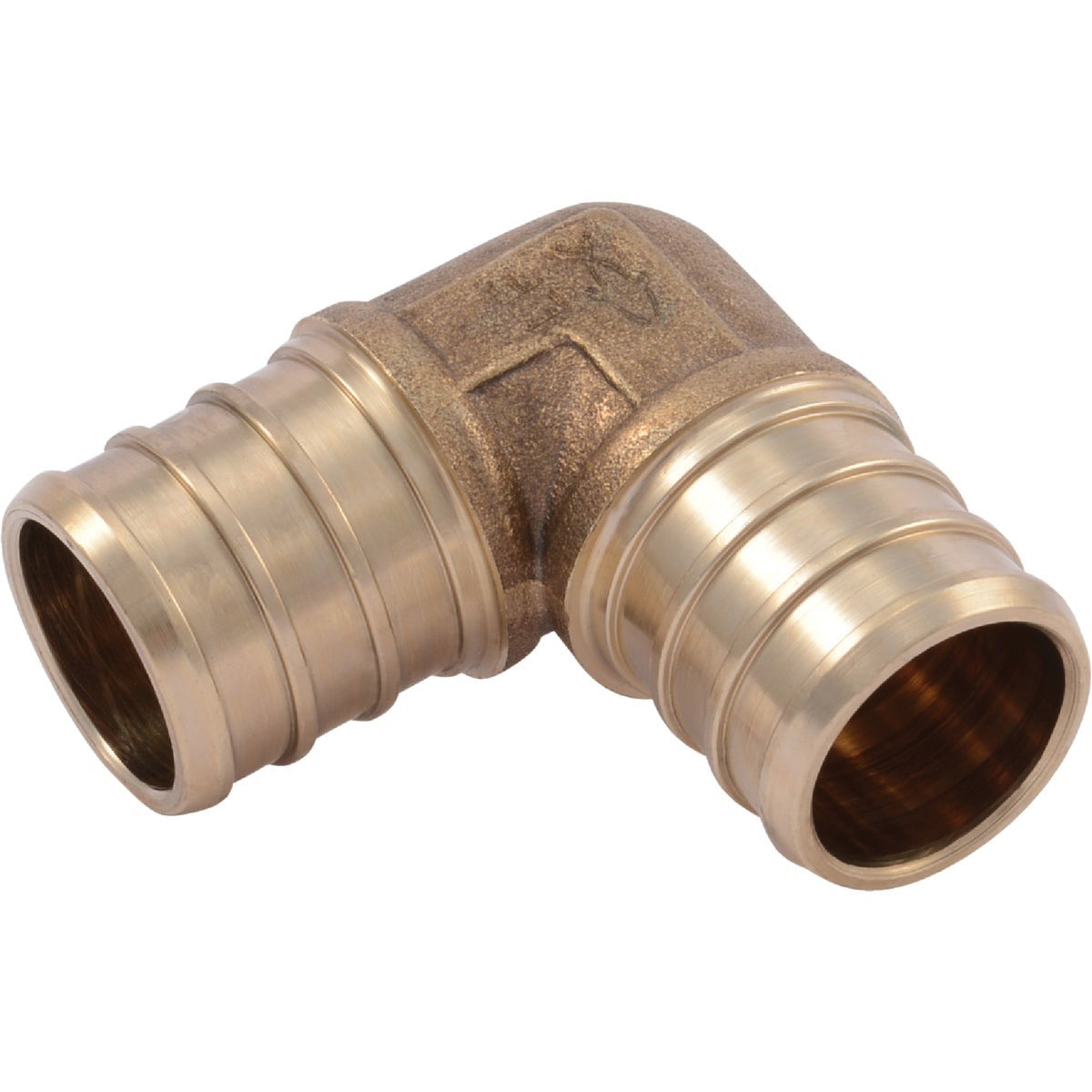

Sharkbite UC256LFA 3/4 in Brass Pex Barb 90 Degree Elbow

Product Description

The SHARKBITE UC256LFA is a 3/4 inch PEX barb 90-degree elbow fitting constructed from lead-free DZR brass. It is designed for connecting PEX tubing at a right angle in residential and light commercial plumbing systems. The barbed connection style makes installation straightforward without specialized tooling beyond a standard clamp or crimp tool. This fitting meets NSF/ANSI 61 and NSF 372 standards, confirming it is rated for potable water contact and verified lead-free. Licensed plumbers and pipefitters install this type of fitting during rough-in and retrofit work on PEX distribution systems.

The UC256LFA is suited for potable water distribution and hydronic heating applications. It is compatible with both stainless steel clamp ring systems and copper crimp ring systems, giving installers flexibility to use whichever termination method is already on the job. The fitting accepts 3/4 inch PEX tubing on both ends, making it a direct, low-profile directional change component in a PEX run.

Key Features

• Lead-free DZR brass construction meets NSF 372 lead-free requirements
• Rated for potable water distribution per NSF/ANSI 61
• Compliant with ASTM F1807 crimp fitting standard
• Compatible with both stainless steel clamp ring and copper crimp ring systems
• 3/4 inch barb on both ends for a 90-degree directional change in PEX tubing runs
• Suitable for hydronic heating as well as domestic water supply

Compatibility

Compatible with 3/4 inch PEX tubing in stainless steel clamp ring systems and copper crimp ring systems. Rated for potable water distribution and hydronic heating applications. Clamp rings and crimp rings are each sold separately.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off water supply and relieve system pressure before cutting into any existing line. Use a calibrated PEX crimp tool for copper rings or an ear-clamp tool for stainless steel clamps to achieve a proper, leak-free connection. Do not use this fitting with push-to-connect or compression-style termination methods.
