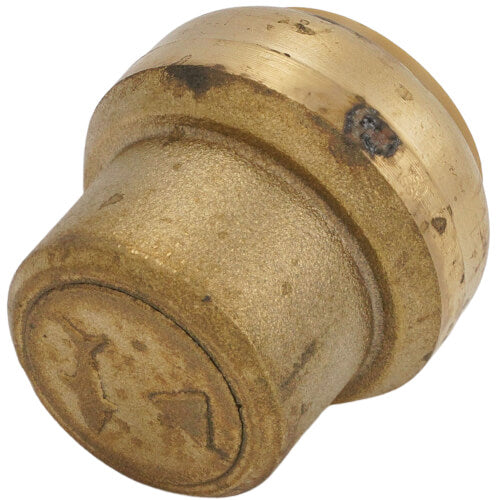

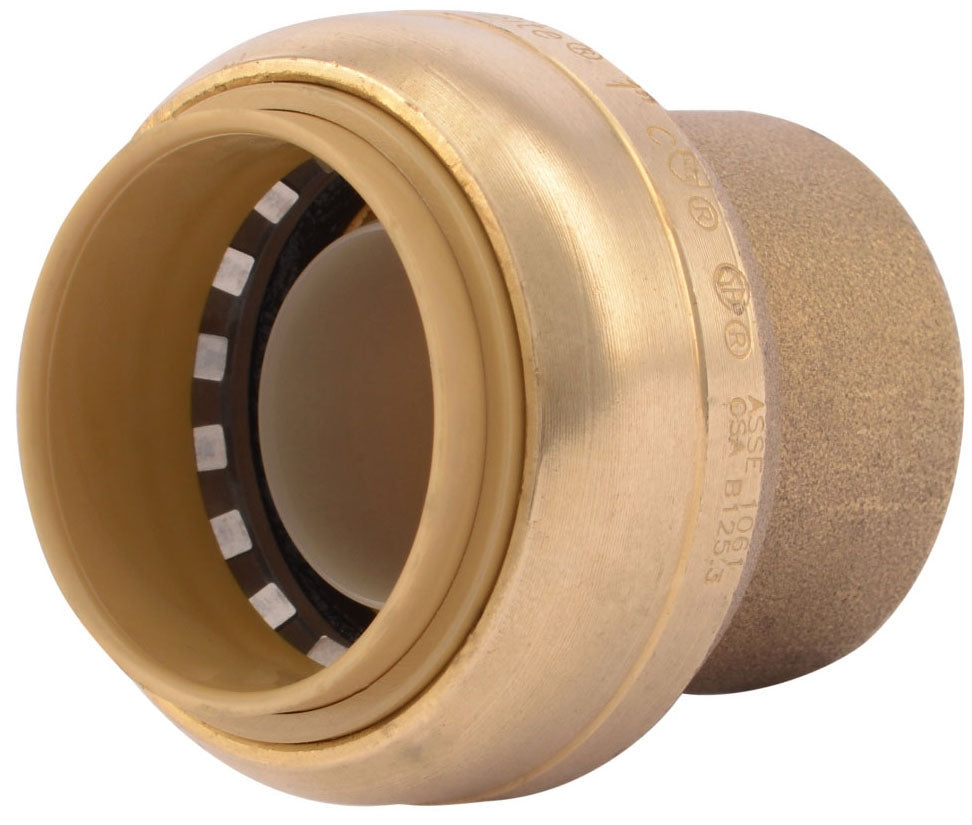

SharkBite U520LF Brass Push-Fit End Cap 1 Inch

Product Description

The SharkBite U520LF is a 1-inch push-fit end cap designed for quick and efficient pipe sealing, fabricated from dezincification resistant brass. Ideal for applications involving potable and hydronic water distribution, this end cap offers easy installation without the need for soldering or special tools.

• Lead-free construction ensures safety for potable water systems.
• Compatible with PEX, copper, CPVC, and PE-RT pipe types.
• Rated for up to 200 PSI and temperatures up to 200 degrees Fahrenheit.

Product Highlights

This end cap features robust push-to-connect fitting that simplifies installations even in tight spaces, enhancing pipeline integrity and leak-prevention. Its design is certified under various standards including NSF/ANSI 61 and 372, ASSE 1061, and CSA B125.3.

Product Information

Standard Information

• UPC: 697285465527
• Color: Brass

Technical Specifications

• Product Type: Cap
• Pressure Rating: 200 PSI
• Temperature Rating: 200 Degrees Fahrenheit
• Material: DZR Brass
• Connection Type: Push-Fit
• Applicable Standards: NSF/ANSI 61, NSF 372, ASSE 1061, CSA B125.3
