Sharkbite U514 EndStop 1/2 inches

Product Description

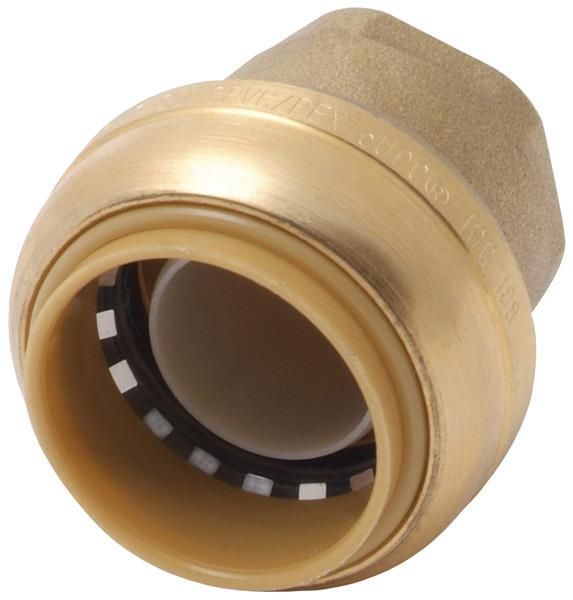

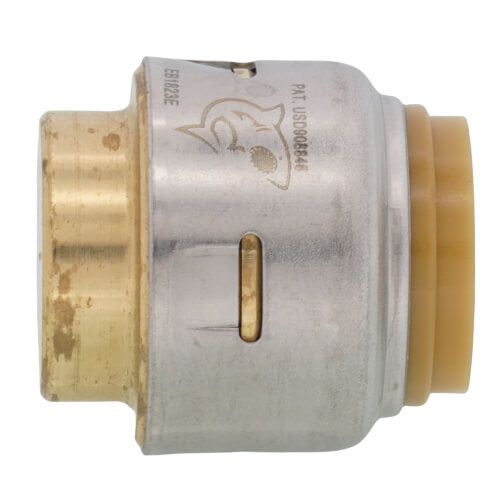

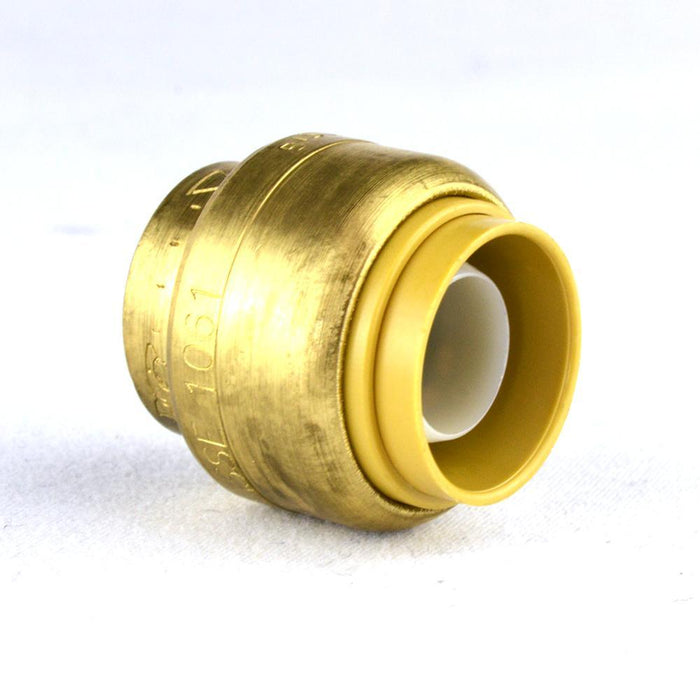

The SHARKBITE U514 EndStop plugs the end of PEX, copper, CPVC and PE-RT pipe. Its push-to-connect design allows for quick installation and removal, ideal for tight spaces. It reduces installation errors with faster install time and ease of use. The fitting is rated to 200°F and 250 psi.

• Connects PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
• High-performance DZR lead-free brass body
• No special tools, crimping, soldering or glue required

Product Highlights

This push-to-connect end stop is easy to install and remove, and can be rotated after installation. Suitable for use on wet lines and can be pressure tested immediately.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U514

Technical Specifications

• Size: 1/2"
• Lead Free: Yes
• Material: Brass
• PEX Size: 1/2"
• Insertion Depth: 15/16"
• Application: Heating
• Warranty: 25 Year
• Max Pressure (PSI): 200
• Standards Met: NSF
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: PEX
• Max Temp (F): 200°F
• MPN: U514
• Series: Sharkbite®
• Tube Size: 1/2"
• Construction: Certified and listed to ASSE 1061/NSF 61; listed by IAPMO; meets UPC, IPC and cUPC requirements
• Specifications: No soldering, clamps, unions or glue needed; integral tube liner for PEX installations; easy to disconnect if needed; can be rotated after assembly for easier installation in tight spaces
• Safety Notes: For water, dry, clean air or 100% glycol solutions only
