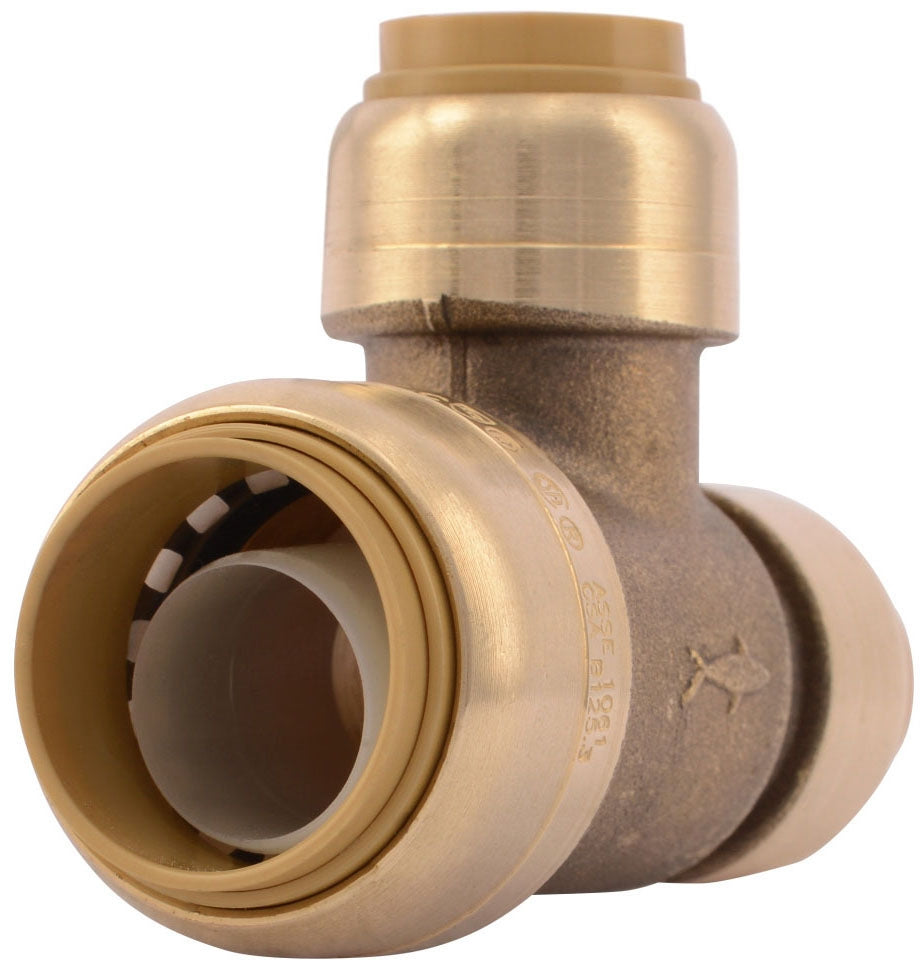

Sharkbite U454LF Reducing Tee 3/4 Inch x 1/2 Inch x 1/2 Inch

Product Description

The SHARKBITE U454LF reducing tee is designed to simplify plumbing projects with its push-to-connect design. Constructed from DZR forged brass, this fitting allows for quick and easy connections between different-sized pipes. It is suitable for potable water and hydronic heating applications.

• Instant push-fit connection for increased ease-of-use.
• No soldering, clamps, unions, or glue required.
• Compact, robust, and lead-free DZR brass body.

Product Highlights

This reducing tee fitting is certified to 200 PSI and 200 degrees F, ensuring durability and quality for various plumbing needs.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U454LF
• Country of Origin: Import

Technical Specifications

• Type: Reducing
• Nominal Size: 3/4 Inch x 1/2 Inch x 1/2 Inch
• End Connection: Push-to-Connect x Push-to-Connect x Push-to-Connect
• Material: DZR Brass (Body), EPDM (O-Ring)
• Finish: Natural Brass/Chrome Plated
• Pressure Rating: 200 PSI
• Temperature Rating: 200 Deg F
• Application: Potable Water Supply and Hydronic Heating Water Distribution
• Applicable Standard: NSF/ANSI 14/61/372, ASSE 1061, IAPMO, CUPC, IPC
• Additional Information: Lead-Free; Insertion Depth 1.125 Inch; Grab Ring Material Stainless Steel; Tube Support Liner Material Polysulfone
• Manufacturer Name: SharkBite
• Manufacturer Part Number: U454LF
• UNSPSC Code: 40183102
• Category: Plumbing & Bath / Kitchen Fixtures
• COMMODITY CODE DESCRIPTION Level 5: Push to Connect Tube Fittings
• Material Specification: ASTM F876
• End Style: Push-Fit
• Fitting/Connector Type: Tee
• Length: 2.92 in
• Connection Size: 3/4 x 1/2 x 1/2 in CTS
• Connection Type: Push-to-Connect
• Fitting Size: 3/4 x 1/2 x 1/2 in
• Fitting Type: Reducing Pipe Tee
• Water Connection: 1/2", 3/4"
• Approved for Commercial Use: Yes
• Low Lead Compliant: Yes
• Item: Reducing Tee
• Tube Size: 3/4 in x 1/2 in x 1/2 in
• For Tube OD: 3/4 in x 1/2 in x 1/2 in
• Temp. Range: 0 Degrees to 200 Degrees F
• Fitting Shape: Tee
• Max. Pressure: 200 psi
• Gasket Material: EPDM
• Fitting Material: Brass
• Special Features: Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue
• End Connection Type: Push-to-Connect
• Fitting Body Material: Brass
• Tube Fitting Material: DZR Brass
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: Push-Fit
• Basic Pipe Fitting Shape: Tee
• Compatible Tube Material: Copper, CPVC, HDPE, PE-RT, PEX
• For Tube Outside Diameter: 1/2 in, 3/4 in
• Maximum Operating Pressure: 200 psi
• Basic Pipe Fitting Material: Metal
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Connection Type: Push-Fit
• Maximum Operating Temperature: 200 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Push-to-Connect
• Fitting Side B Connection Type: Push-to-Connect
• Fitting Side C Connection Type: Push-to-Connect
• Fitting Side A Tube Outer Diameter: 3/4 in
• Fitting Side B Tube Outer Diameter: 1/2 in
• Fitting Side C Tube Outer Diameter: 1/2 in
• Includes Pre-Applied Thread Sealant: No
• Size: 3/4 in. x 1/2 in. x 1/2 in., 6 Pack
• Item dimensions L x W x H: 2.9 x 2.11 x 1.36 inches
• Connector Type: Tee
• Exterior Finish: Brass
• Thread Type: NPT
