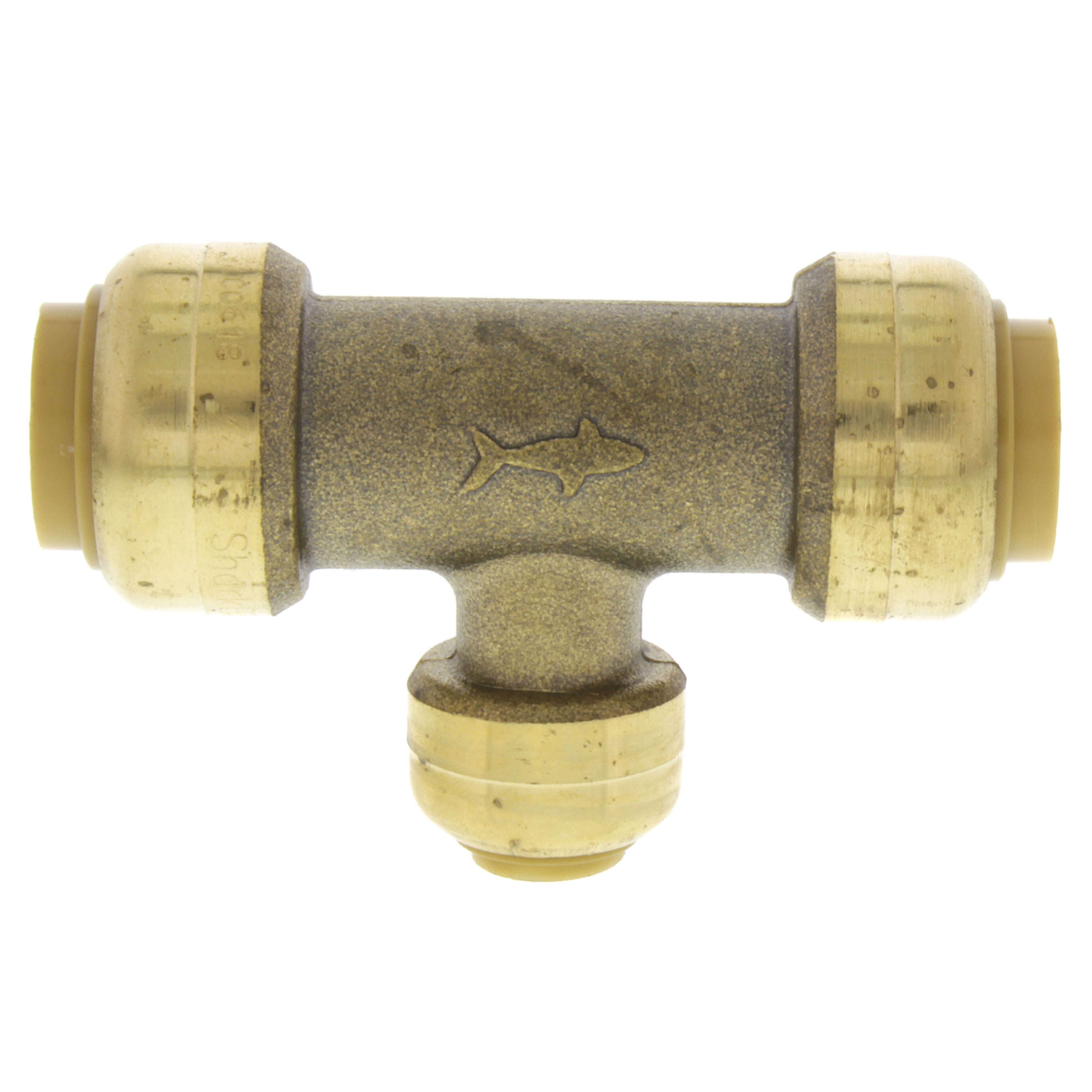

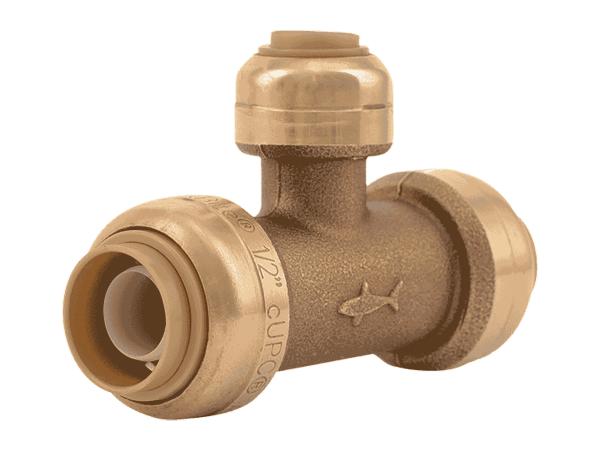

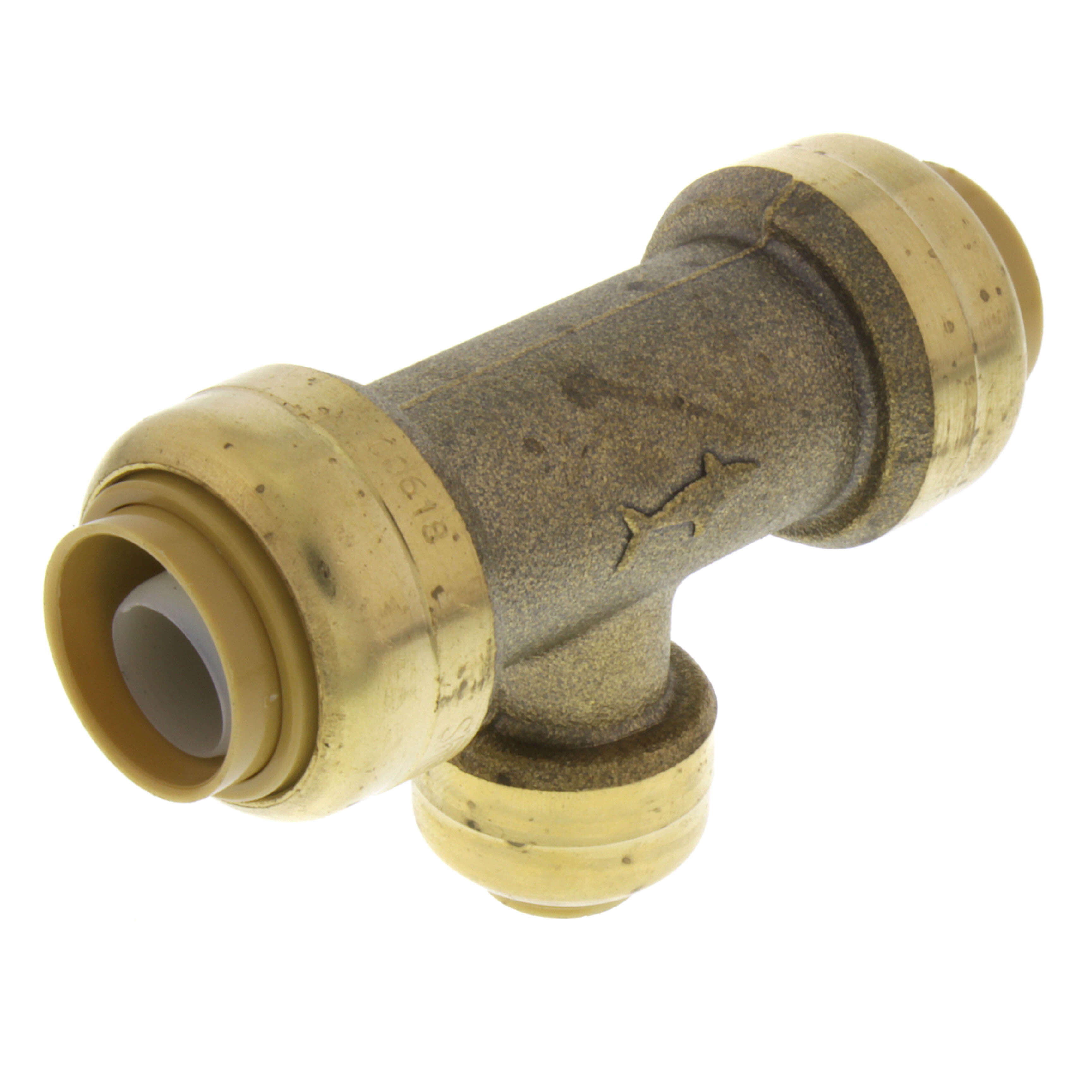

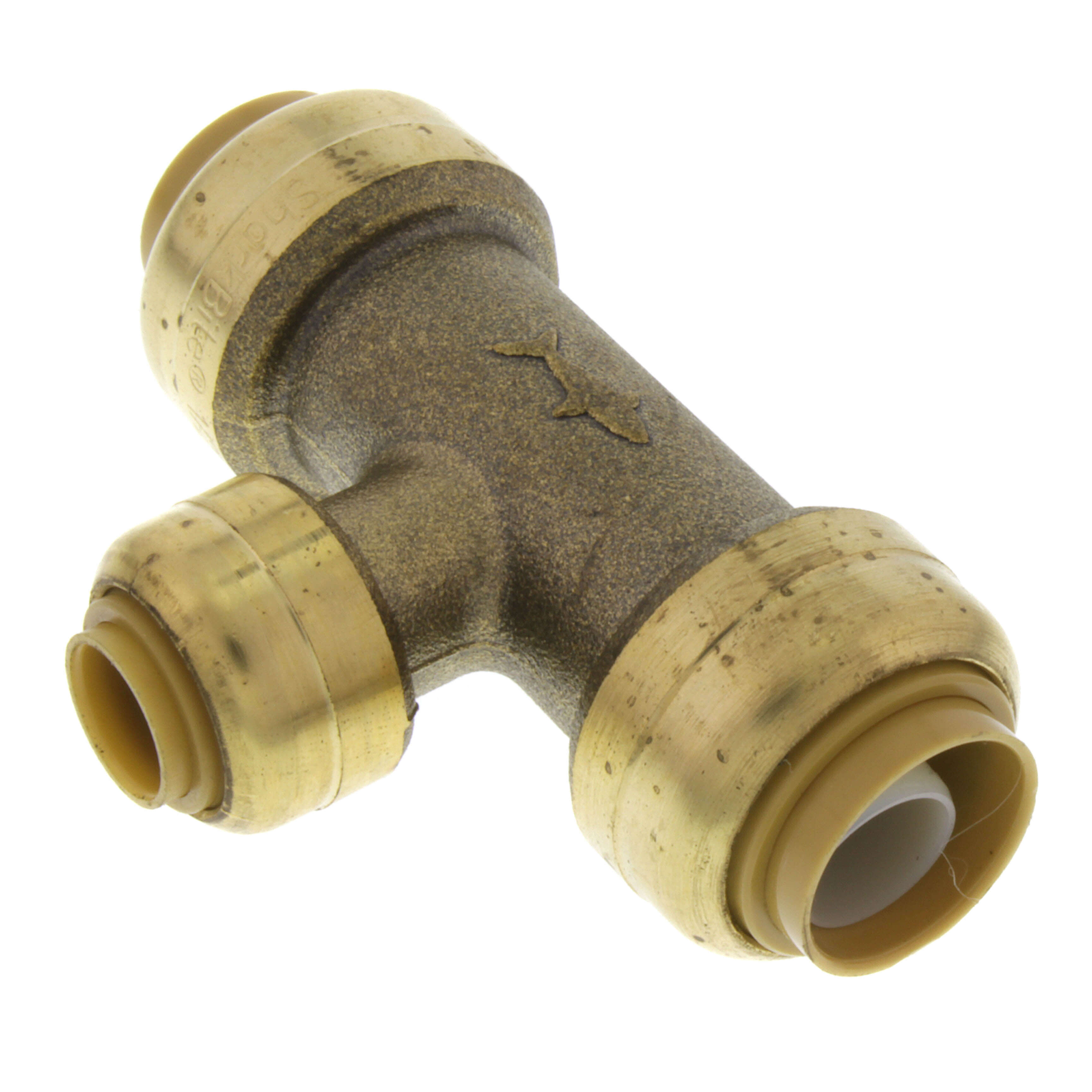

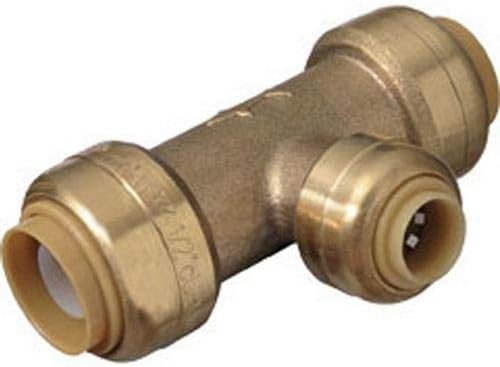

Sharkbite U359LF Reducing Tee 1/2 inches x 1/2 inches x 1/4 inches

Product Description

The SHARKBITE U359LF reducing tee is designed to simplify pipe installation, joining different size pipes together. It provides an instant push-fit connection, increasing ease-of-use, with no soldering required. This fitting is certified to 200 PSI and 200 degrees F (93 degrees C). It fits OD controlled copper, CPVC, or PEX pipe.

• No soldering, gluing, or crimping required.
• Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe.
• Certified to 200 PSI and 200 degrees F (93 degrees C).

Product Highlights

The SharkBite reducing tee features a robust DZR brass body and is approved for underground and behind walls without access panels. It is designed for hydronic heating and potable water distribution.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U359LF

Technical Specifications

• Size: 1/2" x 1/2" x 1/4"
• Material: Brass
• PEX Size: 1/2", 1/4"
• Lead Free: Yes
• Application: Heating
• Max Temp (F): 200°F
• Standards Met: NSF
• Insertion Depth: 15/16", 13/16"
• Max Pressure (PSI): 200
• Tubing Compatibility: CPVC, OD Controlled Copper, PEX
• Fitting System Compatibility: Push Fit
• Number of Pieces: 1
• Model Number: U359LF
• Manufacturer: SharkBite
• UPC: 697285453036
• Item Type Name: Coupling
• Included Components: Body, Grab ring, O-ring, Tube support liner
• Unit Count: 1 Count
• Connector Type: Tee
• Exterior Finish: Brass
• Length: 2.85
• Width: 1.85
• Height: 2.85
