Product Description

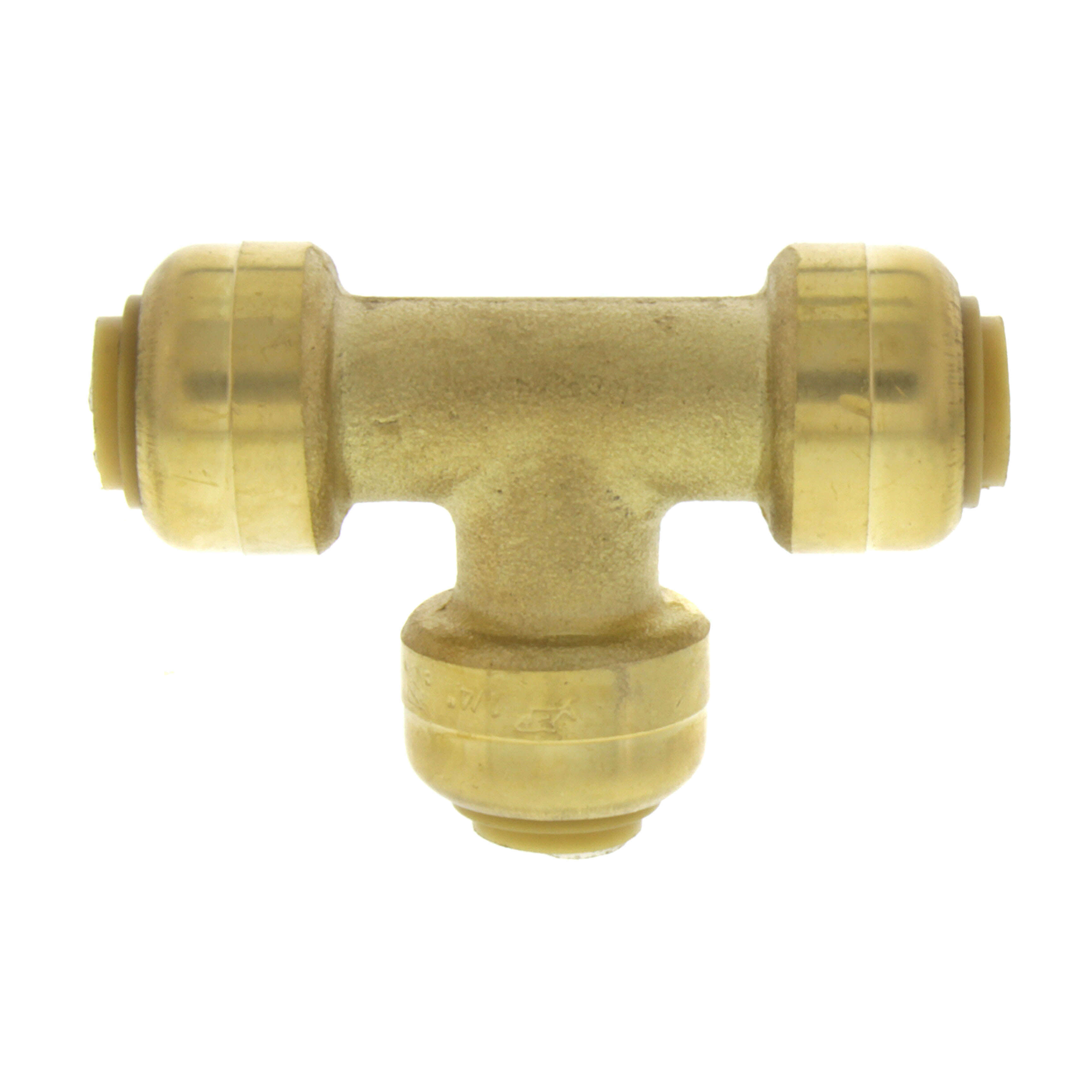

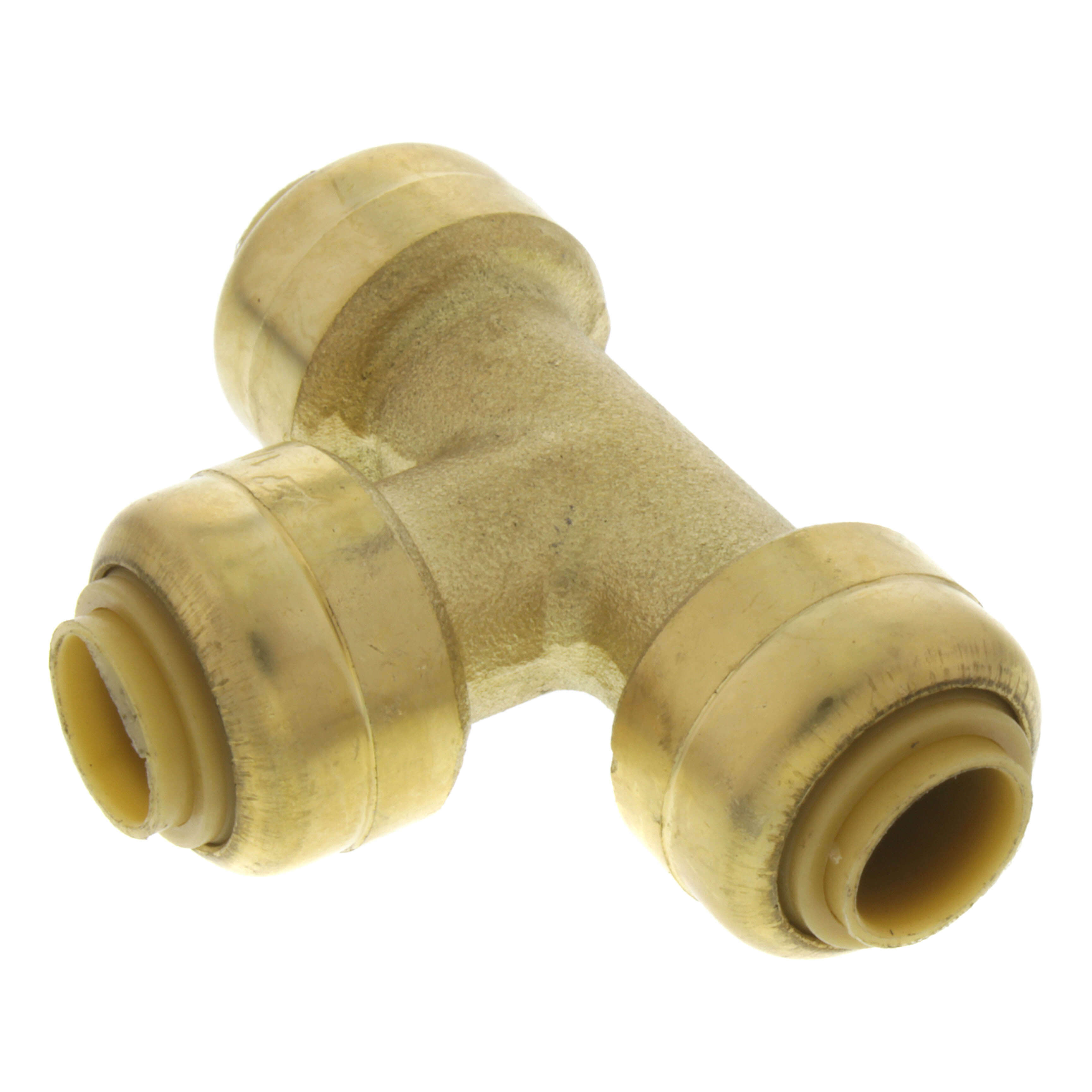

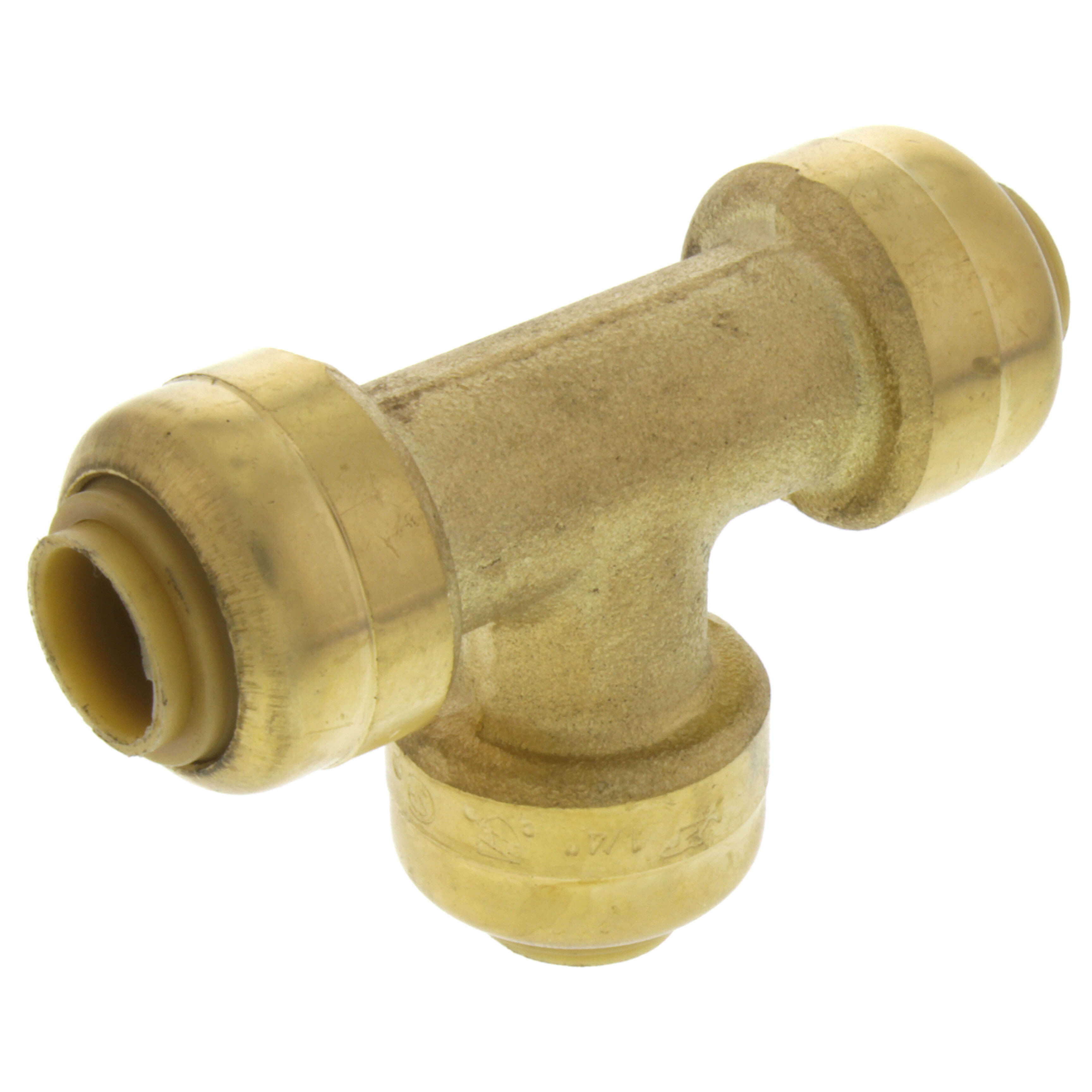

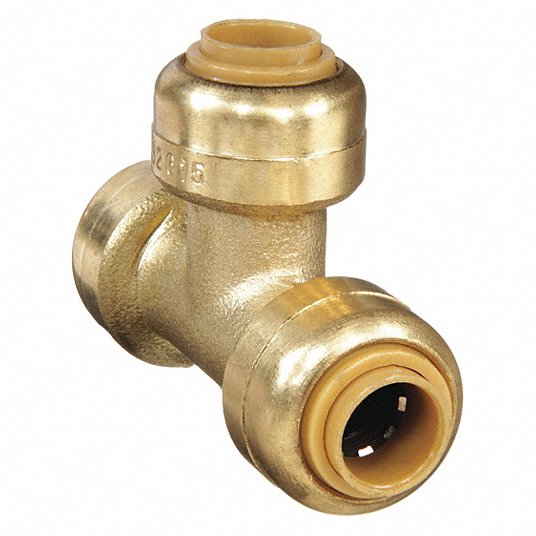

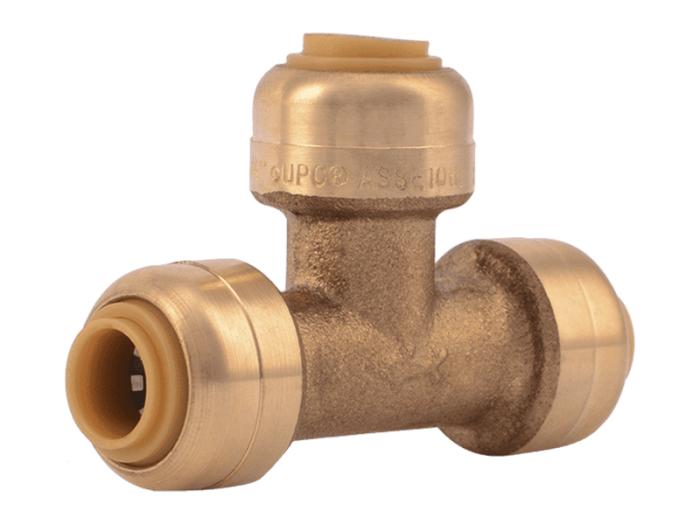

The SHARKBITE U358LF is a natural brass tee with a 1/4 in CTS, designed with push-to-connect functionality and lead-free construction. Its innovative design ensures quick and easy installation when joining same-size pipes, making it ideal for tight spaces. Faster install time and ease of use reduces installation errors.
- Natural Brass Tee
- 1/4 in CTS
- Push-to-Connect
- Lead-Free
Product Highlights
This tee fitting is compatible with PEX, copper, CPVC, PE-RT and HDPE pipe and requires no special tools, crimping, glue or soldering for installation.
Product Information
Standard Information
-
Brand: SHARKBITE
-
Manufacturer Part Number: U358LF
-
Country of Origin: Australia
Technical Specifications
-
Connection Size: 1/4 in CTS
-
Connection Type: Push-to-Connect
-
Finish: Natural Brass/Polished Chrome
-
Item: Tee
-
Length: 2.3 in
-
Material: Brass
-
Pressure Rating: 200 psi
-
Temperature Rating: 200 deg F
-
Max. Pressure: 200 psi
-
Gasket Material: EPDM
-
Special Features: Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue
-
End Connection Type: Push-to-Connect
-
Fitting Body Material: Brass
-
Tube Fitting Material: DZR Brass
-
Specific Fitting Shape: Tee
-
Fitting Connection Type: Push-Fit
-
Basic Pipe Fitting Shape: Tee
-
Compatible Tube Material: Copper; CPVC; HDPE; PE-RT; PEX
-
For Tube Outside Diameter: 1/4 in
-
Maximum Operating Pressure: 200 psi
-
Basic Pipe Fitting Material: Metal
-
Specific Pipe Fitting Shape: Tee
-
Pipe Fitting Connection Type: Push-Fit
-
Maximum Operating Temperature: 200 Degrees F
-
Minimum Operating Temperature: 0 Degrees F
-
Fitting Side A Connection Type: Push-to-Connect
-
Fitting Side B Connection Type: Push-to-Connect
-
Fitting Side C Connection Type: Push-to-Connect
-
Fitting Side A Tube Outer Diameter: 3/8 in
-
Fitting Side B Tube Outer Diameter: 1/4 in
-
Fitting Side C Tube Outer Diameter: 1/4 in
-
Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Not Included
-
Country of Origin (subject to change): Australia
-
Size: 1/4" x 1/4"
-
PEX Size: 1/4"
-
Lead Free: Yes
-
Application: Heating
-
Max Temp (F): 200
F
-
Standards Met: NSF
-
Insertion Depth: 13/16"
-
Tubing Compatibility: OD Controlled Copper, PEX, CPVC
-
Fitting System Compatibility: Push Fit
-
Pipe Size: 1/4 in. (3/8 in. OD) x 1/4 in. (3/8 in. OD) x 1/4 in. (3/8 in. OD)
-
Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101, UL 263
-
Dimensions: 3/8 in OD x 2.3 in L
-
Domestic/Import: Import
-
End Style: Push-Fit
-
Nominal Size: 1/4 In
-
Model: U358LF
-
MPN: U358LF
-
Brand: Sharkbite
-
UPC: 697285466258
-
Category: Home & Garden > Home Improvement > Plumbing & Fixtures > Fittings
-
California Prop 65 Warning: Yes
-
Hydraulics, Pneumatics, Pumps & Plumbing: Fittings & Adapters
-
Fitting Shape: Tee with Swivel (Run x Run x Branch)
-
Fitting Material: Brass 316 DZR Brass
-
System of Measurement: Imperial
-
Temperature Range: 33
F to 200
F
-
Fitting Side A Copper Tube Size: 1/4 in
-
Overall Length: 2-5/16 in
-
Color: Brass
-
Standards: ASSE 1061; ASTM E119; ASTM E84; CAN/ULC S101; CAN/ULC S102.2; CSA B125.3; NSF/ANSI 372; NSF/ANSI/CAN 61; UL 263
-
UNSPSC: 40142605
-
For Tube OD: 1/4 in x 1/4 in x 1/4 in
-
Temp. Range: 0 Degrees to 200 Degrees F
