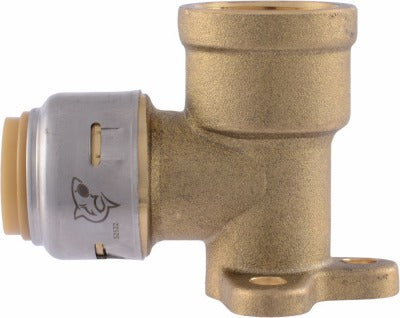

Sharkbite U334LFA 1/2 Inch Drop Ear Elbow Push Fit Lead Free

Product Description

The SHARKBITE CASH ACME U334LFA is a 1/2 inch push-fit drop ear elbow with a 1/2 inch female iron pipe (FIP) outlet, constructed from dezincification-resistant (DZR) brass. It ships with an integral tube liner already included. The fitting installs without solvents, clamps, or open flame, making it a fast, reliable connection for residential and light commercial plumbing rough-in and repair work. It is rated to 200 psi and 200 degrees F, certified lead free under Federal Law 111-380, and design-certified to ASSE 1061 and NSF 61 standards. Licensed plumbers and experienced pipefitters are the primary installers.

The U334LFA is used in potable water and hydronic water distribution systems. It is compatible with copper tubing (copper tube size), CPVC, and PEX pipe. The drop ear configuration allows the fitting to be surface-mounted or wall-bracketed, positioning the FIP outlet flush for a fixture supply connection. It is also certified for underground applications as a manufactured joint, eliminating the requirement for an access panel at that connection point. This fitting is listed with IAPMO and meets UPC, IPC, and CUPC requirements.

Key Features

• Push-fit connection — no soldering, no crimping tools, no clamps required
• Integral tube liner included for PEX and CPVC applications
• DZR brass construction resists dezincification in high-chloride water conditions
• Rated to 200 psi and 200 degrees F
• Certified for underground installation as a manufactured joint — no access panel required
• Lead free compliant per Federal Law 111-380; certified to ASSE 1061 and NSF 61
• Listed with IAPMO; meets UPC, IPC, and CUPC requirements

Compatibility

Compatible with copper tubing (copper tube size), CPVC, and PEX pipe. Certified for use on potable and hydronic water distribution systems. The 1/2 inch FIP outlet connects to standard female iron pipe threaded fittings and fixture supplies.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local code requirements, including UPC, IPC, or CUPC as adopted. Shut off the water supply and depressurize the line before cutting and fitting. Ensure pipe ends are cut square, deburred, and inserted to the full depth mark before the push-fit connection is complete. For PEX and CPVC connections, confirm the integral tube liner is seated properly before insertion.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
