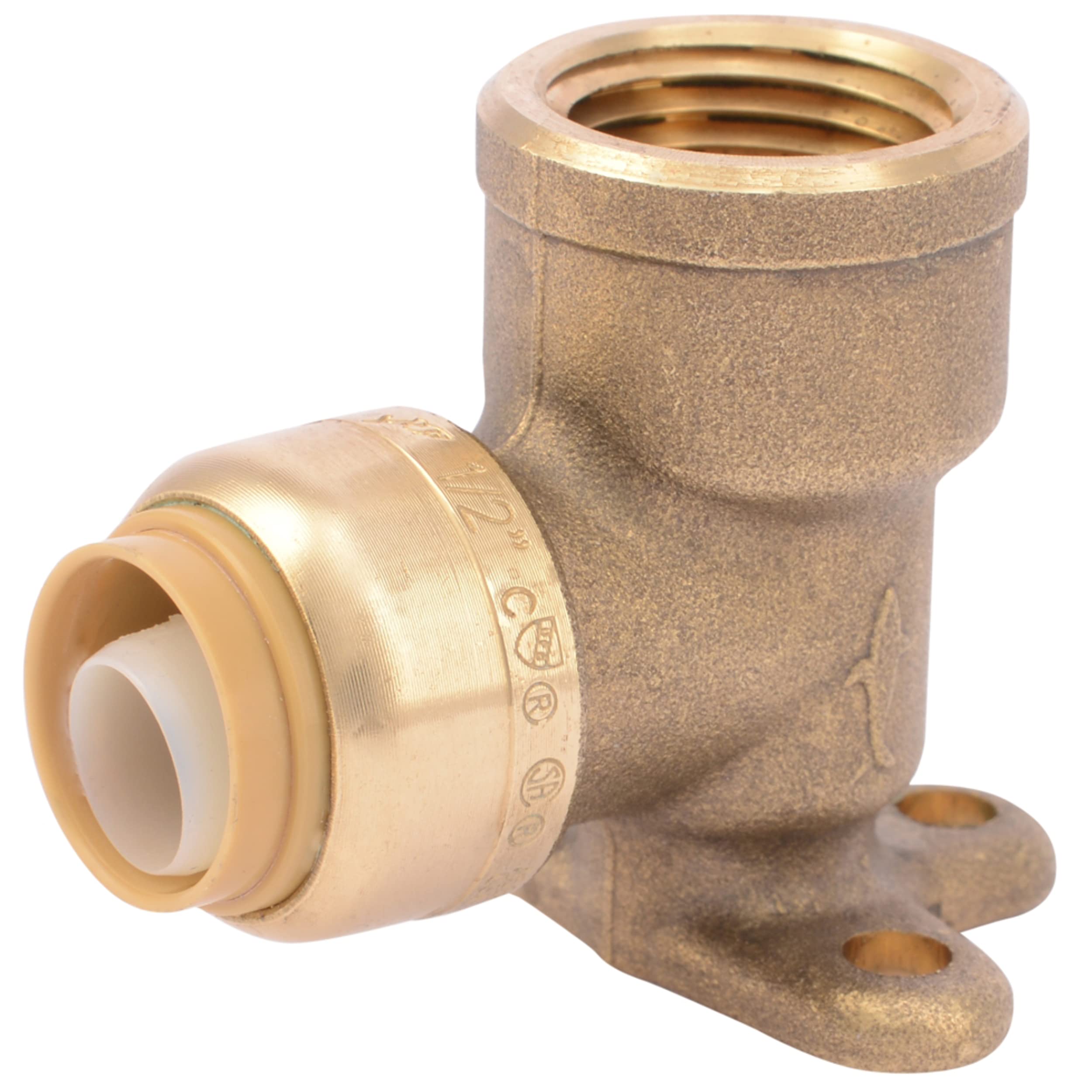

Sharkbite U334LF Drop Ear Elbow 1/2 Inch

Product Description

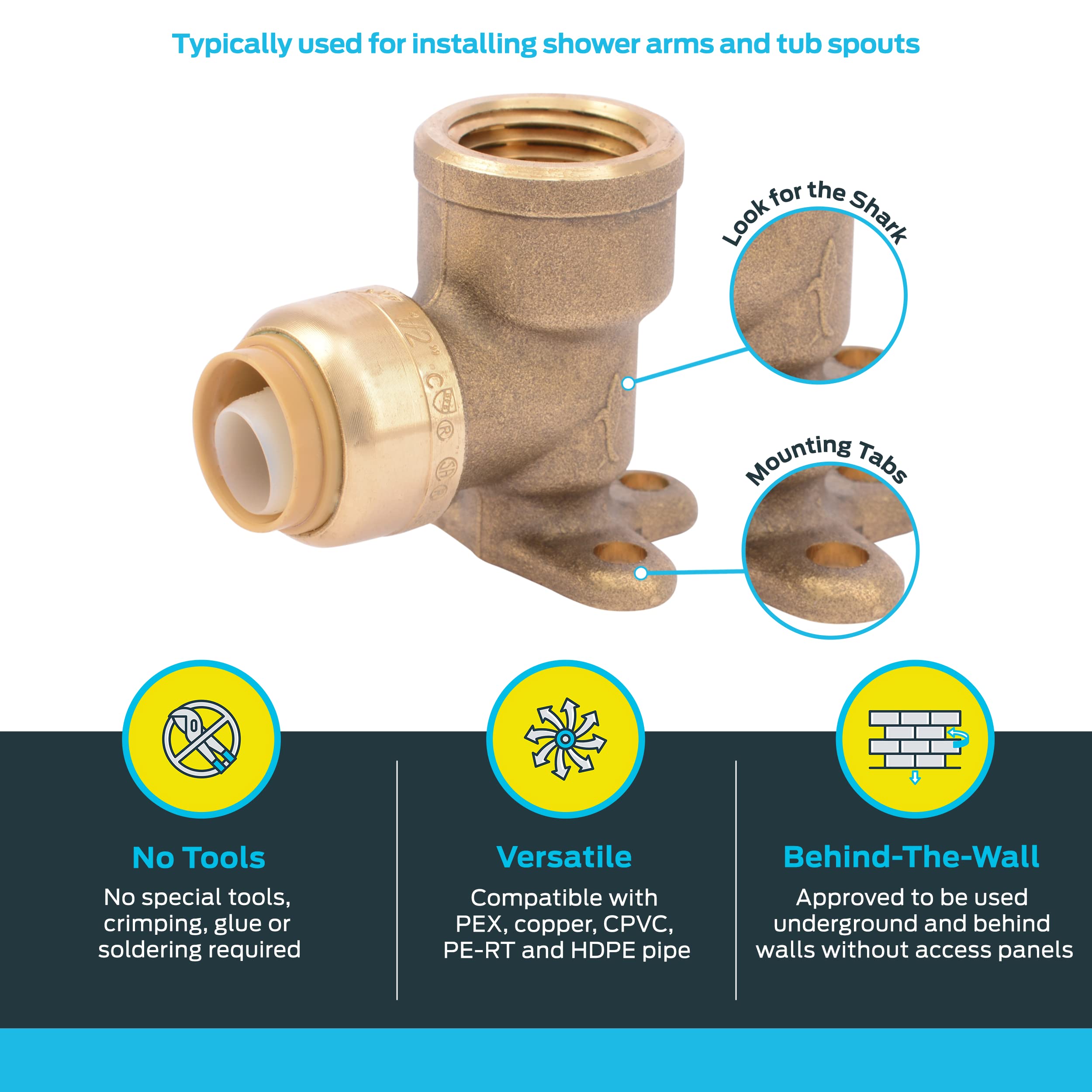

The SHARKBITE U334LF drop ear elbow is designed for making 90-degree connections and transitioning to threaded pipes. This 1/2 inch fitting features a push-to-connect design for easy installation. It is commonly used for installing shower arms and tub spouts. No soldering, clamps, or glue required.

• Instant push-fit connection for increased ease-of-use
• No soldering, clamps, unions or glue required
• Integrated design means no loose components, ensures secure, reliable connection

Product Highlights

Compact and robust, the SHARKBITE U334LF ensures a secure and reliable connection for potable water and hydronic heating systems.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U334LF
• Country of Origin: Australia

Technical Specifications

• Manufacturer Part Number: U334LF
• Type: Drop Ear
• Angle: 90 Degree
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• End Connection: Push-to-Connect x Female Threaded
• Material: DZR Brass (Body), EPDM (O-Ring)
• Finish: Natural Brass/Chrome Plated
• Pressure Rating: 200 PSI
• Temperature Rating: 200 Deg F
• Application: Potable Water, Hydronic Heating Water Distribution
• Applicable Standard: NSF/ANSI 14/61/372, ASSE 1061, IAPMO, CUPC, IPC
• Lead-Free: Yes
• Insertion Depth: 0.938 Inch
• Grab Ring Material: Stainless Steel
• Tube Support Liner Material: Polysulfone
• Fitting Type: Drop Ear Elbow
• Connection Type: Push-to-connect
• Compatible Pipe Materials: PEX, CPVC, PE-RT, SDR-9 HDPE, and copper pipes
• Maximum Temperature: 200 degrees F
• Maximum Pressure: 200 PSI
• Size: 1/2 in. x 1/2 in.
• End Style: Push-Fit x FNPT
• Nominal Size: 1/2 in
• Length: 1.77 in
• Fitting/Connector Type: 90 deg Elbow
• Mfg Standards/Approvals: ASSE 1061, CSA B125.3, IAPMO/IPC/cUPC/UPC Listed, NSF/ANSI 372-2010/14/61
• Connection Size: 1/2 in CTS
• Item Name: Drop Ear Elbow
• Thread Size: 1/2"
• Thread Type: Female
• Max Temp (F): 200°F
• Standards Met: NSF
• Max Pressure (PSI): 200
• Tubing Compatibility: PEX, OD Controlled Copper, CPVC
• Fitting System Compatibility: Push Fit
• Series: Series U
• Working Pressure: 200 psi
• Tube Size: 1/2 in
• For Tube OD: 1/2 in
• Temp. Range: 0 Degrees to 200 Degrees F
• Fitting Shape: Elbow
• Max. Pressure: 200 psi
• Gasket Material: EPDM
• Fitting Pipe Size: 1/2 in
• Resistance Properties: Corrosion-Resistant
• Tube Fitting Material: DZR Brass
• Specific Fitting Shape: 90 Degrees Drop Ear Elbow
• Fitting Connection Type: Push-Fit
• Basic Pipe Fitting Shape: Elbow
• Compatible Tube Material: Copper, CPVC, HDPE, PEX, Polyethylene
• Fitting Side B Pipe Size: 1/2 in
• For Tube Outside Diameter: 1/2 in
• Maximum Operating Pressure: 200 psi
• Basic Pipe Fitting Material: Metal
• Specific Pipe Fitting Shape: 90 Degree Drop Ear Elbow
• Pipe Fitting Connection Type: Tube
• Maximum Operating Temperature: 200 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Push-to-Connect
• Fitting Side B Connection Type: FNPT
• Fitting Side A Tube Outer Diameter: 1/2 in
• Includes Pre-Applied Thread Sealant: No
