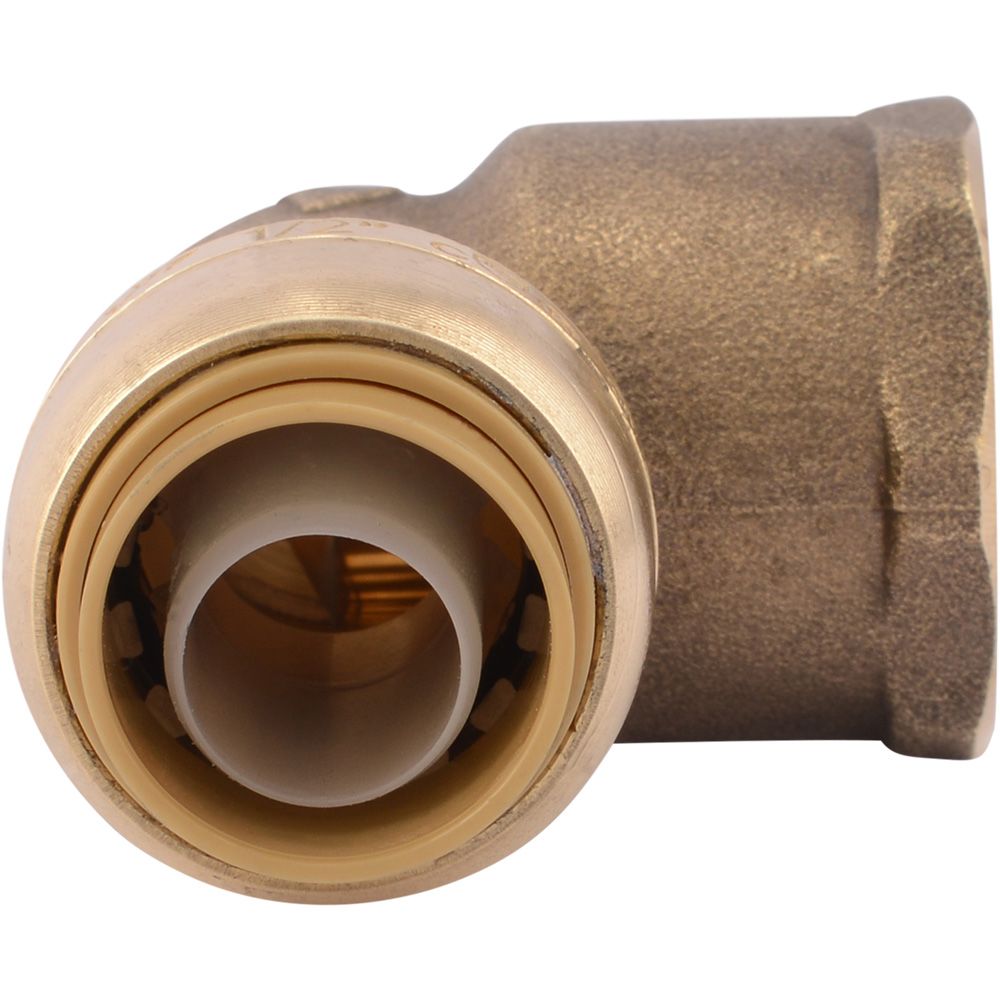

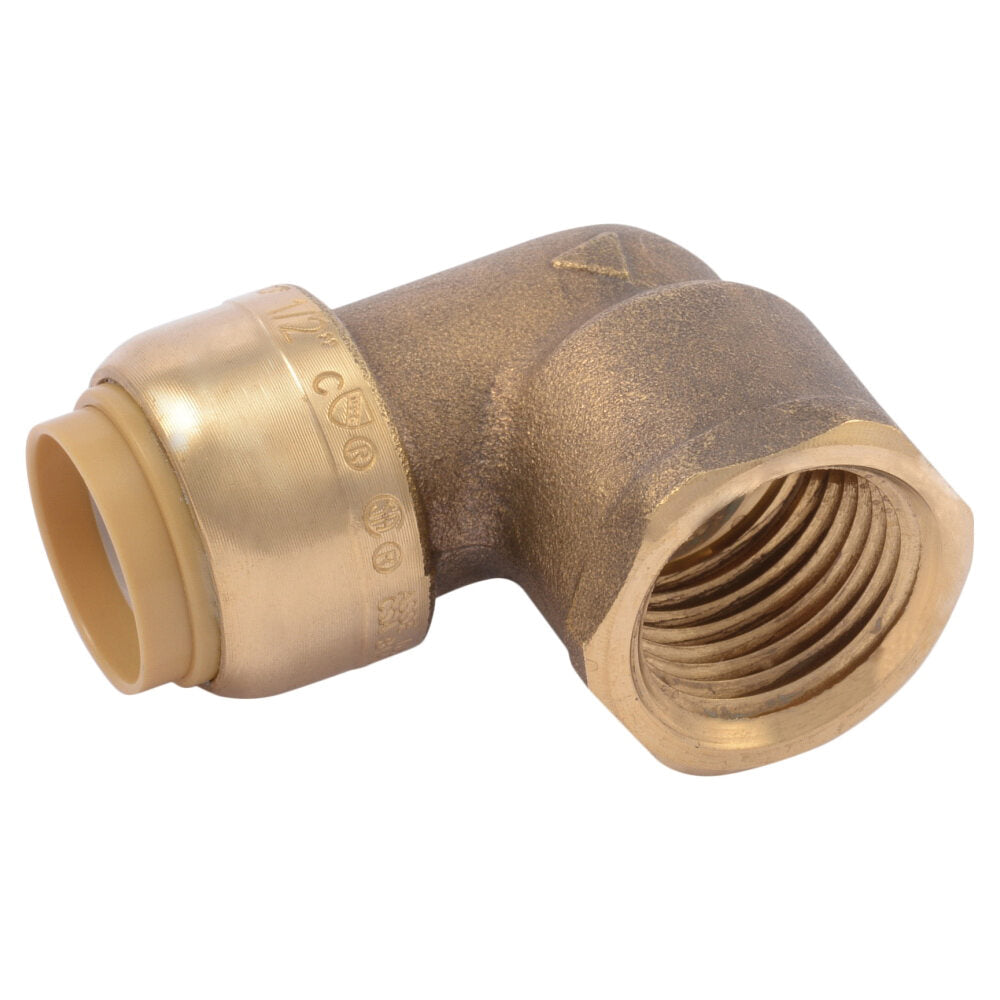

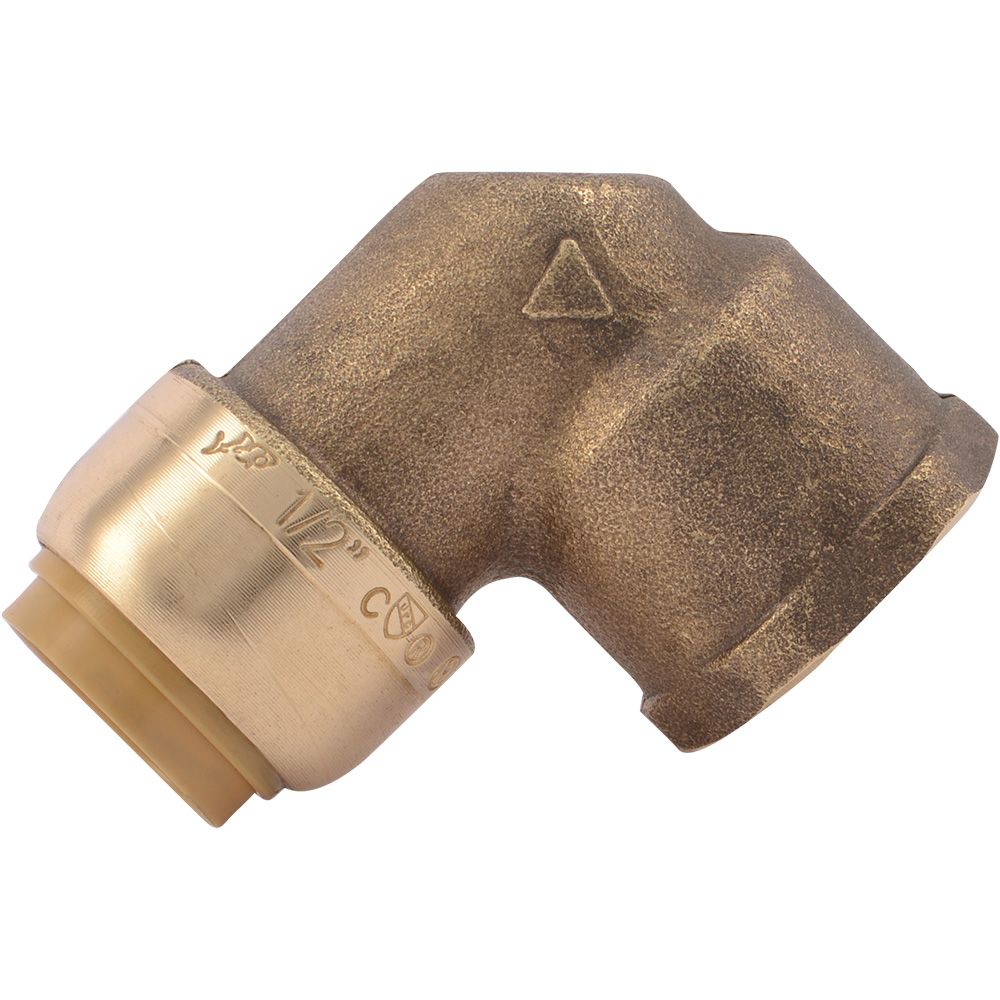

Sharkbite U308LF Brass Push Female Adapter Elbow Coupling

Product Description

The SharkBite U308LF Brass Push Female Adapter Elbow Coupling is designed to make a 90° transition between PEX, copper, CPVC, PE-RT or HDPE pipe to an FNPT threaded connection. This elbow fitting features a push-to-connect design for quick and easy installation. It is suitable for potable water and hydronic heating applications.

• Used to make a 90° transition between PEX, copper, CPVC, PE-RT or HDPE pipe to an FNPT threaded connection.
• No soldering, clamps, unions, or glue required.
• Fittings certified to 200 psi and 200 deg F (93 deg C).

Product Highlights

The SharkBite U308LF allows for easy connection of different pipe types with a secure, leak-free seal. Its robust brass body ensures durability and corrosion resistance.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U308LF
• Country of Origin: Australia

Technical Specifications

• Color: Brass
• Style: Brass Push Female Adapter Elbow
• Finish: Brass
• Material: Brass
• Thread Type: Female
• Connector Type: Elbow
• Number of Pieces: 1
• Measurement System: Inch
• Batteries Included?: No
• Batteries Required?: No
• Included Components: Body, O-ring, Grab ring, Tube support liner
• End Style: Push-Fit x FNPT
• Fitting/Connector Type: 90 deg Elbow
• Mfg Standards/Approvals: ASSE 1061, CSA B125.3, IAPMO/IPC/cUPC/UPC Listed, NSF/ANSI 372-2010/14/61
• Nominal Size: 1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Angle: 90 deg
• Connection Size: 1/2 in CTS
• Connection Type: Female (FPT)
• Fitting Size: 1/2"
• Size: 1/2"
• Application: Plumbing, Heating
• Thread Size: 1/2"
• Max Temp (F): 200°F
• Standards Met: NSF
• Insertion Depth: 15/16"
• Max Pressure (PSI): 200
• Tubing Compatibility: OD Controlled Copper, CPVC, PEX
• Type: Female
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• End Connection: Push-Fit x Female Threaded
• Material Specification: ASTM F876
• Applicable Standard: NSF/ANSI 61, NSF 372, ASSE 1061, CSA B125.3, UPC, IPC, CUPC
• Lead-Free: true
• Includes: EPDM O-Ring, Stainless Steel Grab Ring, Polysulfone Tube Support Liner
• Used On: Copper/CPVC PEX Pipe
• Suitable for: PEX, PE-RT, CPVC, SDR-9 HDPE, and copper pipes
• Maximum Temperature: 200 degrees F
• Maximum Pressure: 200 PSI
• Fitting Type: 90 Degree Female Adapter Elbow
• Model / MPN: U308LF
• Product Group: Home Improvement
• Product Type: HOSE_PIPE_FITTING
• Inlet Connection: 1/2" FPT
• Outlet Connection: 1/2" FPT
• Push-In Size: 1/2" ID 5/8" OD
• Seal / O-Ring Material: EPDM
• Shape: Elbow
• Sub-Type: Female Elbow
• Ca Prop 65: 1
• Product Certification Standard: NSF/ANSI 61
• For Tube OD: 1/2 in
• Temp. Range: 0 Degrees to 200 Degrees F
• Fitting Shape: Elbow
• Gasket Material: EPDM
• Fitting Pipe Size: 1/2 in
• End Connection Type: Push-to-Connect, Threaded
• Fitting Thread Size: 1/2
• Fitting Body Material: Brass
• Release Ring Material: EPDM
• Resistance Properties: Corrosion-Resistant
• Tube Fitting Material: DZR Brass
• Specific Fitting Shape: 90 Degrees Elbow
• Fitting Connection Type: Push-Fit
• Basic Pipe Fitting Shape: Elbow
• Compatible Tube Material: Copper, CPVC, HDPE, PEX, Polyethylene
• Fitting Side B Pipe Size: 1/2 in
• For Tube Outside Diameter: 1/2 in
• Maximum Operating Pressure: 200 psi
• Basic Pipe Fitting Material: Metal
• Specific Pipe Fitting Shape: 90 Degree Elbow
• Pipe Fitting Connection Type: Tube
• Maximum Operating Temperature: 200 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Push-to-Connect
• Fitting Side B Connection Type: FNPT
• Fitting Side A Tube Outer Diameter: 1/2 in
• Includes Pre-Applied Thread Sealant: No
