Product Description

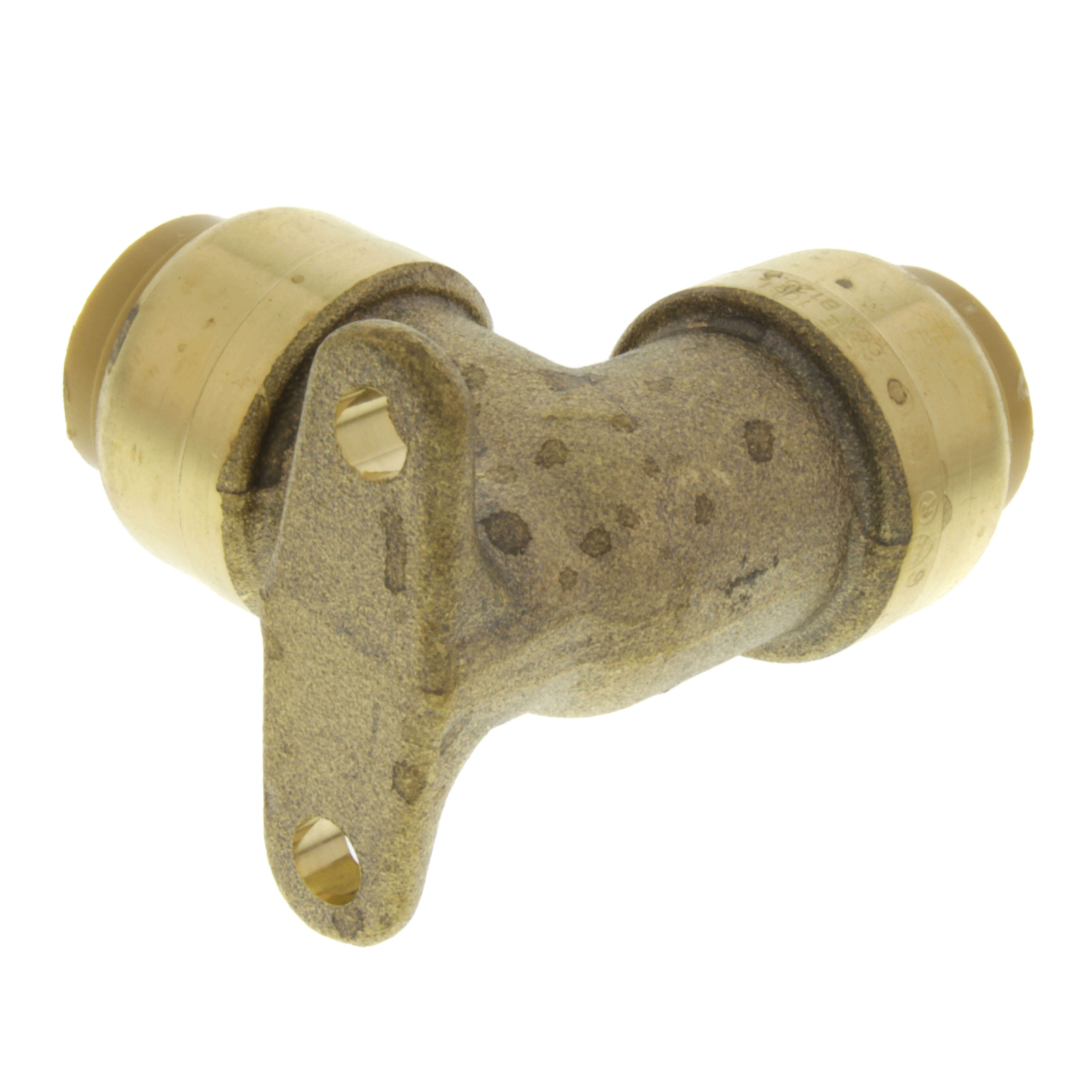

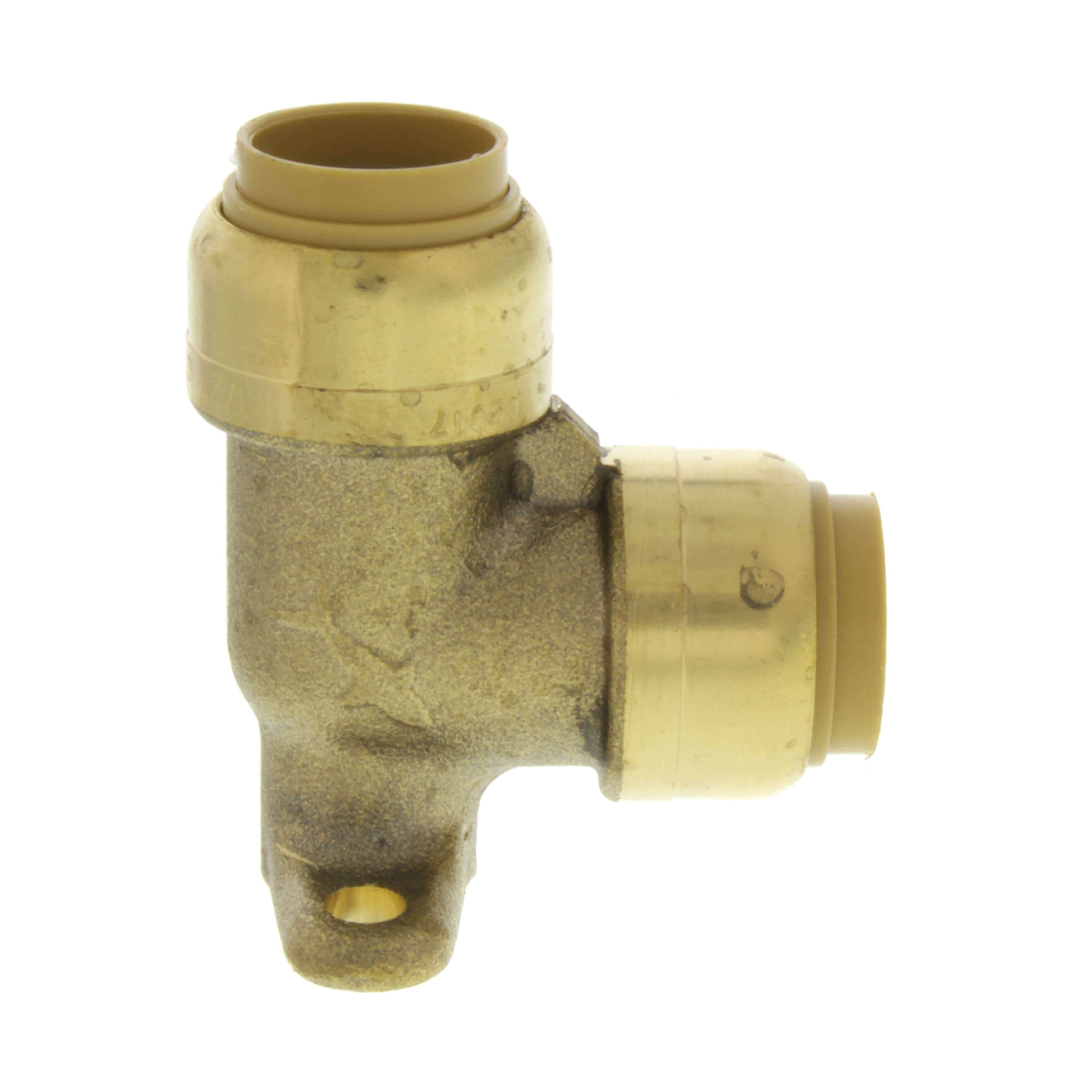

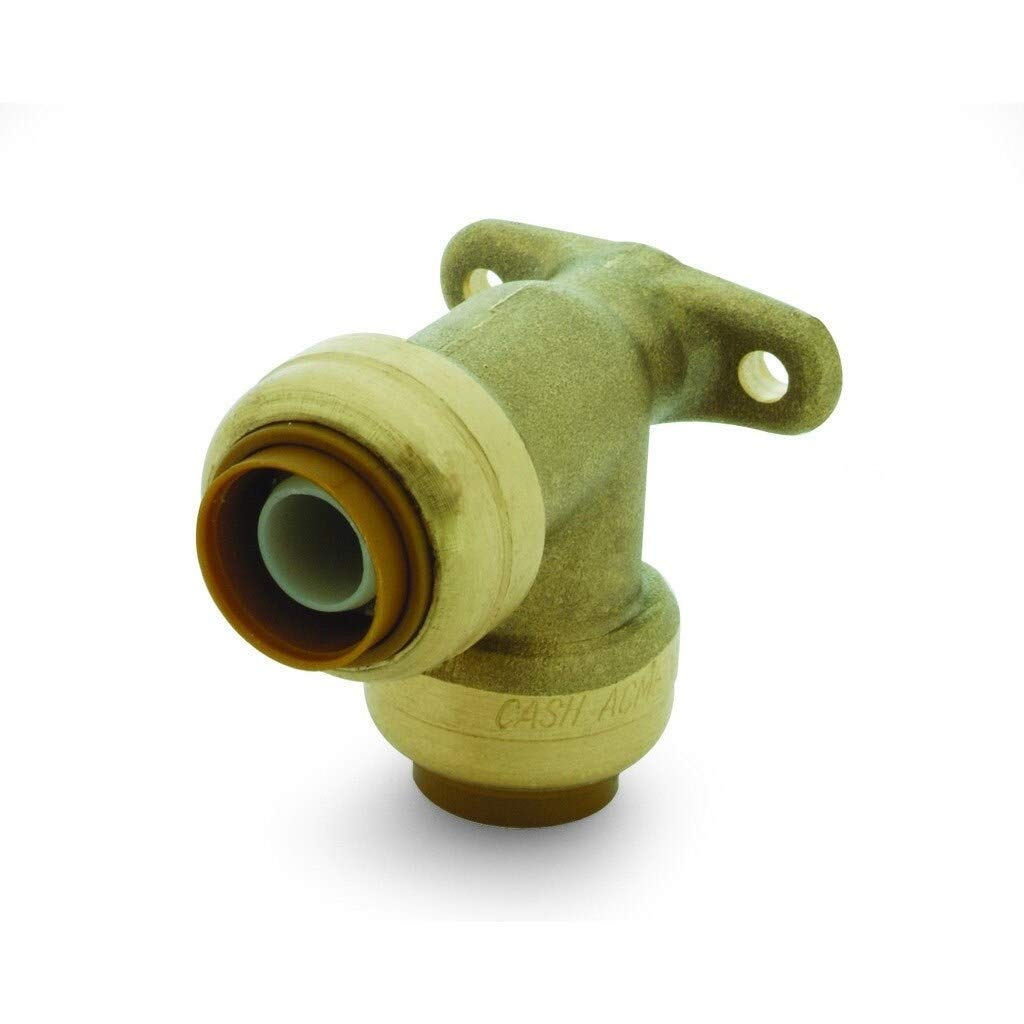

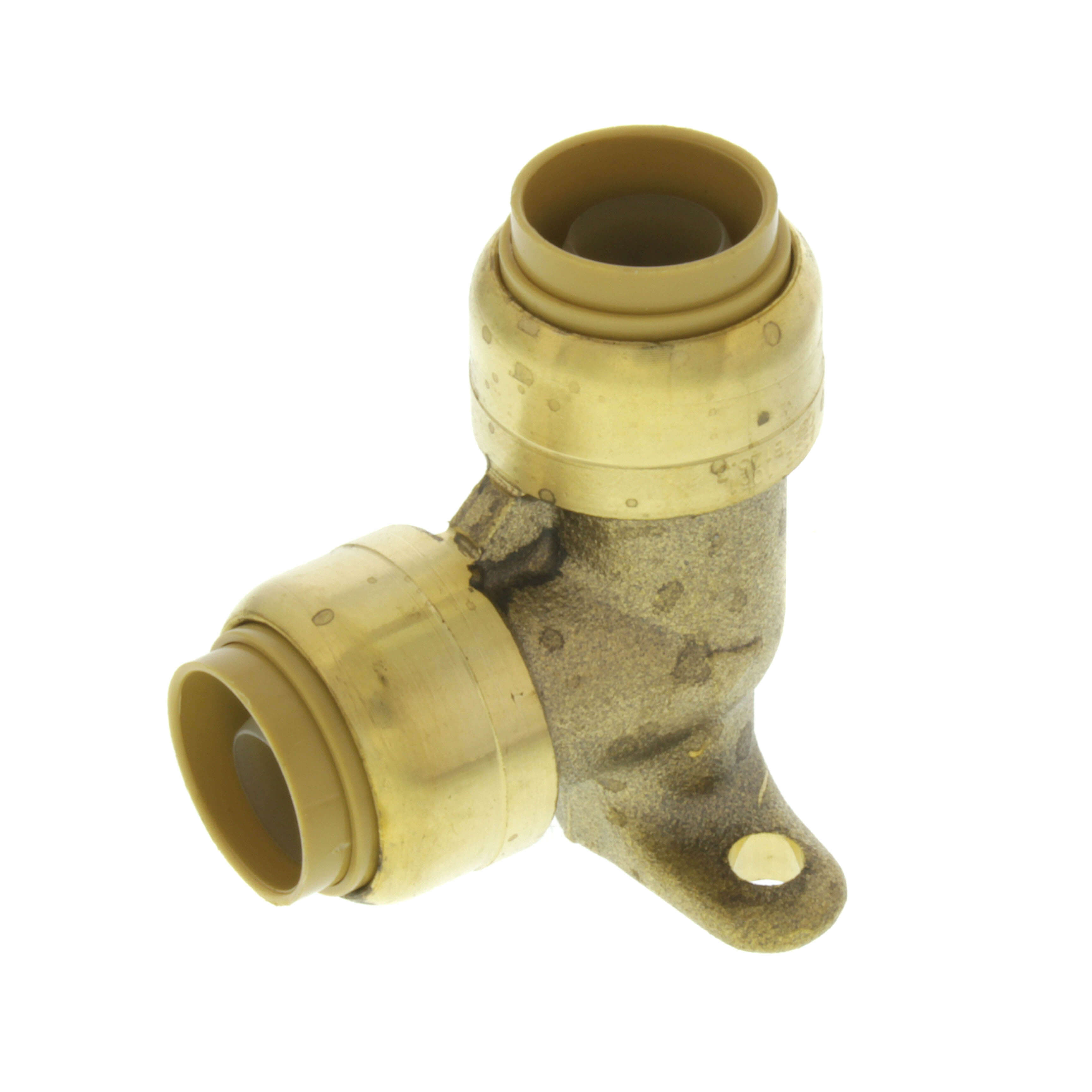

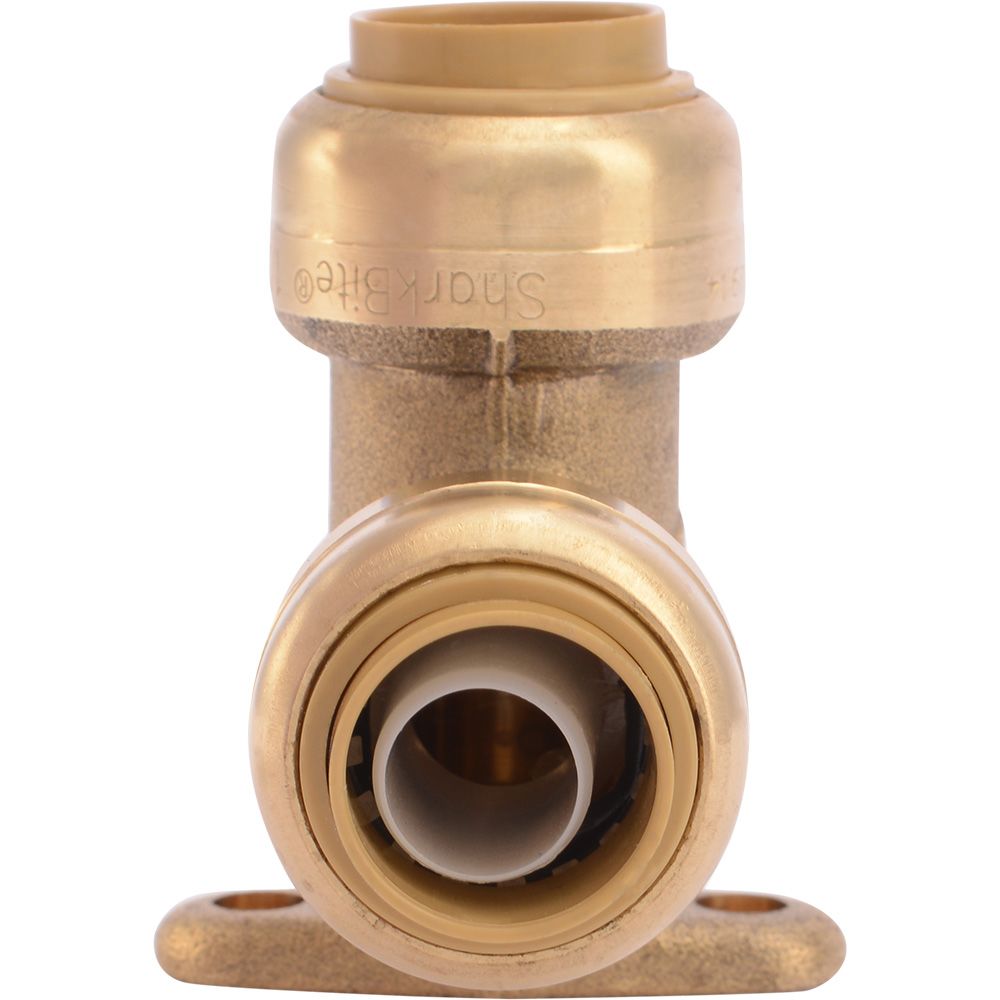

The SharkBite U249LF is a brass push-to-connect drop-ear elbow designed for potable water pipes. This plumbing elbow makes connections between pipes quickly and easily. Its push-to-connect design is ideal for tight spaces and wet lines. It is compatible with PEX, copper, CPVC, PE-RT and HDPE pipes.
- Used to make 90 Degree connection between two pieces of pipe.
- Compatible with PEX, copper, CPVC, PE-RT and HDPE pipes.
- No special tools, crimping, glue or soldering required.
Product Highlights
This DZR forged brass 90-degree elbow fitting can withstand 200 degrees F and 200 PSI. Approved for underground and behind-the-wall applications.
Product Information
Standard Information
-
Brand: SHARKBITE
-
Manufacturer Part Number: U249LF
-
Country of Origin: Australia
Technical Specifications
-
Fitting Side A Connection Type: Push-to-Connect
-
Fitting Side B Connection Type: MNPT
-
Fitting Side B Pipe Size: 1/2 in
-
Fitting Side A Tube Outer Diameter: 1/2 in
-
Fitting Material: Brass
-
Fitting Thread Size: 1/2
-
Maximum Operating Pressure: 200 psi
-
Maximum Operating Temperature: 200 Degrees F
-
Specific Fitting Shape: 90 Degrees Drop Ear Elbow
-
Standards: ASSE 1061, NSF 66
-
Tube Size: 1/2 in
-
Temperature Resistance: 200 degrees F
-
Pressure Resistance: 200 PSI
-
Material: DZR forged brass
-
Fitting Type: 90-degree elbow
-
Application: Potable water pipes
-
Compatibility: PEX, PE-RT, CPVC, SDR-9 HDPE, and copper pipes
-
Installation: Push-to-connect
-
PEX Size: 1/2"
-
Max Temp (F): 200 F
-
Max Pressure (PSI): 200
-
Tubing Compatibility: OD Controlled Copper, PEX, CPVC
-
Fitting System Compatibility: Push Fit
-
Water Connection: 1/2"
-
Approved for Commercial Use: Yes
-
Low Lead Compliant: Yes
-
End Style: Push-Fit
-
Finish: Natural Brass/Polished Chrome
-
Fitting/Connector Type: 90 deg Drop-Ear Elbow
-
Nominal Size: 1/2 In
-
Temperature Rating: 200 deg F
-
Fitting Connection Size: 1/2" Tube OD x 1/2" Tube OD
-
Shape: Elbow
