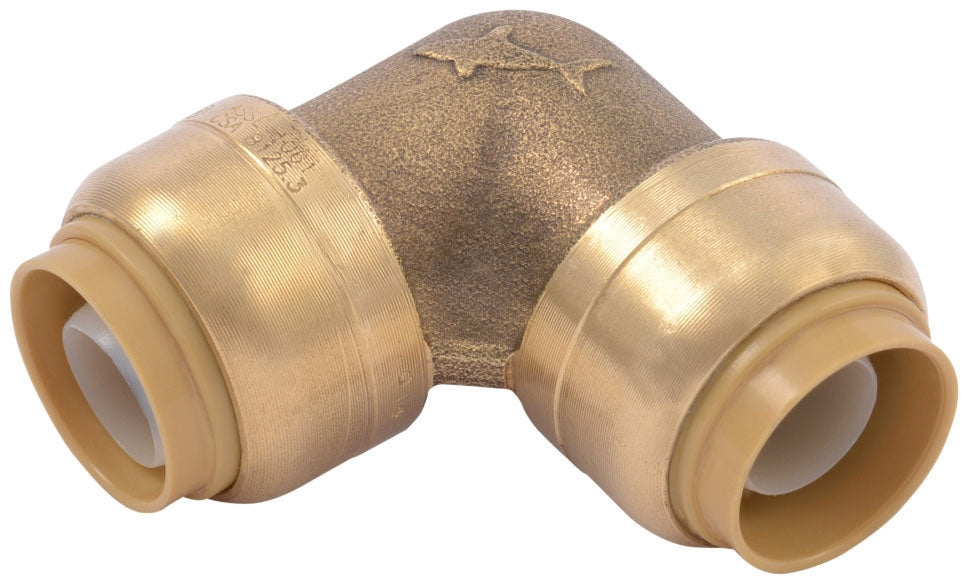

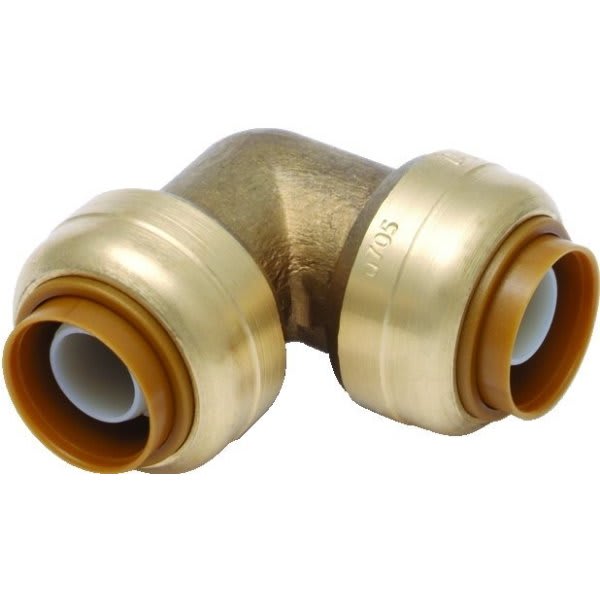

Sharkbite U248LF 1/2 inch 90 degree elbow (90 degree) UR248

Product Description

The SharkBite U248LF is a lead-free 1/2 inch 90-degree push-to-connect elbow fitting manufactured from dezincification-resistant (DZR) brass. It provides push-fit connections on both ends for tool-free installation and is rated to 200 PSI and 200�F. The fitting includes an EPDM O-ring, 316 stainless steel grab ring, and a polysulfone tube support liner with a 0.938 inch insertion depth, and is suitable for potable water and hydronic heating systems.

• Push-to-connect x push-to-connect ends for instant, tool-free connections; no soldering or glue required
• Constructed of lead-free DZR brass with 316 stainless steel grab ring, EPDM O-ring and polysulfone tube support liner
• Rated to 200 PSI and 200�F; compatible with copper, CPVC and PEX piping; suitable for potable water and hydronic heating

Product Highlights

Lead-free DZR brass 90-degree push-fit elbow, 1/2 inch connections, 200 PSI/200�F rating, includes EPDM O-ring, stainless steel grab ring and polysulfone liner.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U248LF
• Country of Origin: CHINA

Technical Specifications

• Brand: SHARKBITE
• MPN: U248LF
• Product Type: Elbow Fitting
• Angle: 90 Degree
• Size: 1/2 Inch x 1/2 Inch
• End Connection: Push-to-Connect x Push-to-Connect
• Body Material: DZR Natural Brass
• Grab Ring Material: 316 Stainless Steel
• O-Ring Material: EPDM Rubber
• Tube Support Liner Material: Polysulfone
• Finish: Chrome Plated / Natural Brass (varies by listing)
• Pressure Rating: 200 PSI
• Temperature Rating: 200 Deg F
• Insertion Depth: 0.938 Inch
• Applications: Potable Water; Hydronic Heating Water Distribution; Underground use (per listings)
• Compatibility: Copper, CPVC, PEX
• Applicable Standards: ASSE 1061; NSF/ANSI 14/61/372; IAPMO; cUPC; IPC; CSA B125.3 (per listings)
• UPC: 697285465220
• Material Notes: Lead-free; dezincification-resistant (DZR) brass construction
