Product Description

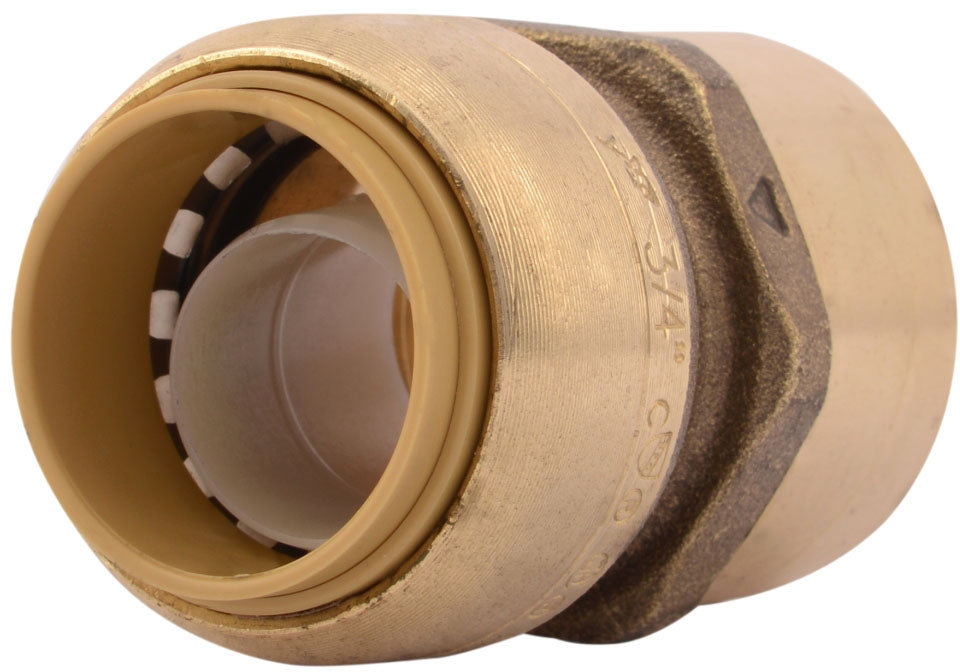

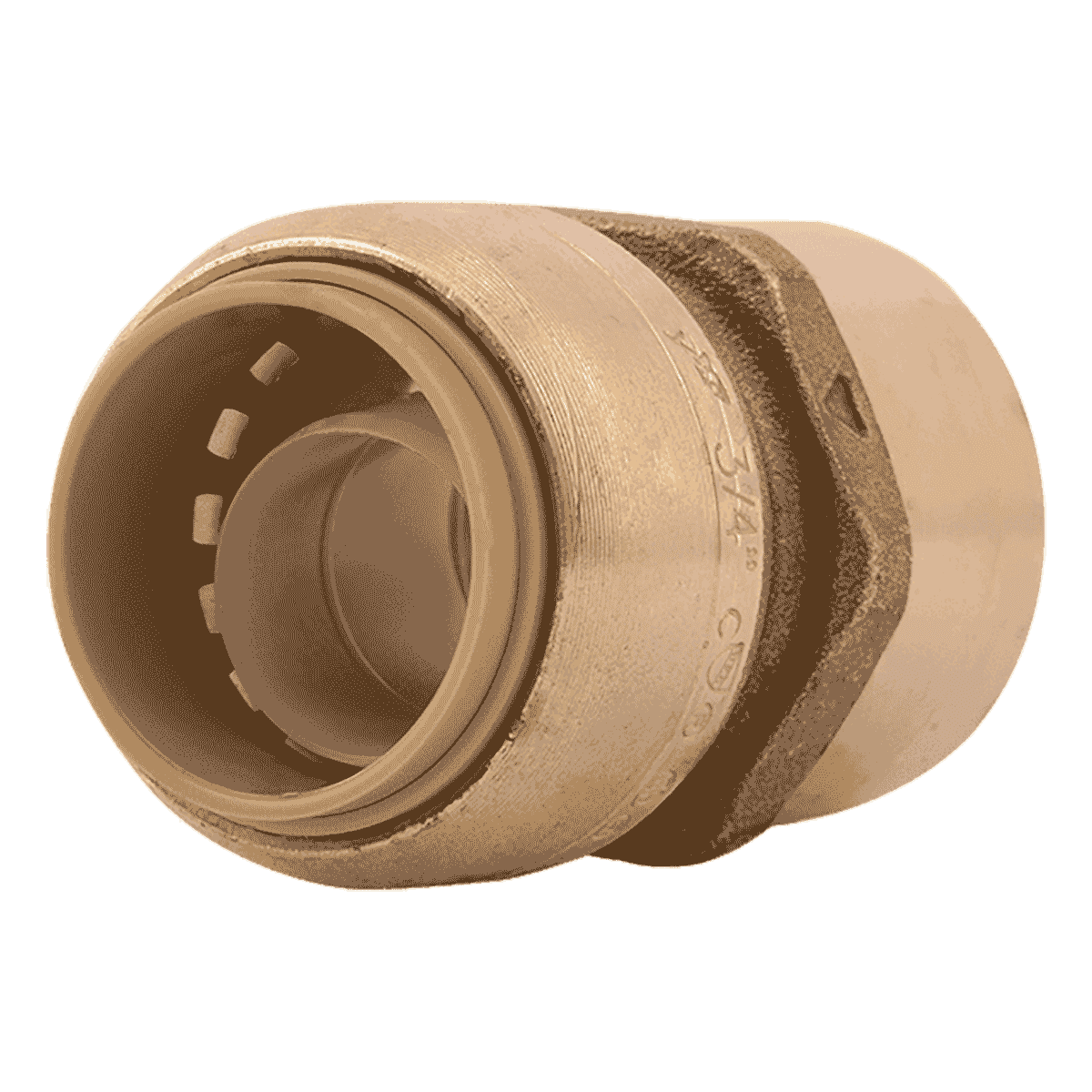

The SHARKBITE u088lf is a 3/4-inch push-to-connect by 3/4-inch female NPT (FNPT) transition adapter made from lead-free DZR brass. It allows a direct connection between a push-fit pipe end and a female threaded fitting or valve without soldering, clamps, glue, or specialty tools. Stainless steel gripping teeth bite into the pipe on insertion while a compression O-ring creates a watertight seal. Rated to 200 degrees F and 200 psi, this adapter is suited for potable water supply and hydronic heating systems. Licensed plumbers and experienced trades install it during new construction, retrofit work, or emergency repairs where speed and code compliance are both required.
This adapter is used in residential and light commercial plumbing applications where a push-fit connection must transition to a threaded female port. It accepts copper, PEX, CPVC, or PE-RT pipe on the push-fit end in any combination, making it a reliable choice for mixed-material piping systems. The fitting is also removable and reusable using a standard SharkBite disconnect clip or tool, which is useful in tight spaces or systems that may require future service. Its straight configuration suits inline transitions at fixtures, valves, and manifolds.
Key Features
- Lead-free DZR brass construction meets potable water requirements
- Push-to-connect end accepts copper, PEX, CPVC, or PE-RT pipe with no soldering or glue
- Stainless steel gripping teeth and compression O-ring provide a secure, watertight seal
- Rated to 200 degrees F and 200 psi for water supply and hydronic heating use
- Removable and reusable with a disconnect tool for easier service in tight spaces
- Meets UPC, IPC, and cUPC certification requirements
Compatibility
Designed for use with 3/4-inch copper, PEX, CPVC, or PE-RT pipe on the push-fit end and any standard 3/4-inch female NPT threaded port on the opposite end. Certified for potable water supply and hydronic heating applications.
Installation Notes
Installation is performed by licensed plumbers or qualified trades in accordance with applicable IPC or UPC code requirements. Shut off the water supply and relieve system pressure before installing or removing this fitting. Ensure the pipe end is cut clean and square with no burrs, and that the insertion depth mark is visible after seating. To remove the fitting, use a SharkBite disconnect clip or tool — do not attempt to pull the fitting free without fully depressing the collet.
Technical Specifications
-
Connection 1: Push-to-connect (PTC), 3/4 inch
-
Connection 2: Female NPT (FIP), 3/4 inch
-
Connection Orientation: Straight
-
Diameter: 0.75 inches x 0.75 inches
-
Material: Lead-free DZR brass
-
Pressure Rating: 200 psi
-
Temperature Rating: 200 degrees F
-
Product Length: 1.85 inches
-
Product Depth: 1.4 inches
-
Product Width: 6.05 inches
-
Product Height: 4.1 inches
-
Certifications: Lead-free, UPC, IPC, cUPC
-
Country of Origin: USA
-
TAA/BAA Compliant: Yes
-
Pack Size: 1
Standard Information
-
Brand: SHARKBITE
-
Manufacturer Part Number: u088lf
