Product Description

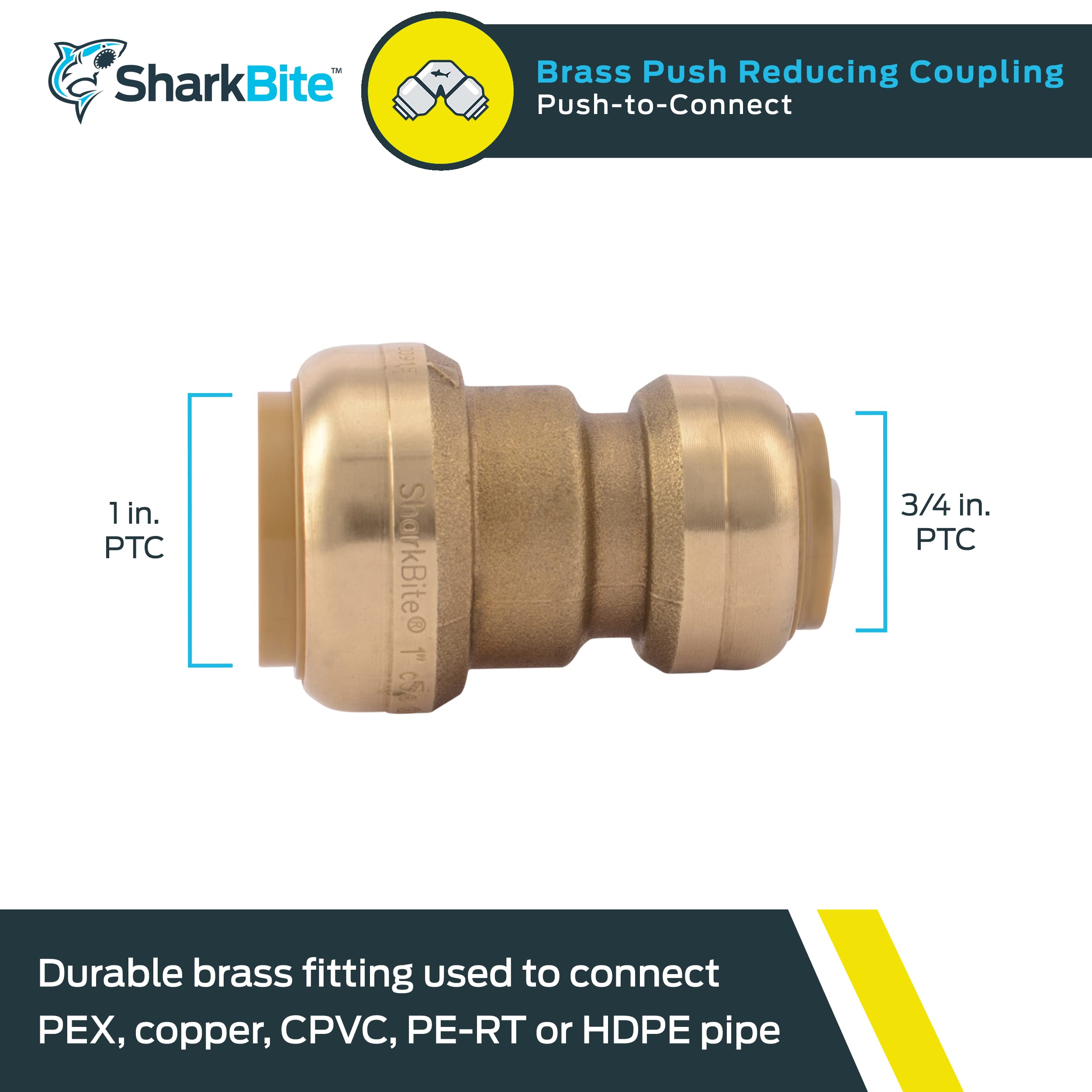

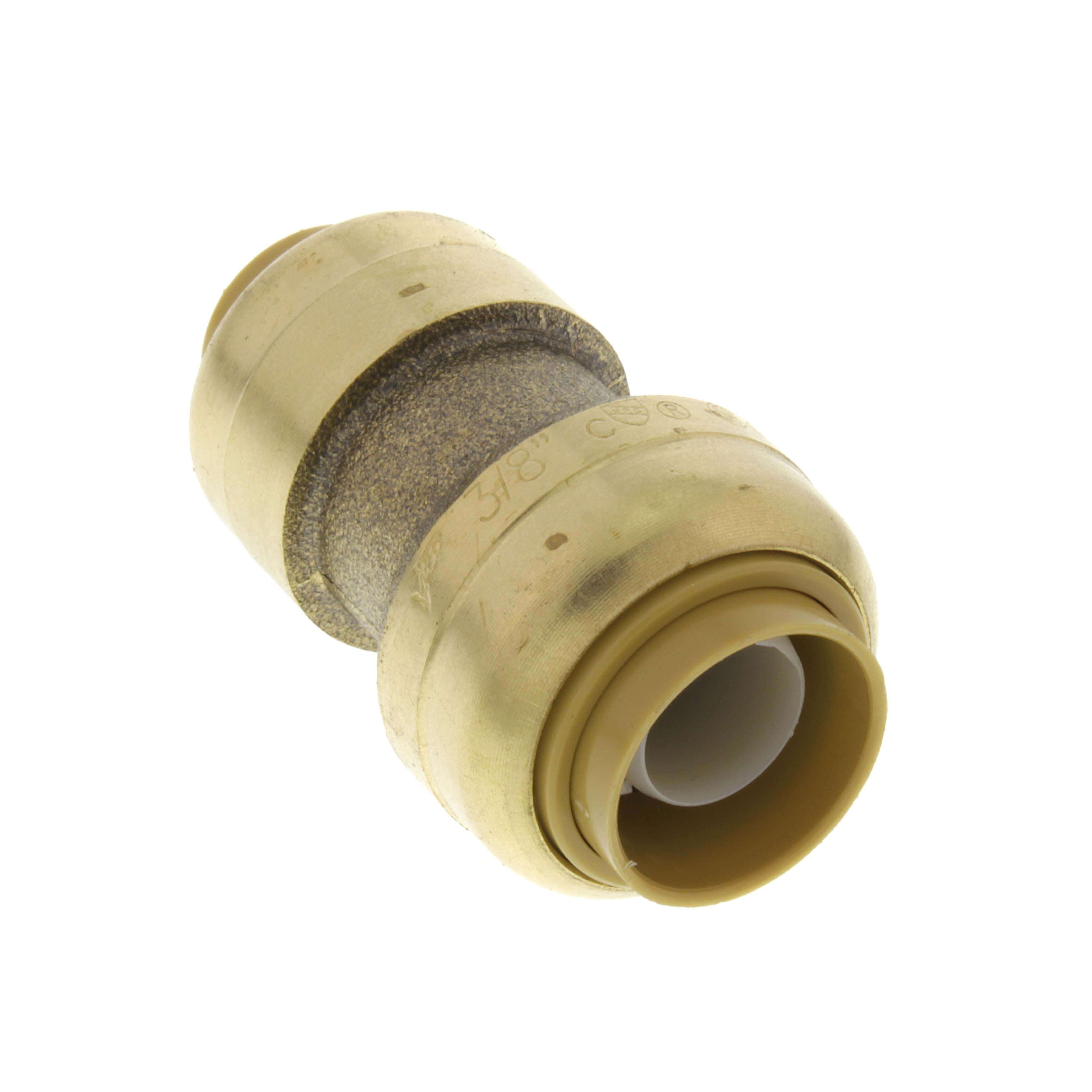

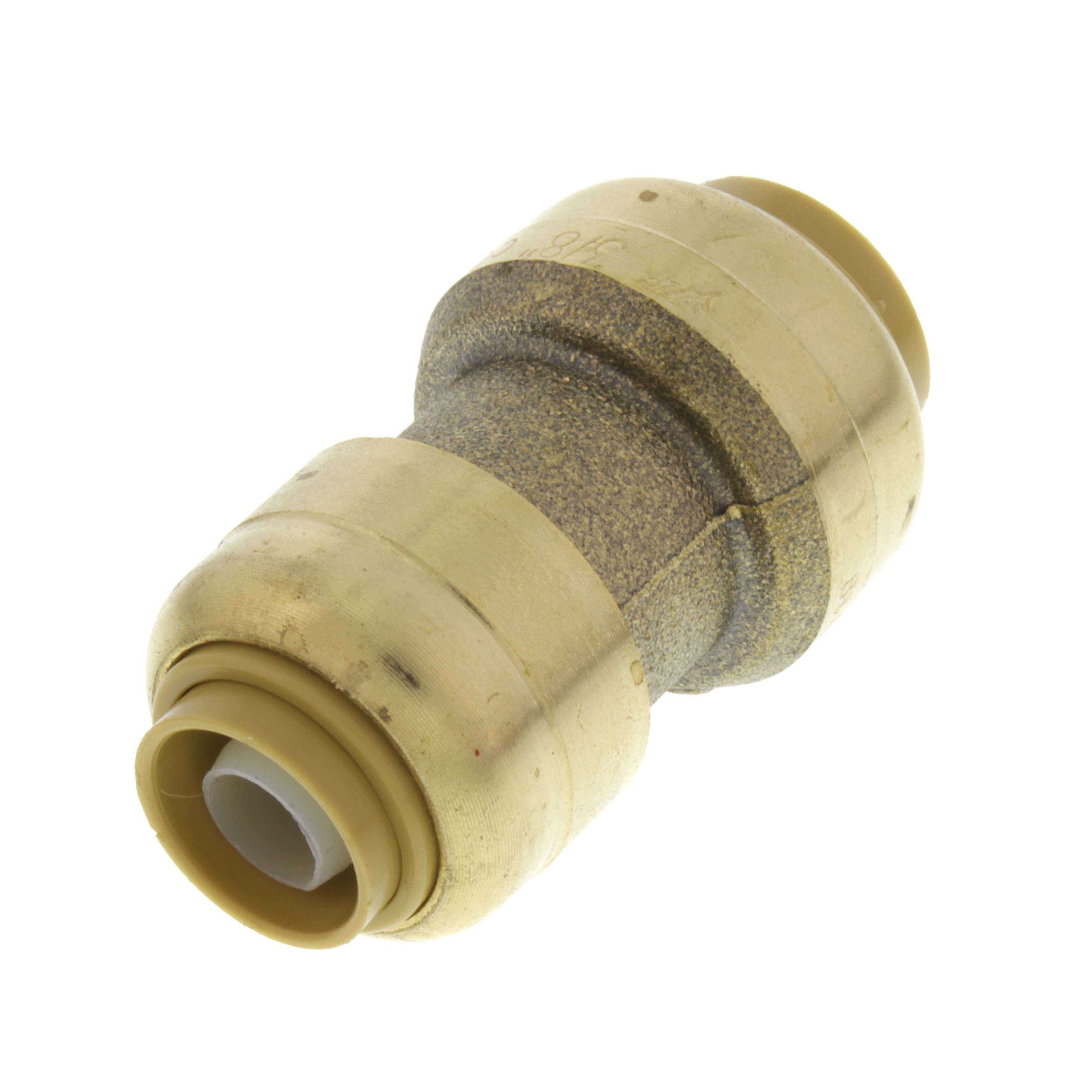

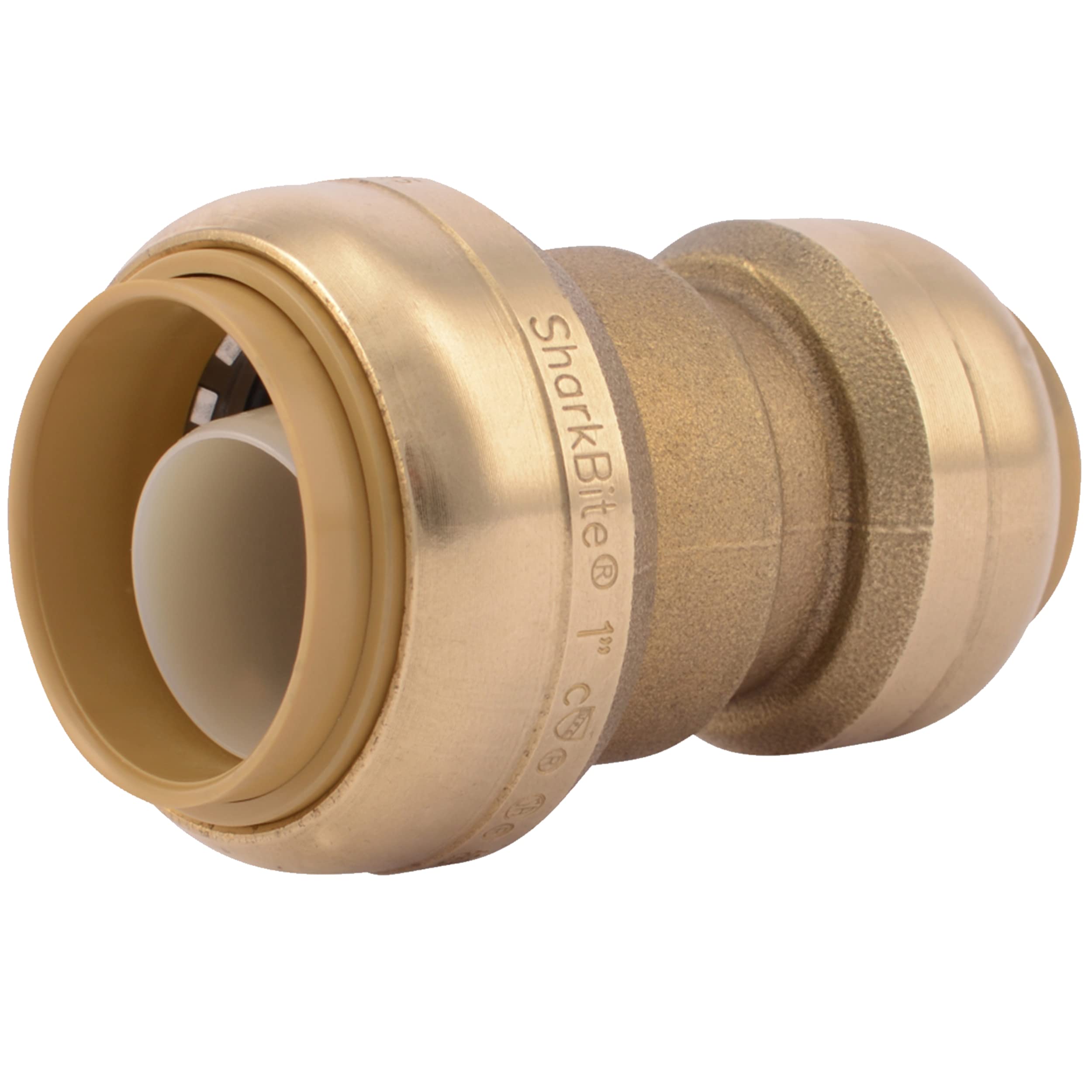

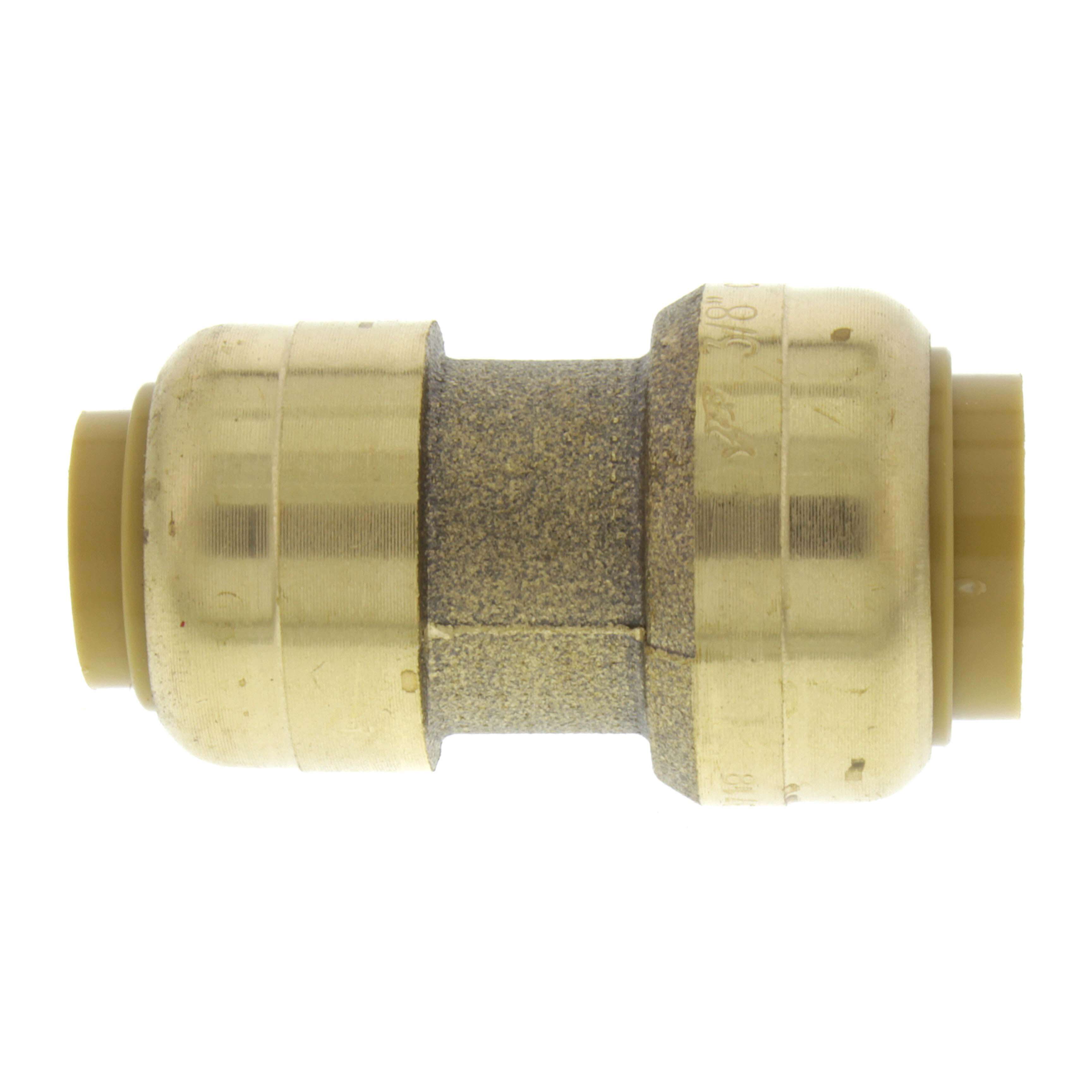

The SHARKBITE U009LF reducing coupling allows for transitioning between different pipe sizes. This push-fit fitting requires no soldering, clamps, or glue. Designed for potable water and radiant heating applications, it is rated to 200 psi and 200 deg F. It can be used underground or behind walls without access panels.
- Instant push-fit connection for increased ease-of-use; no soldering, clamps, unions or glue required
- For use with copper, CPVC and pex pipe
- Fittings certified to 200 psi and 200 deg F (93 deg C)
Product Highlights
This lead-free DZR brass coupling is easy to install and suitable for potable water and heating applications. Connects different sized pipes without special tools.
Product Information
Standard Information
-
Brand: SHARKBITE
-
Manufacturer Part Number: U009LF
-
Country of Origin: Australia
Technical Specifications
-
Finish: Natural Brass/Polished Chrome
-
Nominal Size: 3/8 x 1/2 in
-
Pressure Rating: 200 psi
-
Temperature Rating: 200 deg F
-
Fitting Connection Type: Push-Fit
-
Tube Fitting Material: DZR Brass
-
Gasket Material: EPDM
-
Standards: ASSE 1061, NSF 61
-
Compliance: ASSE 1061/NSF61
-
Material: Brass
-
End Style: Push-Fit
-
Fitting/Connector Type: Reducing Coupling
-
Length: 2 in
-
Mfg Standards/Approvals: ASSE 1061, CSA B125.3, IAPMO Listed, IPC and cUPC Listed, NSF/ANSI 372-2010/14/61, UPC Listed
-
Connection Size: 3/8 x 1/2 in
-
Connection Type: Push-to-Connect
-
Item Name: Reducing Coupling
-
DZR Brass: Natural DZR Brass
-
Tube Size: 3/8 in x 1/2 in
-
Max. Pressure: 200 psi
-
Temp. Range: 0 Degrees to 200 Degrees F
-
Pipe Size - Pipe Fitting: 3/8 in x 1/2 in
-
Maximum Operating Pressure: 200 psi
-
Maximum Operating Temperature: 200 Degrees F
-
Fitting Side A Connection Type: Push-to-Connect
-
Fitting Side B Connection Type: Push-to-Connect
-
Fitting Side A Tube Outer Diameter: 3/8 in
-
Fitting Side B Tube Outer Diameter: 3/8 in
-
Includes Pre-Applied Thread Sealant: No
-
Outer Diameter: 1/2 in OD
-
Maximum Temperature: 200 deg F
