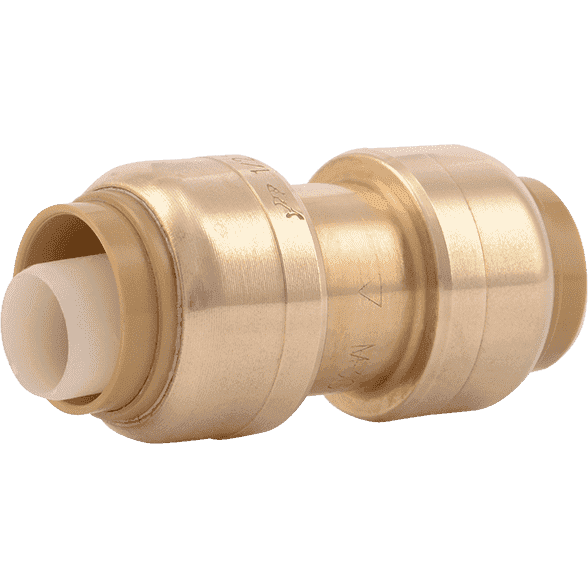

Sharkbite u006lf Push-to-connect Coupling 3/8 in

Product Description

The SHARKBITE u006lf is a push-to-connect coupling designed for joining 3/8-inch pipe with a 1/2-inch OD in residential and light commercial plumbing systems. Internal stainless steel teeth grip the pipe on insertion, while a specially formulated O-ring compresses to form a leak-free seal. No soldering, crimping tools, clamps, or solvent cement required. The fitting can be rotated after assembly to ease routing in confined spaces, and it can be disconnected and reused with a standard SharkBite disconnect clip or removal tool.

This coupling is suited for potable water supply lines where copper, PEX, or CPVC pipe is present. It is commonly used in repair and retrofit scenarios where a torch-free connection is needed, such as in occupied structures, near finished surfaces, or in areas with limited clearance. Plumbers and qualified plumbing contractors are the typical installers, though the design also accommodates knowledgeable DIYers working on permitted residential plumbing.

Key Features

• Push-to-connect installation requires no solder, clamps, unions, or glue
• Stainless steel grab ring bites and holds pipe under pressure
• O-ring seal rated for potable water service
• Compatible with copper, PEX, and CPVC pipe in any combination
• Fitting rotates after assembly for easier routing in tight spaces
• Disconnect and reuse with a standard SharkBite removal tool

Compatibility

Designed for use with 3/8-inch pipe having a 1/2-inch OD, compatible with copper, PEX, and CPVC pipe types in any combination.

Installation Notes

Shut off the water supply and relieve line pressure before cutting into an existing pipe run. Ensure pipe ends are cut square, deburred, and clean before insertion. Follow local plumbing codes, including IPC requirements for fitting use in concealed or buried applications. Do not exceed the pressure and temperature ratings marked on the fitting.

Technical Specifications

• Pipe Size: 3/8 inches
• Pipe OD: 1/2 inch
• Length: 0.93 inches
• Width: 1 inch
• Height: 1 inch
• Weight: 0.11 pounds

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: u006lf
