Sharkbite/cash Acme 30YE555560B Gas Connector 60in 5/8in Od

Product Description

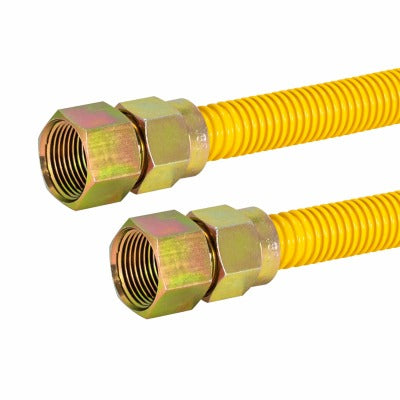

The SHARKBITE/CASH ACME 30YE555560B is a 60-inch, 5/8-inch OD flexible gas connector designed to link gas ranges, boilers, and other high-usage gas appliances to a shutoff valve. The connector features an epoxy coating that resists corrosion, common household chemical stains, and UV exposure, making it suitable for both indoor and outdoor installations. It is certified for use with most ranges and boilers rated up to 93,200 BTU/h. Each package includes one 60-inch epoxy-coated connector and two 3/4-inch FIP fittings. Licensed plumbers and gas fitters are the typical installers for this type of connector.

This connector is intended for residential and light commercial applications where a flexible gas supply line is required between a shutoff valve and an appliance. It is well-suited for gas ranges, boilers, and similar high-demand gas appliances. The epoxy coating adds durability in environments where the connector may be exposed to moisture, cleaning products, or direct sunlight, broadening the range of installation scenarios where it can be used reliably.

Key Features

• 60-inch length provides flexible routing from shutoff valve to appliance
• 5/8-inch OD construction fits most standard gas range and boiler supply connections
• 3/4-inch FIP fittings included on both ends for direct connection to shutoff valve and appliance inlet
• Epoxy coating resists corrosion, UV rays, and common household chemical stains
• Rated for gas appliances up to 93,200 BTU/h
• Approved for indoor and outdoor use

Compatibility

Designed for use with most major brands of gas ranges, boilers, and high-usage gas appliances connected to a shutoff valve. Certified for appliances with gas ratings up to 93,200 BTU/h.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and applicable sections of the IFGC. Shut off the gas supply at the meter or main valve and verify zero pressure before disconnecting or connecting any gas line. Do not over-tighten FIP fittings; use an appropriate pipe thread sealant rated for gas service on all threaded connections. Inspect the connector for kinks or damage before placing the appliance in its final position.
