Sharkbite/cash Acme 30YE555560 Gas Connector 60 in 5/8 Od

Product Description

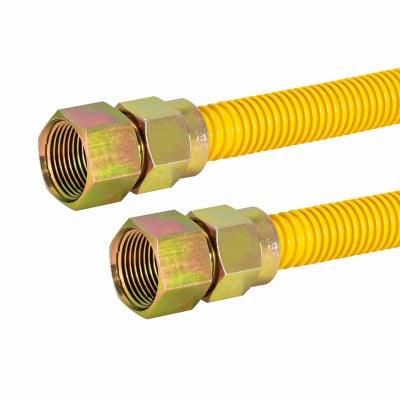

The SHARKBITE/CASH ACME 30YE555560 is a 60-inch, 5/8-inch OD epoxy-coated flexible gas connector designed to connect gas ranges, boilers, and high-usage gas appliances to a shut-off valve. It terminates with 3/4-inch FIP fittings on both ends and is rated for gas appliances up to 93,200 BTU/h. The epoxy coating delivers corrosion resistance and protection against chemical stains from common household products and UV exposure. This connector is certified for indoor and outdoor use and ships as a single connector with two 3/4-inch FIP fittings included.

This connector is suited for residential and light commercial installations where a gas range, boiler, or similarly rated high-usage appliance needs to be connected to an existing gas shutoff valve. The 60-inch length provides enough flexibility for most standard appliance hookups, including freestanding ranges and wall-mounted boilers. Licensed plumbers and gas fitters typically handle this installation as part of appliance hookup or system commissioning work.

Key Features

• 60-inch length with 5/8-inch OD flexible corrugated body
• 3/4-inch FIP x 3/4-inch FIP end connections included
• Rated for gas appliances up to 93,200 BTU/h
• Epoxy coating resists corrosion, UV rays, and common household chemical stains
• Certified for both indoor and outdoor use
• Connects most major brands of gas ranges, boilers, and high-usage appliances to a shutoff valve

Compatibility

Designed to connect most major brands of gas ranges and boilers with gas ratings up to 93,200 BTU/h to a standard shutoff valve. Both end fittings are 3/4-inch FIP, suitable for appliances and shutoff valves with matching female threaded inlets.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with applicable local codes and IFGC requirements. Shut off the gas supply at the main valve and confirm the line is fully depressurized before disconnecting any existing connector or fitting. Apply an approved thread sealant rated for gas service to all threaded connections. Never stretch, kink, or route this connector through walls, floors, or ceilings unless specifically permitted by local code.
