Sharkbite/cash Acme 30YE555424B Gas Connector 24 Inch 5/8 Od

Product Description

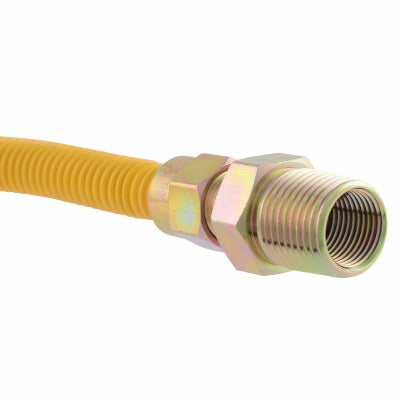

The SHARKBITE/CASH ACME 30YE555424B is a 5/8-inch OD epoxy-coated flexible gas connector rated for appliances up to 150,000 BTU/h. It connects gas ranges, boilers, and other high-usage gas appliances to a shut-off valve. The epoxy coating resists corrosion, chemical stains from common household products, and UV exposure, making it approved for both indoor and outdoor installations. The kit includes one 24-inch connector, one 3/4-inch FIP fitting, and one 3/4-inch MIP fitting tapped for 1/2-inch FIP. Licensed plumbers and gas fitters are the primary installers of this type of connector.

This connector is suited for residential and light commercial applications where a gas range, boiler, or high-demand gas appliance must be connected to a supply shut-off valve. The 24-inch length provides flexibility for standard behind-range and mechanical-room installations. The included 3/4-inch FIP and 3/4-inch MIP fittings accommodate common supply-side and appliance-side connections without additional adapters. The connector is certified for use with most major brands of gas ranges and boilers operating at gas ratings up to 150,000 BTU/h.

Key Features

• 5/8-inch OD flexible construction for standard gas appliance connections
• Rated for appliances up to 150,000 BTU/h, covering most residential ranges and boilers
• Epoxy coating provides corrosion resistance and UV protection for indoor and outdoor use
• Includes 3/4-inch FIP fitting and 3/4-inch MIP fitting tapped for 1/2-inch FIP
• 24-inch length suits typical behind-appliance installation clearances

Compatibility

Designed for use with most major brands of gas ranges, boilers, and high-usage gas appliances connected to a shut-off valve, with gas ratings up to 150,000 BTU/h.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Always shut off the gas supply at the main valve before disconnecting or installing any gas connector. Do not reuse an old or previously kinked connector. Inspect all fittings for leaks using an approved leak-detection solution after pressurizing the line.
