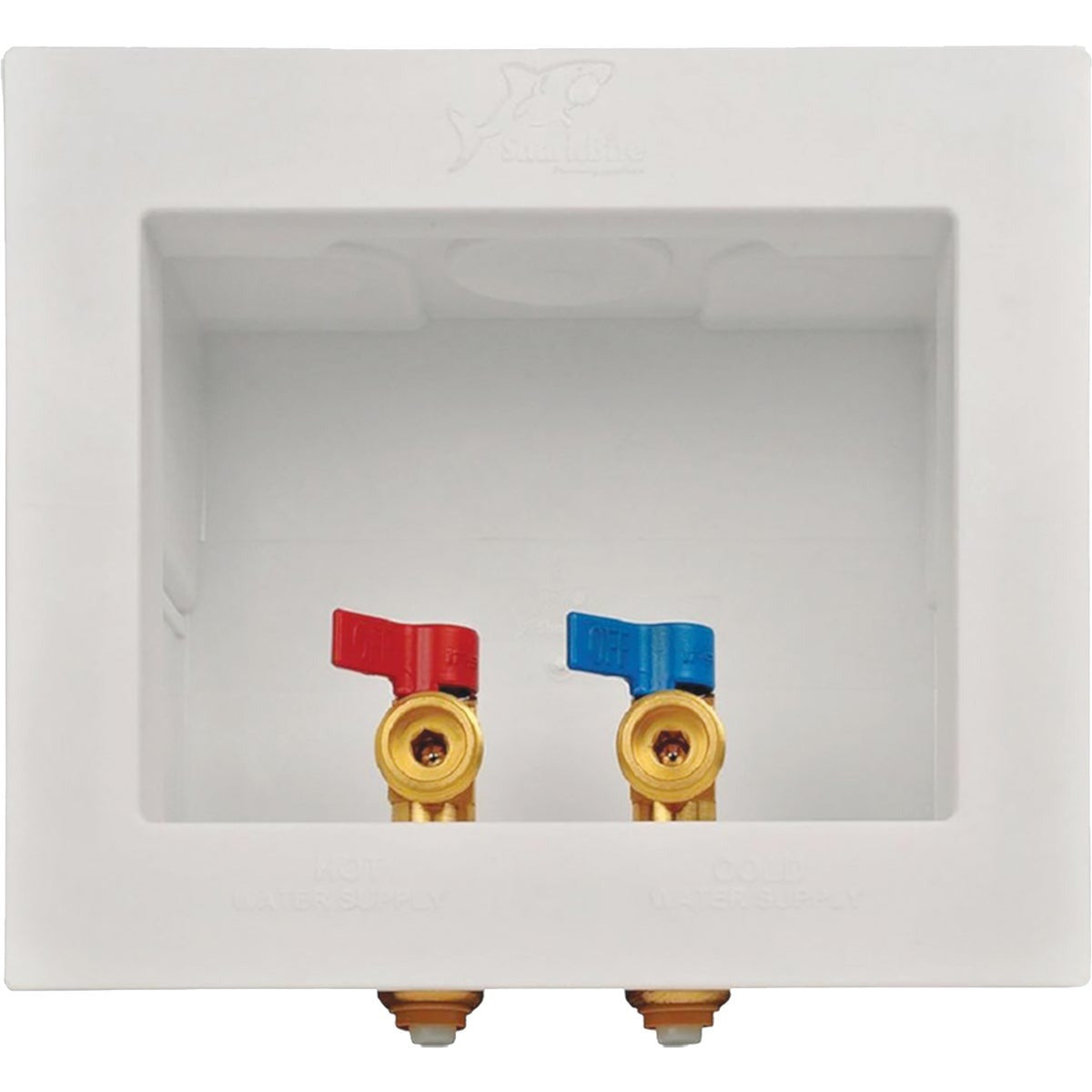

Sharkbite 24763 Washing Machine Outlet Box 2 Valve

Product Description

The SHARKBITE 24763 is a two-valve recessed washing machine outlet box built for residential plumbing installations. Constructed from brass, the box uses push-to-connect technology to eliminate soldering, crimping, or glue during installation. Quarter-turn shut-offs on the hot and cold ports give plumbers and installers direct control over the water supply to the washing machine. The one-piece recessed design keeps valves flush with the wall, and a snap-on faceplate accommodates drywall up to 0.75 inches thick. This box includes hot and cold 0.5-inch push-to-connect by 0.75-inch MHT valves, a faceplate cover, and two support brackets.

This outlet box is suited for new construction and remodel applications in residential laundry rooms. Mounting brackets allow the box to be positioned at the left, center, or right of a standard stud bay without additional support framing. The drain knockout is compatible with left, right, or center drain configurations. Plumbers typically install this unit during rough-in, though the push-to-connect design also makes it practical for service replacements. It is compatible with copper, CPVC, and PEX supply lines.

Key Features

• Push-to-connect design requires no soldering, crimping, or glue
• Brass construction for durability in potable water service
• Quarter-turn shut-offs on both hot and cold ports
• Mounting brackets allow left, right, or center placement in stud bay with no extra framing
• Snap-on faceplate fits drywall up to 0.75 inches thick
• EZ-out test caps are raised for easy removal; oversized knockouts prevent debris from falling into drain
• Compatible with copper, CPVC, and PEX supply lines

Compatibility

Compatible with copper, CPVC, and PEX supply lines. Accepts 0.5-inch push-to-connect inlet connections and 0.75-inch MHT outlet connections for standard washing machine hoses. Supports left, right, or center drain configurations.

Installation Notes

Installation is typically performed by a licensed plumber during rough-in or as a service replacement. Shut off the main water supply and depressurize the lines before connecting or disconnecting any fittings. No special tools are required for the push-to-connect valves, but follow local plumbing code requirements, including applicable IPC provisions, for recessed washing machine boxes. Verify that test caps are fully removed before commissioning the system.
