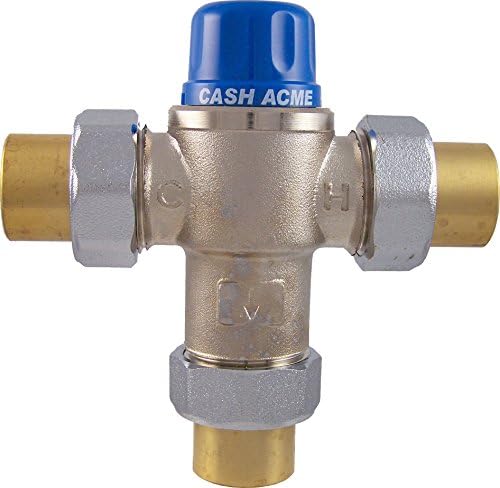

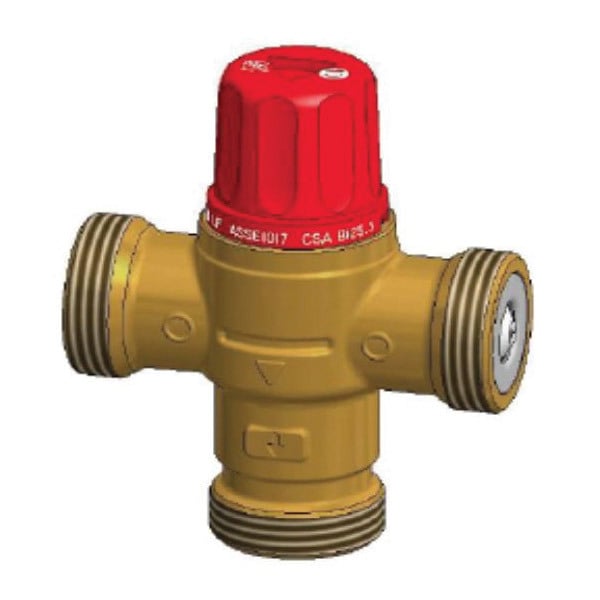

Sharkbite 24514 Heatguard HG110-HX Thermostatic Mixing Valve 3/4 in

Product Description

The SHARKBITE 24514 Heatguard HG110-HX is a temperature-actuated mixing valve that mixes hot water with cold to deliver water at a reduced temperature. It features an outlet temperature range extending to 176 deg F, making it ideal for heating systems or any installation requiring reduced temperature hot water. The valve incorporates a fast-acting, high-quality thermostatic element.

• High flow rate design for lower pressure losses within the system
• Every valve is tested prior to shipping
• Integral union connections on all three ports for easy and quick installation and service

Product Highlights

This thermostatic mixing valve delivers hot water at a reduced temperature and features integral union connections for easy installation.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: 24514
• Country of Origin: Import

Technical Specifications

• Body Material: Bronze
• End Style: NPT
• Flow Rate: 1 to 20 gpm
• Media: Water
• Nominal Size: 3/4 in
• Pressure Rating: 230 psi
• Series: HG110-HX
• Softgoods Material: EPDM Seal
• Temperature Rating: 115 to 120 deg F
• Trim Material: Engineered Polymer
• Size: 3/4 in.
• Material: Bronze
• Connector Type: NPT
• Thread Size: 0.75 inch
• Thread Type: NPT
• Number of Pieces: 1
• Manufacturer: Cash Acme
• Part Number: 24514
• Item model number: 24514
• Item Package Quantity: 1
• Measurement System: inch
• Included Components: Thermostatic Mixing Valve
• Batteries Included?: No
• Batteries Required?: No
