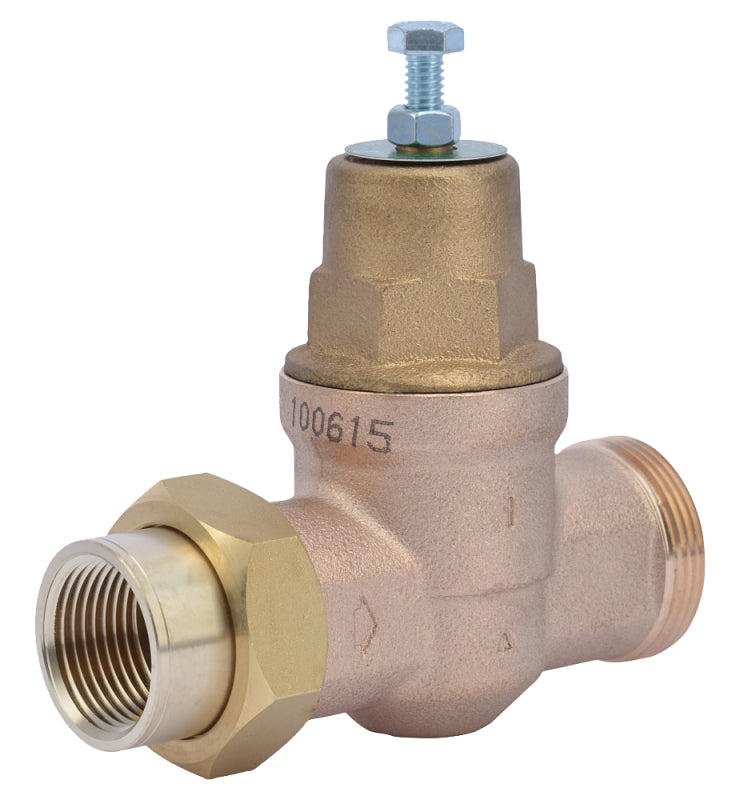

Sharkbite 23155-0045 1 EB45-U Single Union Threaded Valve

Product Description

The Sharkbite 23155-0045 is a pressure regulating valve designed for water applications. This single-union valve features an NPT connection and operates at a pressure rating of 45 psi. The valve's length from inlet to outlet measures five point seventeen inches, with a top to inlet center of four point thirty-five inches. The construction includes a bronze body with brass and stainless steel trim, and an EPDM O-ring. It is suitable for both domestic and commercial use.

• Modular cartridge design for easy service
• Rugged body enhances user safety
• Lead-free construction ensures compliance

Product Highlights

This product is built for reliability and ease of maintenance, making it suitable for plumbing professionals.

Product Information

Standard Information

• Manufacturer: CASH ACME
• UPC: 697285231559

Technical Specifications

• Body Material: Bronze
• Nominal Size: 1 inch
• End Style: NPT
• Pressure Rating: 45 psi
• Temperature Rating: 180 degrees F
• Media: Water
• Softgoods Material: EPDM O-Ring
• Series: EB45
• Inlet to Outlet Length: 5.17 inches
• Top to Inlet Center: 4.35 inches
• Trim Material: Brass/Stainless Steel
• Max Inlet Pressure: 400 psi
