Product Description

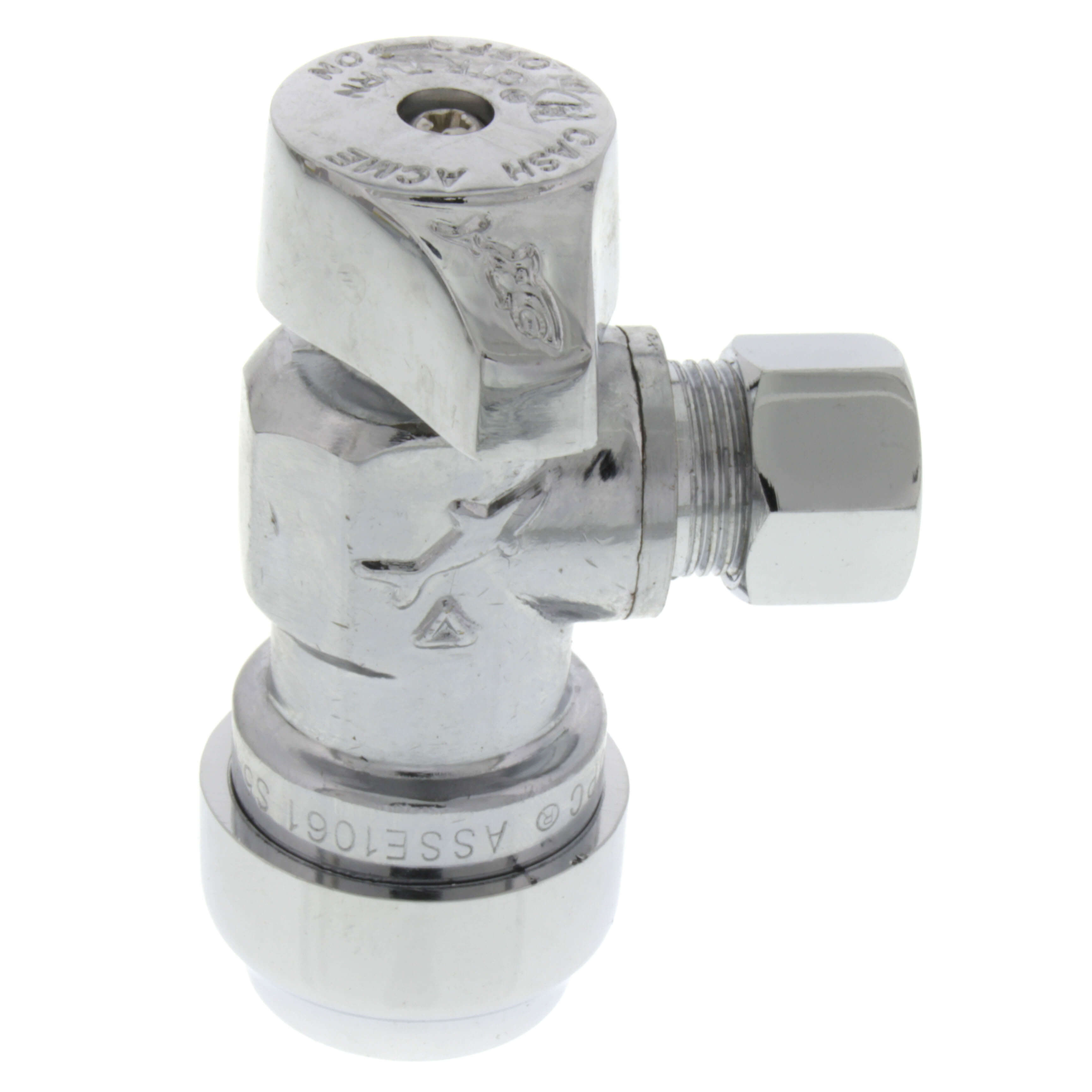

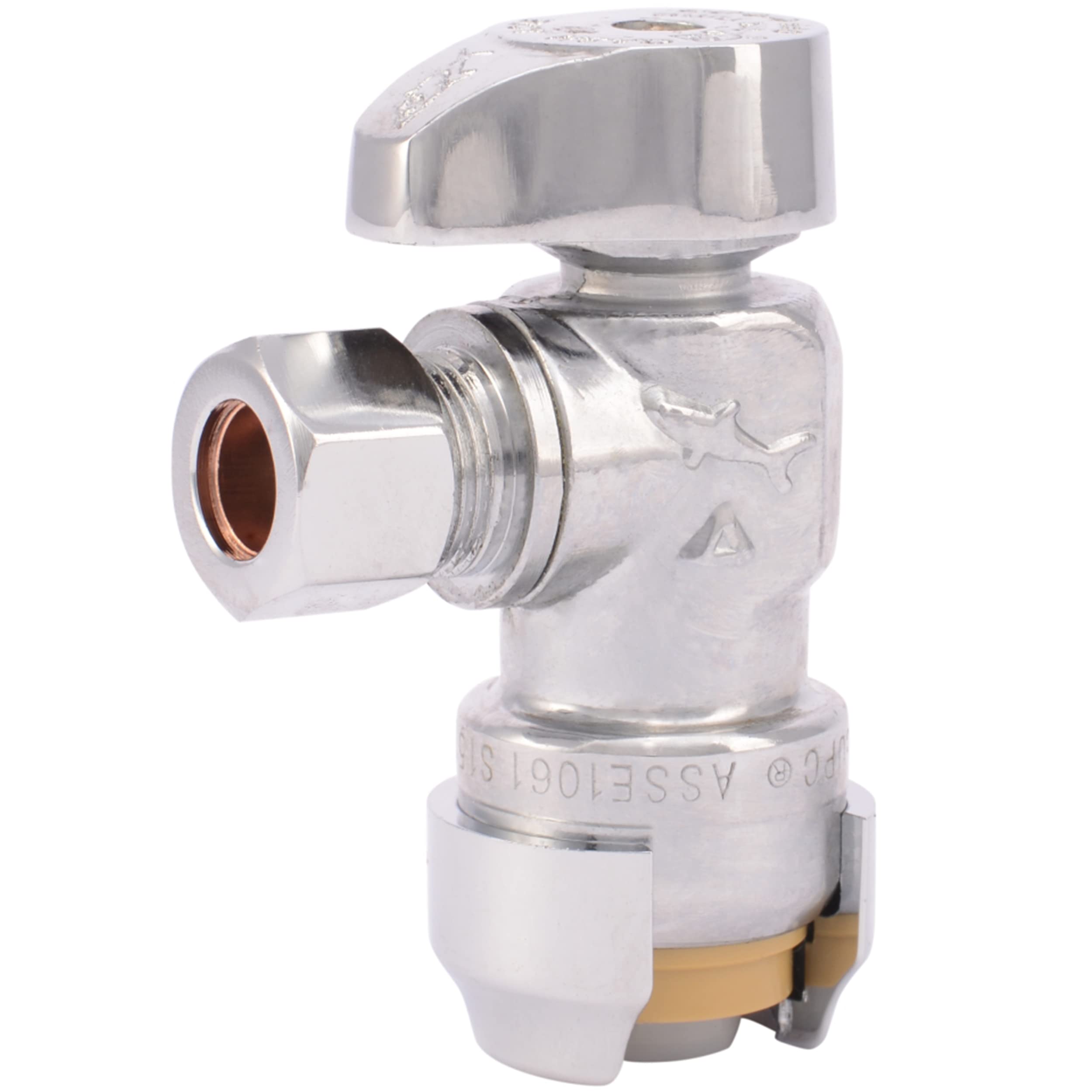

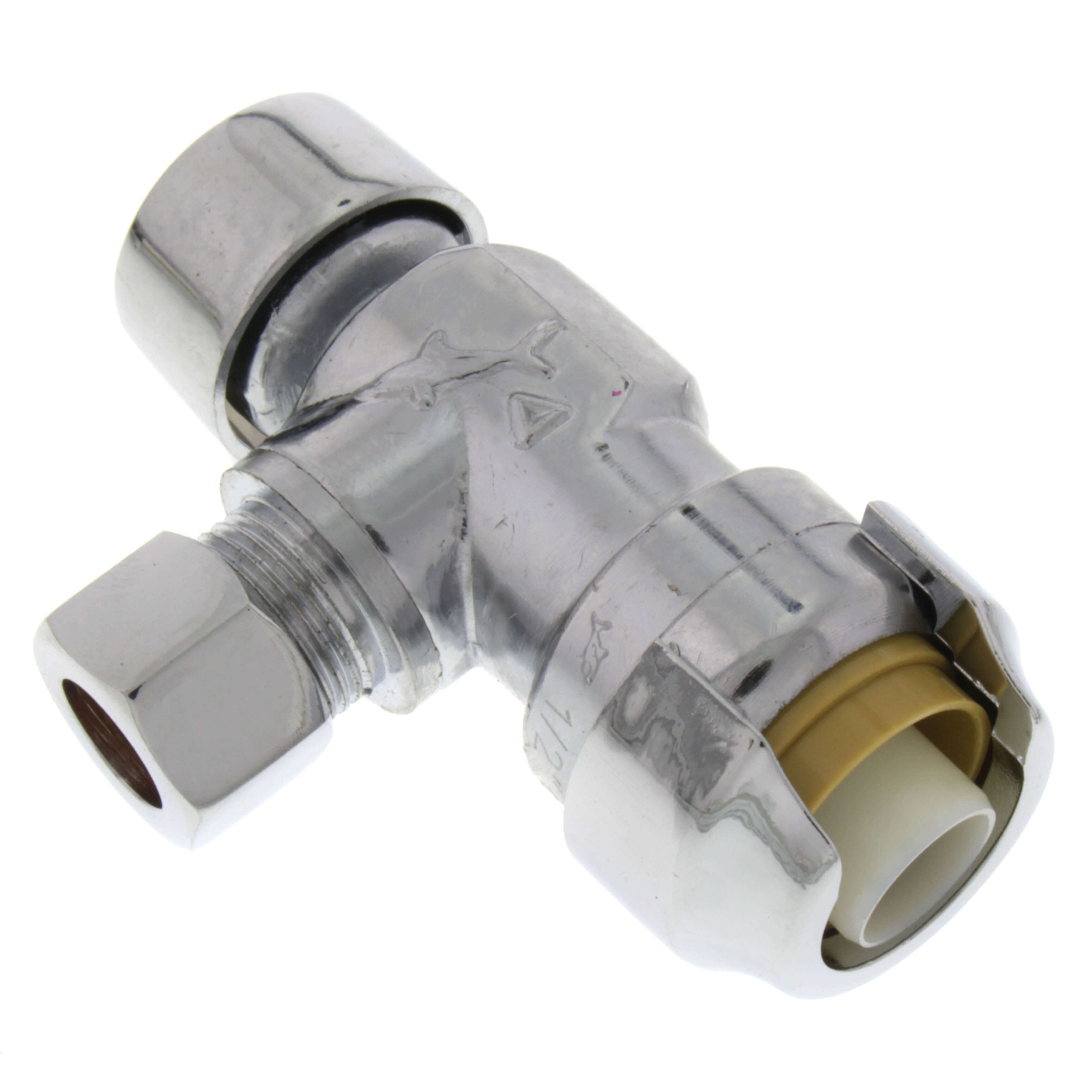

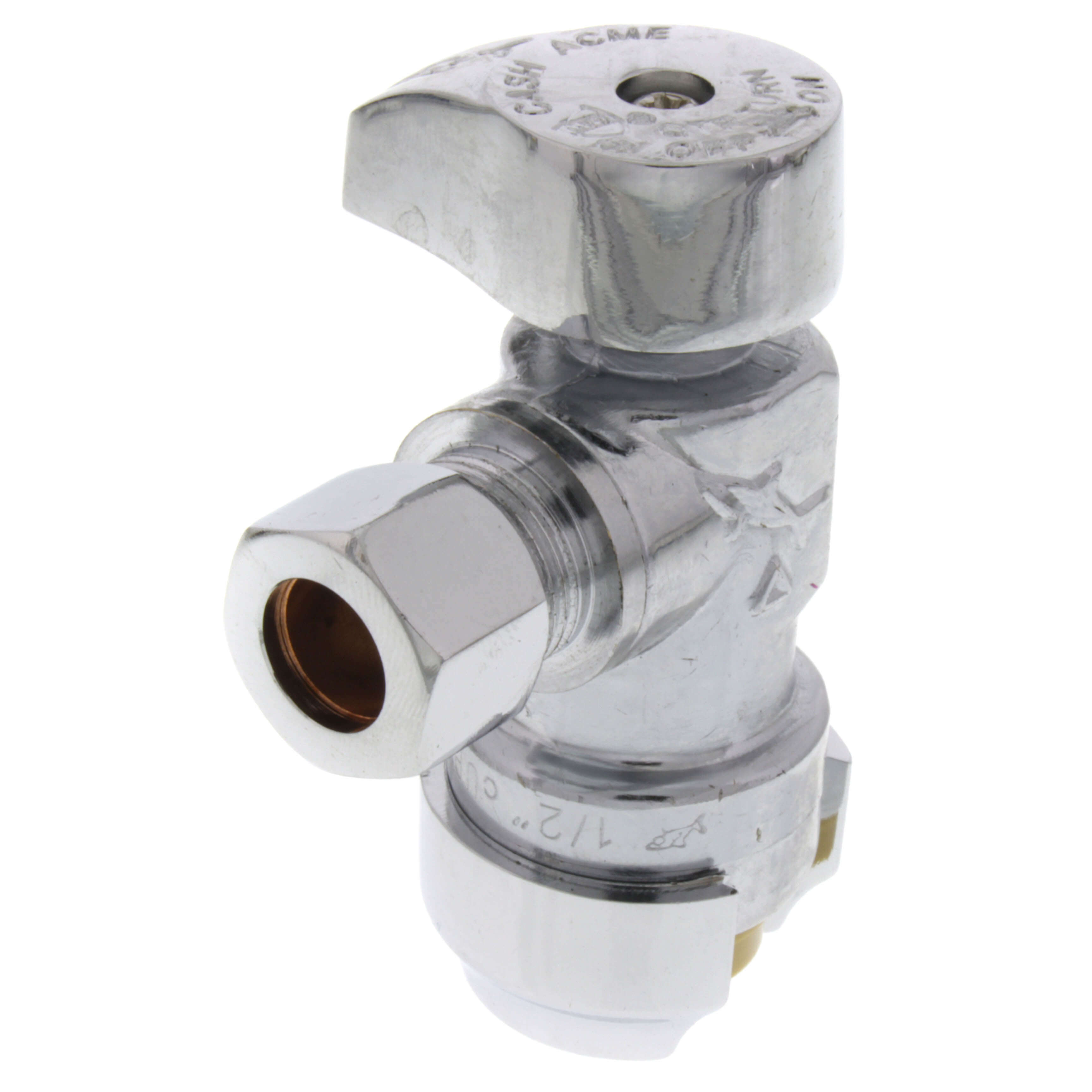

The SHARKBITE 23036-0000LF is a 1/2 x 3/8 Inch Compression Angle Stop Valve. This quarter-turn, push-to-connect brass plumbing fitting is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe. It is used to control the flow of water to household plumbing fixtures and appliances.
- Push-to-connect design for easy installation
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Quarter-turn stop valve
Product Highlights
This brass angle stop valve features a push-to-connect inlet and a quarter-turn full-port brass ball valve for quick and easy operation. Ideal for plumbing and home improvement projects.
Product Information
Standard Information
-
Brand: SHARKBITE
-
Manufacturer Part Number: 23036-0000LF
-
Country of Origin: USA
Technical Specifications
-
Color: Chrome
-
Style: Angle
-
Usage: Used to control the flow of water to household plumbing fixtures and appliances.
-
Finish: Brass
-
Pattern: Valve
-
Material: Brass
-
Number of Pieces: 1
-
Measurement System: Inch
-
Included Components: Stop Valve
-

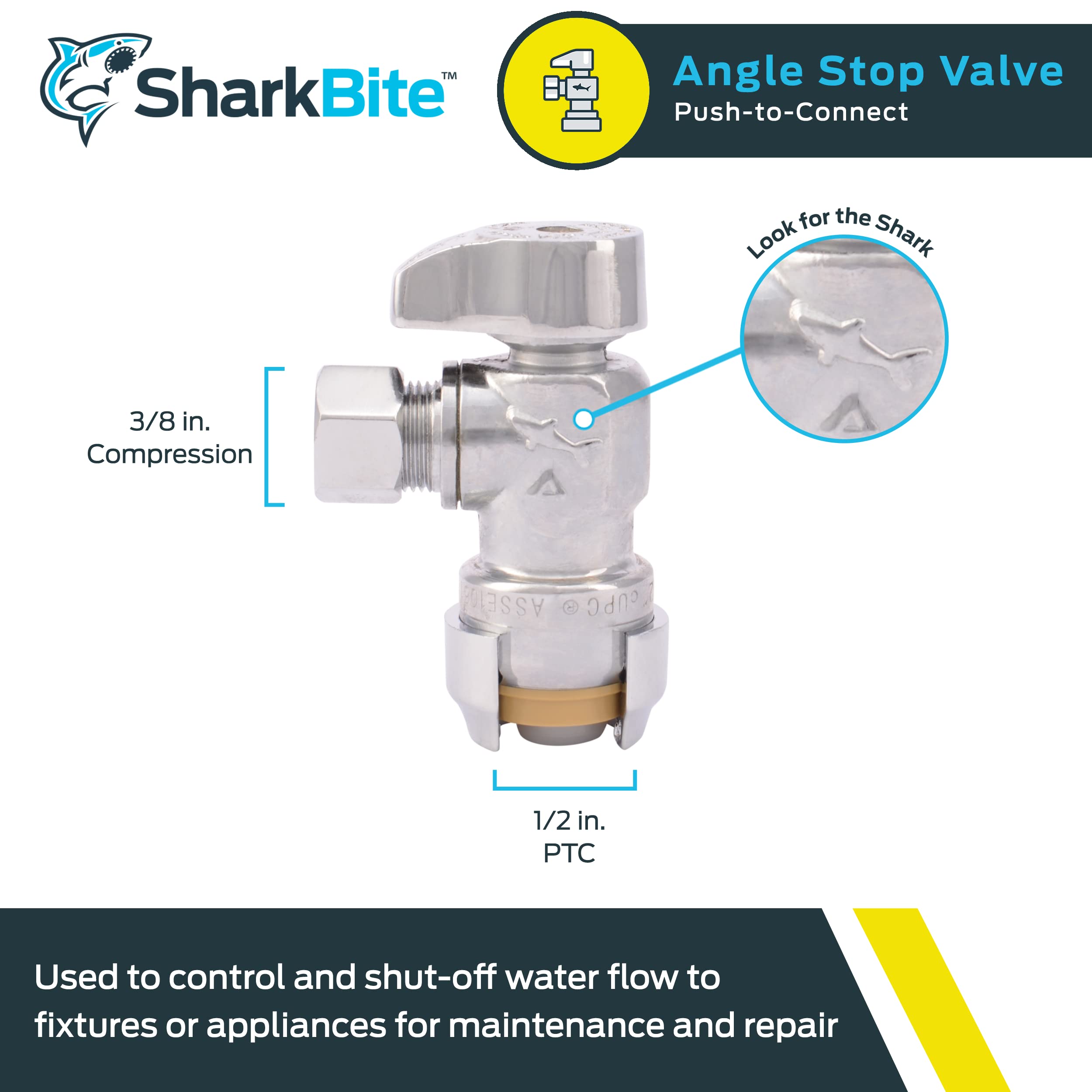

Size: 1/2 in. x 3/8 in.
-
Manufacturer: Cash Acme
-
Model / MPN: 23036-0000LF
-
Application: For Hydronic Heating as well as Potable Water Distribution
-
Body Material: Brass
-
Country of Origin: CN
-
Domestic/Import: Import
-
End Style: Push-Fit x Compression
-
Media: Water
-
Mfg Standards/Approvals: ASME A112.18.1-2011|CSA B125.1-11|ANSI/NSF 61/372
-
Nominal Size: 1/2 x 3/8 in
-
Pressure Rating: 200 psi
-
Softgoods Material: EPDM/Polysulfone
-
Temperature Rating: 200 deg F
-
Type: Angle
-
Valve Type: Angle
-
Outlet Size: 3/8"
-
Body Pattern: Angle
-
Standards Met: ASTM F1960, NSF, ASTM F877
-
Insertion Depth: 15/16"
-
Max Pressure (PSI): 200
-
Tubing Compatibility: CPVC, OD Controlled Copper, PEX
-
Temperature Range (F): 40°F to 180°F
-
Fitting System Compatibility: Push Fit
-
Actuation Type: 1/4 Turn
-
End Connection: Push-to-Connect x Compression
-
End to End Distance: 2.58 Inch
-
Inclusions/Features: Full Port Brass Ball Valve
-
Applicable Standard: ASME A112.18.1/CSA B125.1-12, NSF/ANSI/CAN 61/372
-
Lead-Free: Lead-Free
-
Used On: Copper, CPVC, PEX, PE-RT HDPE Pipe
-
Pipe Size: 1/2 in. x 3/8 in. Comp.
-
ConnectionType: Compression
-
Flow Rate: 4 gpm
-
Port Type: Full
-
Product Type: Water Supply Stops
-
Inlet Size: 1/2"
