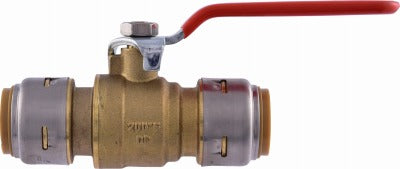

Sharkbite 22185-0000LFA 3/4 in Lead Free Ball Valve 200 Psi

Product Description

The SHARKBITE 22185-0000LFA is a 3/4 inch lead-free ball valve with a push-fit end connection designed for fast, tool-free shutoff on water distribution systems. Constructed from dezincification-resistant (DZR) brass, it is rated to 200 PSI and 200 degrees F, making it suitable for both cold and hot water service. The integral tube liner is included, so no separate insert is required. Design is certified to ASSE 1061 and NSF 61. Licensed plumbers and pipefitters install this valve on residential and light commercial supply lines where a reliable isolation point is needed without soldering or threading.

This valve accepts copper tubing (CTS), CPVC, and PEX pipe at the 3/4 inch size. The push-fit mechanism allows connection without flux, solder, cement, or pipe threading, which reduces labor time on new installations and retrofit work. It is certified for use on potable water and hydronic water distribution systems. The valve is also certified for underground applications as a manufactured joint without the need for an access panel, expanding its usable locations within a piping rough-in.

Key Features

• Push-fit connection — compatible with copper CTS, CPVC, and PEX pipe, integral tube liner included
• DZR brass body construction for corrosion resistance in water service
• Rated to 200 PSI and 200 degrees F
• Certified to ASSE 1061 and NSF 61 standards; listed with IAPMO
• Meets UPC, IPC, and CUPC requirements
• Certified for underground applications as a manufactured joint — no access panel required
• Lead-free compliant per Federal Law 111-380

Compatibility

Designed for use with 3/4 inch copper tubing (CTS), CPVC, and PEX pipe on potable water and hydronic water distribution systems. Suitable for residential and light commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local codes and the IPC or UPC as adopted. Shut off the water supply and depressurize the line before installing or removing any fitting. Ensure pipe ends are cut square, deburred, and fully inserted to the depth mark before engaging the push-fit connection. Do not exceed the rated pressure and temperature limits of 200 PSI and 200 degrees F.
