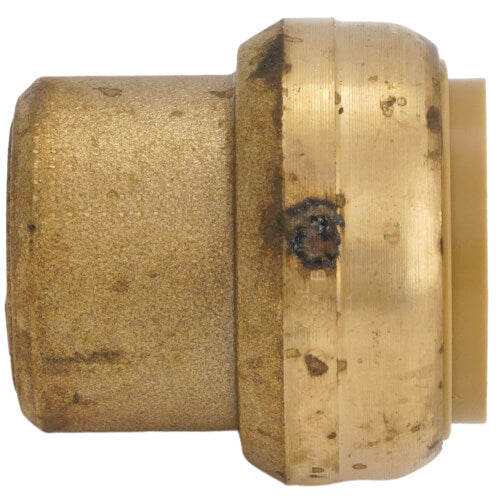

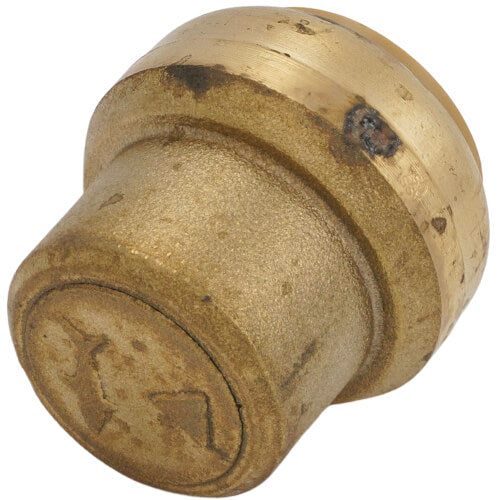

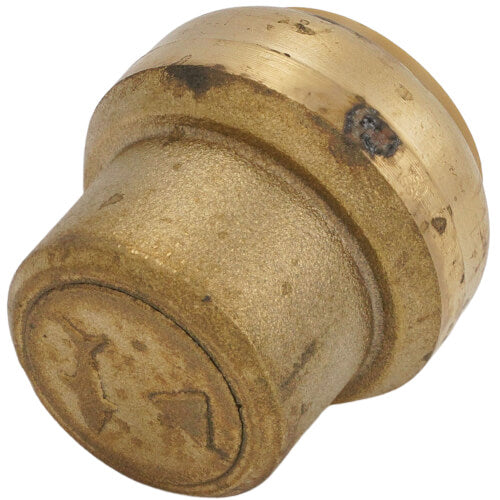

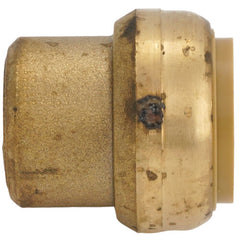

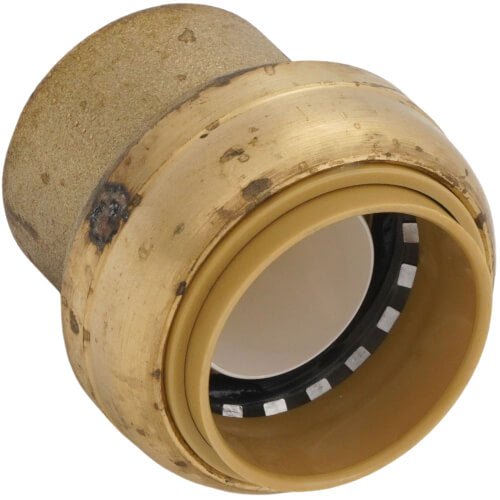

SHARK UR520 1 End Stop

Product Description

The SHARK UR520 is an effective one-inch end stop created for easy pipe installation. This fitting uses a push-fit connection, which removes the need for soldering work. It is made from corrosion-resistant DZR brass and meets the standards for use in potable water systems. The SHARK UR520 can handle pressures of up to 200 PSI and can operate at temperatures reaching 200 degrees Fahrenheit.

• Push-fit connection for simple installation.
• Corrosion-resistant DZR brass design.
• Suitable for both potable water and hydronic heating applications.

Product Highlights

The SHARK UR520 ensures quick and efficient installation of pipes with a reliable push-fit system. It is versatile for different piping applications while maintaining high performance in durability and safety.

Product Information

Standard Information

• MPN: UR520
• Size: 1 inch

Technical Specifications

• Material: Brass
• Fitting System Compatibility: Push Fit
• Max Pressure (PSI): 200
• Max Temperature (F): 200 degrees
• Application: Heating
• Lead Free: Yes
• Standards Met: NSF
• Warranty: 25 Years
• Insertion Depth: 1-5/16 inches
• PEX Size: 1 inch
