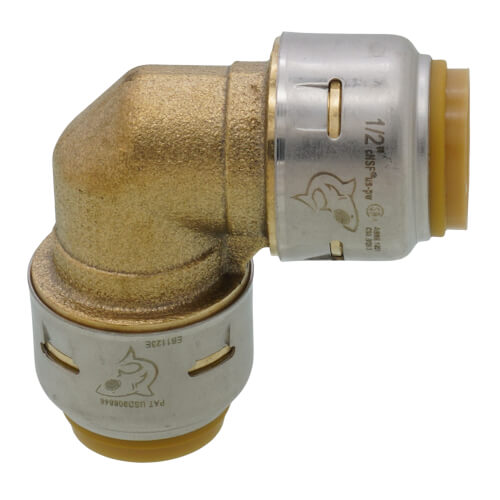

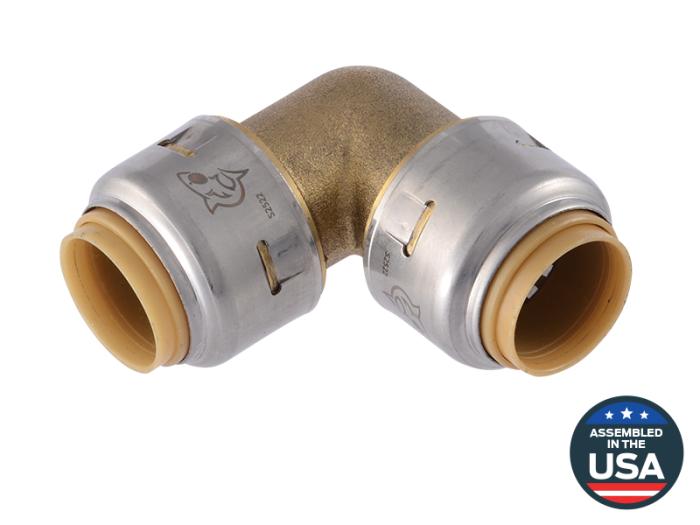

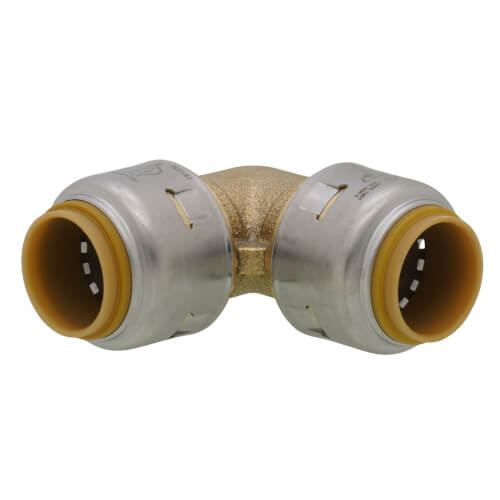

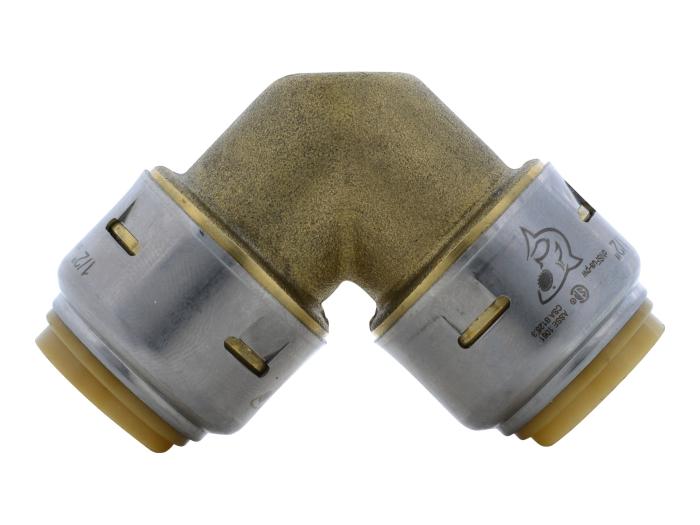

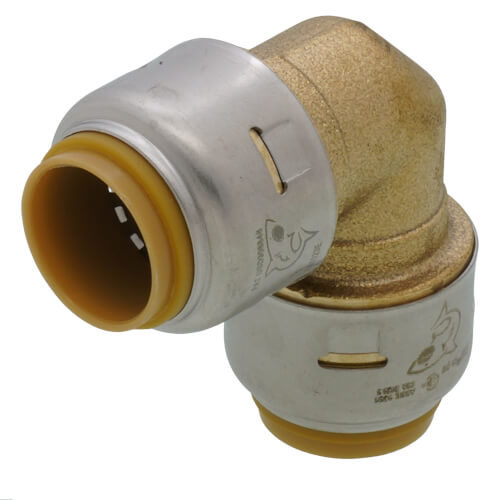

SHARK UR248 Max 90-Degree Elbow

Product Description

The SHARK UR248 Max 90-Degree Elbow is designed for connecting potable water pipes efficiently. Constructed with durable DZR brass, this elbow connector fits PEX, copper, and CPVC pipes without the need for soldering or glue. This fitting is ideal for both residential and commercial applications, ensuring reliable performance in wet lines and hydronic heating.

• Push-to-connect design for easy installation.
• Rated for a maximum temperature of two hundred degrees Fahrenheit.
• Certified for potable water use.

Product Highlights

Utilize the SHARK UR248 fitting for quick and secure pipe connections in tight spaces, making it a preferred choice among plumbing professionals.

Product Information

Standard Information

• Manufacturer: Reliance Worldwide Corporation
• Material: DZR Brass

Technical Specifications

• MPN: UR248
• Fitting System Compatibility: Push Fit
• Product Type: Elbow
• Angle: 90 degrees
• Nominal Size: 1/2 inch
• Pipe Size: 1/2 inch x 1/2 inch
• Connection Size: 1/2 x 1/2
• Connection Type: SB x SB
• Tubing Compatibility: PEX, OD Controlled Copper, CPVC
• Max Pressure (PSI): 200
• Pressure Rating: 250 psi
• Temperature Rating: 200 degrees Fahrenheit
• Max Temp: 200 degrees Fahrenheit
• Insertion Depth: fifteen-sixteenths
• Application: Heating
• Standards Met: NSF
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
• Finish: Natural Brass/Polished Chrome
