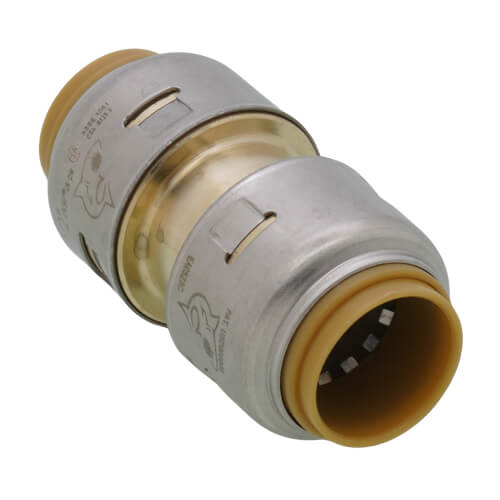

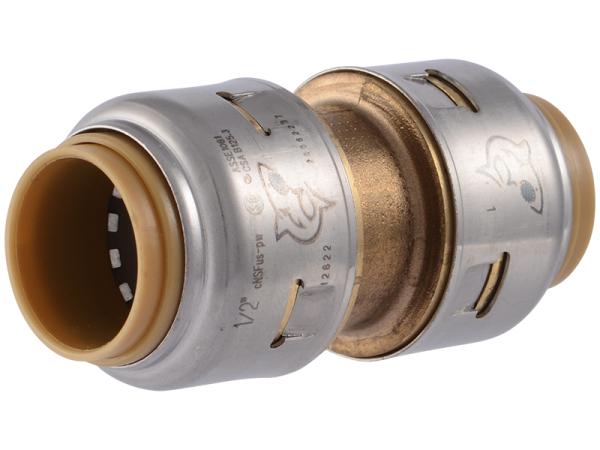

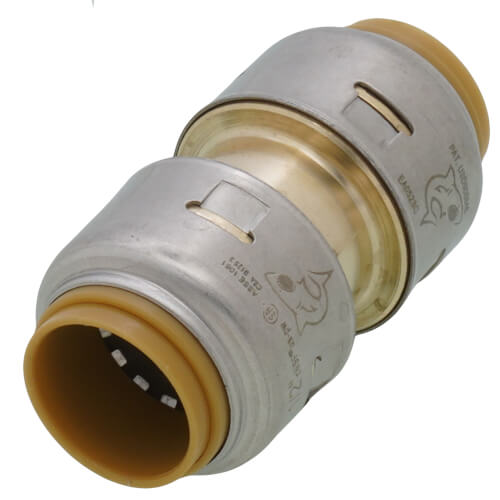

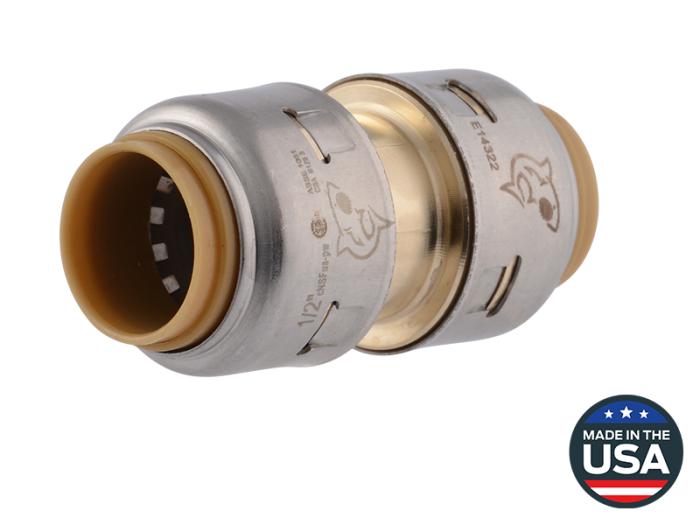

Shark UR008 SharkBite Max 1/2 Push-To-Connect Coupling

Product Description

The SharkBite Max UR008 is a push-to-connect coupling designed for connecting one-half inch PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipes. This coupling features a durable DZR brass body, suitable for both potable water and radiant heating systems. Installation can occur on wet lines and allows for immediate pressure testing. It is approved for behind-the-wall and underground applications when properly wrapped.

• Connects 1/2 PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe.
• Constructed with DZR brass and stainless steel retainer.
• Approved for behind-the-wall and underground applications.

Product Highlights

The SharkBite Max UR008 is ideal for various plumbing and heating installations, offering easy connections without the need for additional tools.

Product Information

Standard Information

• Brand: Shark
• MPN: UR008

Technical Specifications

• Pipe Size: 1/2 in. x 1/2 in.
• Material: DZR Brass
• Maximum Pressure: 400 PSI
• Maximum Water Temperature: 200 Degrees F
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: CPVC, OD Controlled Copper, PEX
• Application: Heating
• Insertion Depth: 15/16 in.
• Length: 2.09 Inches
• Width: 1.00 Inch
• Height: 1.00 Inch
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
