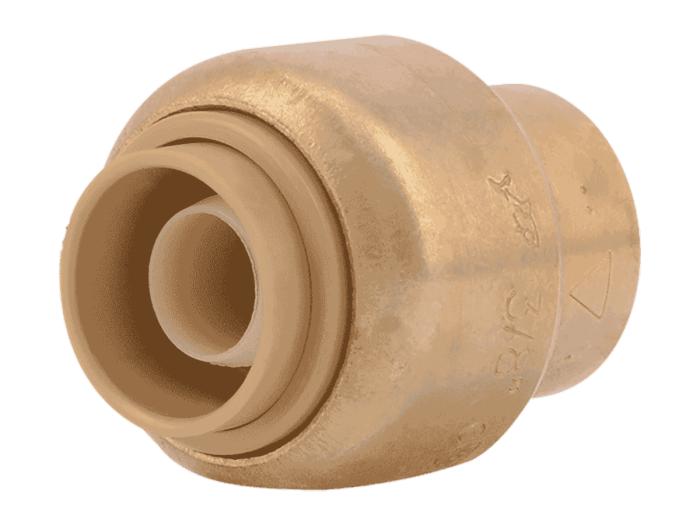

SHARK U512LF End Stop, Push-to-Connect Brass

Product Description

The SHARK U512LF end stop is a reliable push-to-connect fitting designed to seal off the end of water pipes made from various materials including PEX, copper, CPVC, and PE-RT. This fitting has stainless steel teeth that securely grip the pipe along with an O-ring that provides a leak-free seal. It can be easily disconnected using a specialized disconnect tool. Made from brass, it is resistant to corrosion and long-lasting. The product is certified to NSF/ANSI 61 standards, making it suitable for potable water systems. It is also approved for underground and hidden applications, where wrapping is required for underground use.

• Push-to-connect design for quick and easy installation.
• Ideal for both potable water systems and hydronic heating.
• Compatible with PEX, copper, CPVC, and PE-RT tubing.

Product Highlights

The SHARK U512LF fitting simplifies pipe connections and ensures durability and safety in water applications.

Product Information

Standard Information

• Material: Brass
• Application: Heating

Technical Specifications

• MPN: U512LF
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: PEX
• Size: 3/8
• Water Connection: 3/8
• Push-In Size: 3/8 ID 1/2 OD
• Max Pressure (PSI): 200
• Max Temperature (F): 200
• Product Certification Standard: NSF/ANSI 61
• Lead Free: Yes
• Insertion Depth: 15/16
• Standards Met: NSF
