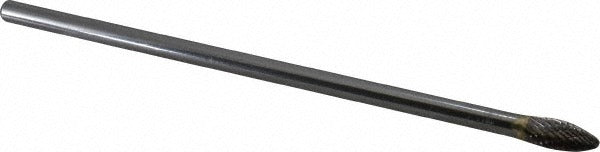

Sgs Pro 16703 Carbide Flame Bur 5/16 Inch 1/4 Shank

Product Description

The SGS PRO 16703 is a double cut tungsten carbide flame-shaped abrasive bur designed for aggressive material removal and finishing in metal fabrication and maintenance applications. Built to SH-2L6 industry specification, it features a 5/16-inch cutting diameter and runs at up to 45,000 RPM. The uncoated tungsten carbide head delivers consistent cutting performance across a wide range of ferrous and non-ferrous metals. With an overall length of 6.75 inches and a 1/4-inch shank, it fits standard die grinders and rotary tools used by machinists, pipefitters, and tool-and-die professionals.

This bur is suited for deburring, contouring, and material removal on steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. The flame profile is particularly effective for working in recessed areas, weld cleanup, and port matching. It is commonly used in light industrial, manufacturing, and heavy maintenance environments where precise material removal is required on hard metals.

Key Features

• Double cut tooth style for fast, efficient stock removal with reduced chatter
• Tungsten carbide head construction for long service life on hard metals
• Flame head shape effective in recessed areas and contoured surfaces
• Rated up to 45,000 RPM for use with high-speed die grinders
• 1/4-inch shank fits standard collets on most rotary and die grinder tools
• Meets SH-2L6 industry specification for consistent interchangeable fitment

Compatibility

Designed as an SH-2L6 specification replacement bur compatible with die grinders and rotary tools accepting a 1/4-inch shank collet. Suitable for use on steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys.

Installation Notes

Installation is performed by machinists, fabricators, or maintenance technicians using a die grinder with a compatible 1/4-inch collet. Ensure the tool is fully powered down and depressurized before changing burs. Tighten the collet securely before operation and confirm the tool's rated RPM meets or exceeds the bur maximum of 45,000 RPM. Always use appropriate eye protection and work-holding methods when operating carbide burs on metal stock.
