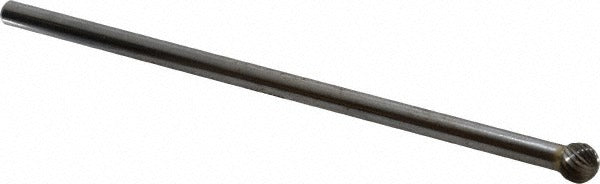

Sgs Pro 16425 Carbide Ball Bur Single Cut 1/4 Inch Shank

Product Description

The SGS PRO 16425 is a single-cut carbide abrasive bur with a ball-shaped head, designed for material removal, deburring, and surface shaping in metal fabrication, tool and die work, and general machining applications. The carbide head measures 0.313 inches in length and the overall tool length is 6.313 inches, providing extended reach into deep cavities or confined workspaces. The 0.25-inch shank fits standard die grinders and rotary tools. Single-cut fluting delivers smooth stock removal and is well-suited for use on ferrous metals, cast iron, and hardened materials.

This bur is used in industrial and trade settings where precision material removal is required. Typical applications include port work, weld blending, mold and die finishing, and deburring of machined components. The ball head geometry allows for contouring, slot profiling, and working in concave surfaces. The extended 6.313-inch overall length makes it practical for deep-reach operations that shorter burs cannot access.

Key Features

• Ball head geometry for contouring, profiling, and concave surface work
• Carbide construction for durability and performance on ferrous and hardened materials
• Single-cut tooth style delivers smooth, controlled material removal
• Extended overall length of 6.313 inches for deep-reach applications
• Standard 0.25-inch shank fits most die grinders and rotary tools
• Conforms to industry specification SD-3L6

Compatibility

Designed to fit die grinders and rotary tools with a standard 0.25-inch collet, conforming to industry specification SD-3L6.

Installation Notes

Installed by machinists, tool and die makers, fabricators, and metalworking tradespeople using compatible die grinders or rotary tools. Ensure the tool is powered down and collet is fully tightened before operation. Wear appropriate eye protection and secure the workpiece before use. Do not exceed the maximum RPM rating of the tool or bur.
