Sgs Pro 16325 Carbide Bur Cylinder with Radius SC-1L6

Product Description

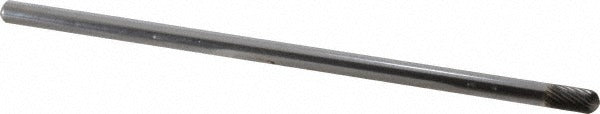

The SGS PRO 16325 is a single cut carbide rotary bur with a cylinder-with-radius head geometry, conforming to industry specification SC-1L6. Built from solid carbide, it delivers controlled material removal in ferrous and non-ferrous metals, hardened steels, cast iron, and hard plastics. The 1/4 inch shank diameter fits standard die grinders, rotary tools, and flexible-shaft machines. At an overall length of 6.5 inches, it provides extended reach into recessed cavities and deep port work where shorter burs cannot access. Single cut tooth style produces a smooth finish and generates coarser chips, reducing clogging during aggressive stock removal.

This bur is used in metal fabrication, tool and die, welding and weld prep, foundry, and general machining applications. It suits tasks such as deburring, porting, blending, and surface finishing in tight or deep workpiece geometries. The cylinder-with-radius profile allows operators to work flat surfaces and corner transitions in a single pass without repositioning. It is appropriate for both bench-mounted rotary units and handheld die grinders in shop or field environments.

Key Features

• Solid carbide construction for durability in hardened and abrasive materials
• Single cut tooth style for smooth finish and efficient chip evacuation
• Cylinder with radius head profile blends flat and contoured surfaces in one pass
• 6.5 inch overall length provides extended reach into deep cavities and ports
• 1/4 inch shank fits standard die grinders and rotary tool chucks
• Conforms to industry specification SC-1L6 for consistent geometry and sizing

Compatibility

Designed for use with die grinders, rotary tools, and flexible-shaft machines accepting a 1/4 inch shank collet. Conforms to SC-1L6 industry specification for direct interchange with other burs of the same classification.

Installation Notes

Installation is performed by machinists, fabricators, and tool and die professionals. Ensure the rotary tool or die grinder is powered off and the collet is fully released before inserting or removing the bur. Secure the shank fully into the collet to the recommended engagement depth and tighten the collet nut before operating. Always wear eye protection and secure the workpiece before use.
