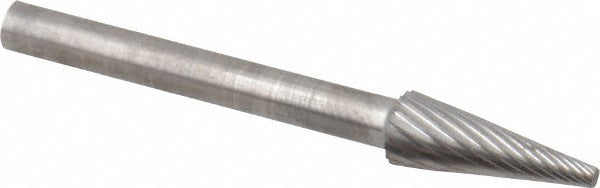

Sgs Pro 15775 Tungsten Carbide Cone Bur SM-53 Single Cut

Product Description

The SGS PRO 15775 is a single-cut tungsten carbide abrasive bur with a cone head geometry conforming to industry specification SM-53. Designed for precision material removal, it operates at speeds up to 75,000 RPM and fits any rotary tool or die grinder accepting a 1/8-inch shank. The cone head measures 3/16 inch in cutting diameter with a 16-degree included angle, producing controlled, consistent stock removal on a wide range of metallic workpieces. Machinists, fabricators, and tool-and-die technicians use this bur for deburring, port matching, chamfering, and contour work in production and maintenance settings.

This bur is suited for use on ferrous and non-ferrous materials including steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys. The single-cut tooth style generates a smooth finish and produces longer, manageable chips rather than fine dust, which helps reduce clogging during aggressive cuts. It is a strong fit for aerospace, automotive, and heavy fabrication applications where tight inside profiles or conical surfaces require precise hand-controlled metal removal.

Key Features

• Cone head profile with SM-53 industry specification for standardized fit and performance
• Tungsten carbide construction for long service life on hard and abrasive materials
• Single-cut tooth style delivers smooth surface finish and efficient chip evacuation
• Rated to 75,000 RPM for high-speed die grinder compatibility
• 16-degree included angle for precise conical cavity and chamfer work
• 1/8-inch shank fits standard collets on most pneumatic and electric die grinders

Compatibility

Designed for use with any die grinder or rotary tool accepting a 1/8-inch shank collet. Suitable for cutting steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys.

Installation Notes

Installed by machinists or fabricators using standard 1/8-inch collet die grinders. Ensure the grinder is powered off and the collet is fully seated before securing the shank. Do not exceed the 75,000 RPM maximum rating. Always wear appropriate eye protection and follow applicable shop safety guidelines when operating rotary cutting tools.
