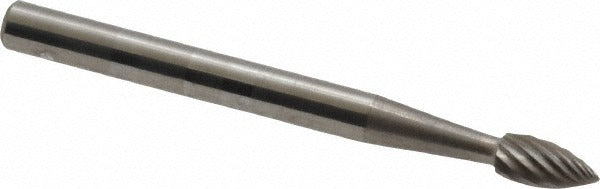

Sgs Pro 14550 Flame Abrasive Bur 1/8 Inch Shank

Product Description

The SGS PRO 14550 is a flame-shaped abrasive bur designed for precision material removal in metalworking and fabrication applications. Built to industry specification SH-41, this bur features a solid tungsten carbide head with a single-cut tooth style, delivering controlled stock removal and a consistent finish. The 1/8 inch shank fits standard die grinders and rotary tools used across machine shops, fabrication facilities, and maintenance environments. With a maximum rated speed of 100,000 RPM, it handles high-speed deburring, contouring, and material shaping on a wide range of metals. Licensed trades and skilled machinists rely on this type of tooling for porting, chamfering, and weld cleanup work.

This bur is suited for use on steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys. The flame head geometry makes it well matched for contoured surfaces, inside radii, and cavity work where a ball or cylinder profile would not reach cleanly. It is commonly used in general metalworking, tool and die, aerospace component finishing, and HVAC or plumbing fitting preparation where burr removal on tight geometries is required.

Key Features

• Flame head shape per industry specification SH-41 for contoured and cavity work
• Solid tungsten carbide construction for hardness and wear resistance
• Single-cut tooth style for controlled material removal and smoother finish
• Rated to 100,000 RPM for compatibility with high-speed rotary tools and die grinders
• Uncoated head - no coating to flake or delaminate during aggressive use
• 1/8 inch shank fits the most common collet sizes on standard die grinders

Compatibility

Designed as an SH-41 flame-style carbide bur for use with die grinders and rotary tools accepting a 1/8 inch collet. Compatible with work materials including steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys.

Installation Notes

Install in a die grinder or rotary tool with a properly sized 1/8 inch collet and tighten securely before operation. Always verify the tool RPM rating does not exceed the bur maximum of 100,000 RPM before use. Wear appropriate eye protection and secure the workpiece before grinding. Inspect the bur for cracks or damage before each use and replace if any defects are found.
