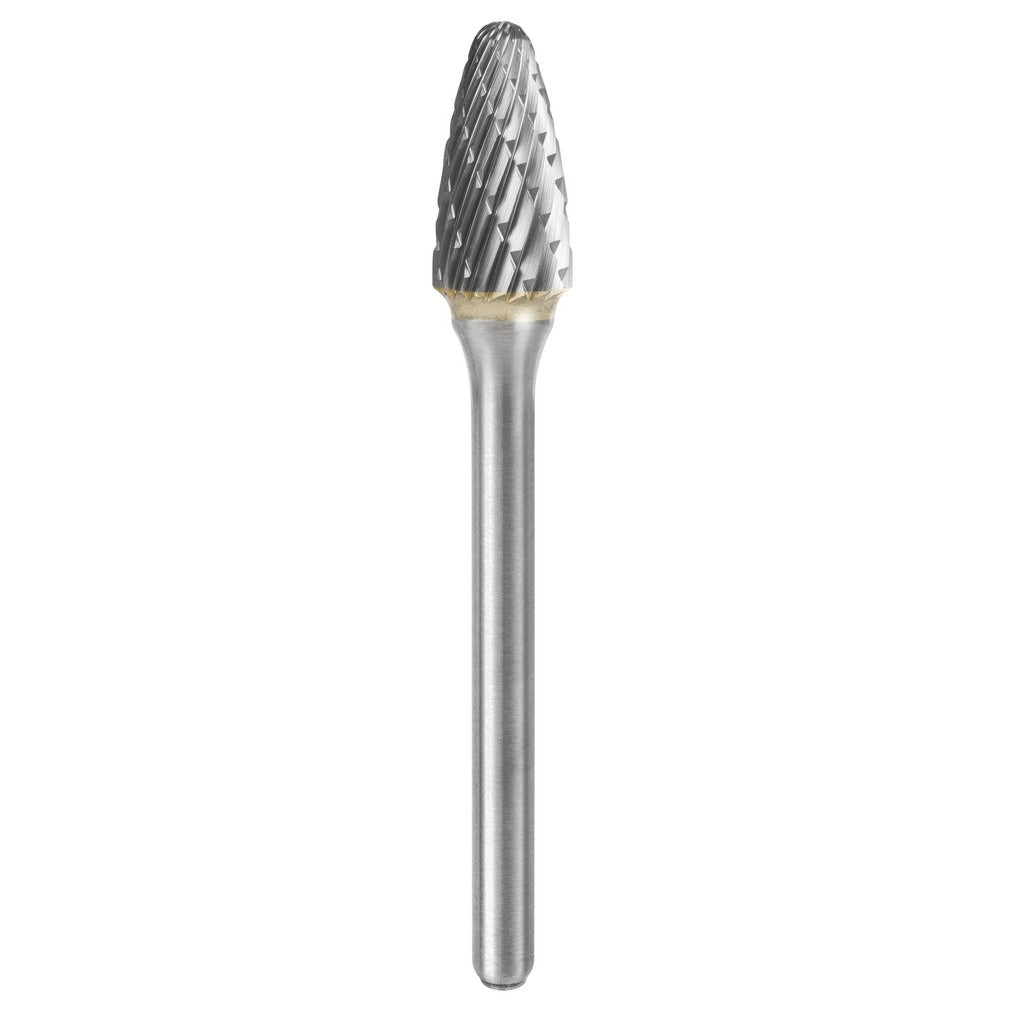

Sgs Pro 13728 Carbide Bur Tree with Radius SF-51

Product Description

The SGS PRO 13728 is a double cut carbide rotary bur in an SF-51 tree with radius head shape, designed for aggressive material removal and finishing in metalworking and fabrication applications. The head is machined from solid carbide for hardness and heat resistance, and the double cut tooth pattern shears material in two directions to clear chips efficiently and reduce hand fatigue during extended use. The 1/8 inch shank fits standard die grinders, rotary tools, and flex-shaft machines. Head length measures 0.5 inches. This bur is used by machinists, welders, pipefitters, and fabricators for deburring, porting, shaping, and blending in ferrous and non-ferrous metals.

The SF-51 tree with radius profile is suited for profiling concave contours, blending weld seams, and working in recessed or curved areas that flat or cylindrical burs cannot reach. Common applications include die and mold work, port and chamber work in engine components, pipe prep, and general deburring of castings and forgings. The 1/8 inch shank diameter makes it compatible with a wide range of air-powered and electric rotary tools used in shop and field settings.

Key Features

• SF-51 tree with radius head shape for profiling concave and curved surfaces
• Double cut tooth pattern for fast material removal and efficient chip clearing
• Solid carbide head for hardness and durability in ferrous and non-ferrous metals
• 1/8 inch shank fits standard die grinders, rotary tools, and flex-shaft handpieces
• 0.5 inch head length for reach into recessed areas

Compatibility

Designed for use with die grinders, rotary tools, and flex-shaft machines accepting a 1/8 inch shank. Suitable for ferrous metals, non-ferrous metals, and similar hard materials.

Installation Notes

Install the shank fully into the collet of the rotary tool and tighten securely before operation. Always wear appropriate eye protection and gloves when operating rotary burs. Inspect the bur for cracks or damage before each use and do not operate at speeds exceeding the tool or bur manufacturer rating. Power down and disconnect the tool from the air supply or electrical source before changing burs.
