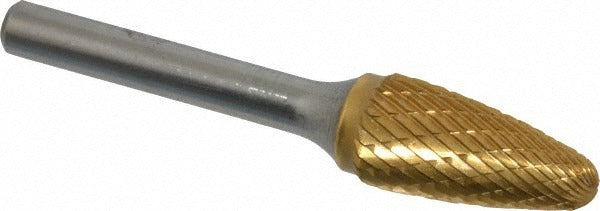

Sgs Pro 13385 Carbide Bur SF-5 Tree Radius Double Cut

Product Description

The SGS PRO 13385 is a solid carbide abrasive bur in the SF-5 tree with radius end geometry, designed for aggressive material removal and finishing in metalworking, fabrication, and tool and die applications. Featuring a double cut tooth style and a titanium nitride (TiN) coating, this bur delivers fast stock removal with extended tool life. The 1/2 inch cutting diameter and 1 inch length of cut make it well suited for shaping, deburring, and contouring work in hard metals and alloys. It mounts on a standard 1/4 inch shank and is compatible with most pneumatic die grinders and electric rotary tools used in trade and industrial settings.

This bur is used in metal fabrication shops, maintenance and repair operations, and tooling environments where precise material removal is required on ferrous and non-ferrous metals, stainless steel, hardened steel, and cast iron. The SF-5 tree with radius end profile is particularly effective for blending radii, profiling mold cavities, and accessing contoured or recessed workpiece surfaces. It is a standard single-piece consumable intended for direct use by machinists, fabricators, and die grinders.

Key Features

• SF-5 tree with radius end geometry for contour blending and cavity profiling
• Double cut tooth style for fast stock removal with reduced chatter
• Solid carbide construction for rigidity and wear resistance in hard materials
• TiN coating extends cutting edge life and reduces heat buildup
• 1/4 inch shank fits standard die grinder collets
• 1/2 inch cutting diameter with 1 inch length of cut

Compatibility

Designed for use with pneumatic or electric die grinders and rotary tools equipped with a 1/4 inch collet. Meets SF-5 industry specification for tree with radius end carbide burs.

Installation Notes

Installation is performed by machinists or fabricators using a die grinder with the appropriate collet size. Ensure the tool is powered off and the collet is fully tightened before operation. Always wear appropriate eye and face protection when operating rotary burs. Do not exceed the maximum RPM rating of the host tool or the bur.
