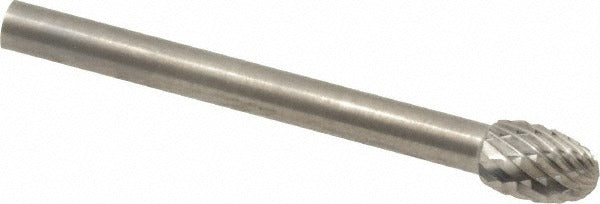

Sgs Pro 13203 Abrasive Bur Oval Double Cut SE-53

Product Description

The SGS PRO 13203 is a tungsten carbide abrasive bur with an oval head profile, designed for aggressive material removal and fine finishing in rotary tool and die grinder applications. Built to industry specification SE-53, it features a double-cut tooth style that produces a faster cut rate with a smoother finish than single-cut designs. The 3/16-inch cutting diameter and 9/32-inch length of cut make it well suited for working in tight contours, recesses, and curved surfaces. At up to 75,000 RPM, it delivers consistent performance across a range of ferrous and non-ferrous metals. Machinists, tool-and-die makers, and fabricators rely on this bur for deburring, porting, and shaping operations.

The SGS PRO 13203 is appropriate for use on steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. It is well matched to die grinders, rotary tools, and flexible shaft machines fitted with a 1/8-inch collet. Typical applications include weld cleanup, port work, mold and die finishing, and contour grinding in both production and maintenance shop environments. The 1/8-inch shank diameter makes it compatible with a wide range of standard rotary tool setups found in machine shops, fabrication facilities, and MRO operations.

Key Features

• SE-53 industry specification oval head profile for contour work and recesses
• Double-cut tooth style for faster material removal with a smoother surface finish
• Tungsten carbide head construction provides extended wear life on hard materials
• Rated up to 75,000 RPM for compatibility with high-speed die grinders and rotary tools
• Uncoated head for consistent cutting performance across all listed materials
• 1/8-inch shank fits standard collets on most rotary tools and die grinders

Compatibility

Designed for use with rotary tools and die grinders equipped with a 1/8-inch collet. Rated for use on steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys.

Installation Notes

Install the bur into a clean, properly sized collet and tighten securely before operation. Always verify that the tool's rated RPM meets or exceeds the 75,000 RPM maximum before mounting. Wear appropriate eye protection and secure the workpiece before engaging the bur. Inspect the shank and head for cracks or chips before each use and remove from service if damage is found.
