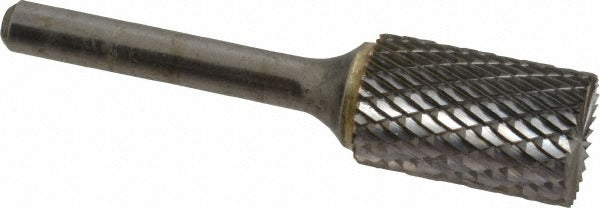

Sgs Pro 11053 SB-6 Carbide Bur Cylinder End Cut 5/8 in

Product Description

The SGS PRO 11053 is a double-cut tungsten carbide rotary bur with an SB-6 cylinder-with-end-cut geometry. It features a 5/8-inch cutting diameter and a 1-inch length of cut, mounted on a 1/4-inch shank for use in standard die grinders and rotary tools. The double-cut tooth pattern removes material aggressively while leaving a smoother finish than single-cut styles. With a maximum speed rating of 22,500 RPM, this bur is suited for high-speed stock removal on hard and difficult-to-machine metals. Machinists, fabricators, and tool-and-die technicians are the primary users.

This bur is designed for deburring, shaping, grinding, and surface preparation on a wide range of metals including steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. Typical applications include weld cleanup, port matching, cavity blending, and edge breaking in production shops, maintenance environments, and field fabrication settings. The cylinder-with-end-cut profile allows both side cutting and end plunge work, making it versatile for inside corners and flat-bottomed cavities.

Key Features

• SB-6 cylinder-with-end-cut geometry for side and plunge cutting
• Double-cut tooth style for fast material removal with reduced chatter
• Tungsten carbide head for hardness and wear resistance on ferrous and non-ferrous metals
• 5/8-inch cutting diameter with 1-inch length of cut
• 1/4-inch shank fits standard die grinder collets
• Rated to 22,500 RPM for high-speed operation

Compatibility

Designed for use with standard die grinders and rotary tools equipped with a 1/4-inch collet. Suitable for stock removal and finishing on steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys.

Installation Notes

Install the 1/4-inch shank fully into the die grinder collet and tighten securely before operation. Always wear appropriate eye protection and gloves when operating rotary burs. Do not exceed the 22,500 RPM maximum speed rating. Inspect the bur for cracks or damage before each use and replace if any wear affecting concentricity is observed.
