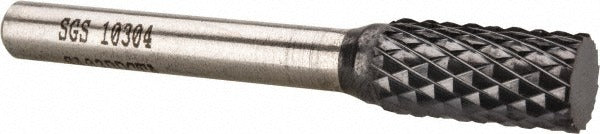

Sgs Pro 10304 Carbide Abrasive Bur Cylinder SA-3 3/8 in

Product Description

The SGS PRO 10304 is a tungsten carbide abrasive bur with a cylinder head profile conforming to industry specification SA-3 DDC. Designed for aggressive material removal in metalworking and fabrication, this bur features an Omega Cut tooth style that produces fast stock removal with reduced loading and chatter. It accepts a standard 1/4-inch shank, making it compatible with most pneumatic and electric die grinders used by machinists, pipefitters, and fabricators. The cutting head measures 3/8 inch in diameter with a 3/4-inch length of cut, and the overall tool length is 2.5 inches. Rated to 37,500 RPM for high-speed rotary applications.

This bur is suited for deburring, porting, shaping, and surface blending on a wide range of metals in industrial and maintenance-repair settings. Common applications include weld cleanup, port matching, edge breaking, and cavity work on parts fabricated from steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. It is appropriate for use in both production shops and field service environments where a 1/4-inch collet die grinder is the standard tool.

Key Features

• Cylinder head profile per SA-3 DDC industry specification for consistent fitment and performance expectations
• Omega Cut tooth style reduces loading and vibration for smoother, faster stock removal
• Solid tungsten carbide head construction provides wear resistance on hard and abrasive materials
• Rated to 37,500 RPM for compatibility with high-speed pneumatic and electric die grinders
• Uncoated head - no coating delamination risk during extended use on ferrous and non-ferrous metals
• Standard 1/4-inch shank diameter fits the most common die grinder collet sizes

Compatibility

Designed for use with die grinders accepting a 1/4-inch shank collet. Suitable for material removal on steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys.

Installation Notes

Install into a 1/4-inch collet die grinder and tighten the collet securely before operation. Ensure the tool RPM rating of 37,500 meets or exceeds the grinder speed before running at full speed. Always wear appropriate eye protection and follow applicable ANSI and OSHA safety requirements for rotary burr use. Inspect the shank for wear or runout before each use and replace any bur showing cracks or chipping in the cutting head.
