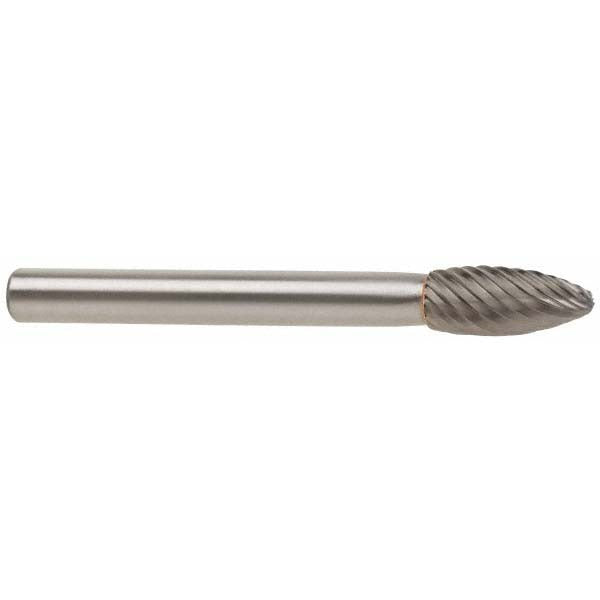

Sgs Pro 10293 Tungsten Carbide Flame Bur SH-5 Omega Cut

Product Description

The SGS PRO 10293 is a flame-shaped tungsten carbide abrasive bur designed for aggressive material removal in metalworking and fabrication applications. Built to the SH-5 DDC industry specification, it features a 1/2-inch cutting diameter and an Omega Cut tooth style that reduces chatter and loading during use. The 1/4-inch shank fits standard die grinders and rotary tools. With a 3-inch overall length and a 1-1/4-inch length of cut, this bur provides reach and control in tight cavities, ports, and contoured surfaces. It is rated to 28,000 RPM, making it suitable for high-speed power tools used in professional shop and field environments.

This bur is suited for use on a wide range of metals including steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. It is appropriate for deburring, porting, shaping, and weld preparation tasks. Fabricators, machinists, pipefitters, and maintenance technicians will find this bur applicable across both production and repair work where consistent material removal on hard metals is required.

Key Features

• Flame head shape for contouring, deburring, and cavity work in metal
• Omega Cut tooth style minimizes chatter and chip loading
• Tungsten carbide construction for durability on hard and abrasive materials
• 1/4-inch shank compatible with standard die grinders and rotary tools
• Rated to 28,000 RPM for high-speed tool use
• Uncoated head for consistent cutting geometry throughout tool life

Compatibility

Designed for use with standard 1/4-inch collet die grinders and rotary power tools. Suitable for cutting, shaping, and finishing operations on steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys per the SH-5 DDC industry specification.

Installation Notes

This bur is installed and operated by machinists, fabricators, and maintenance technicians using die grinders or rotary tools with a 1/4-inch collet. Ensure the tool is powered off and the collet is fully locked before mounting or removing the bur. Verify that the tool RPM rating meets or exceeds the bur maximum RPM rating of 28,000 before operation. Always wear appropriate eye protection and secure the workpiece before use.
