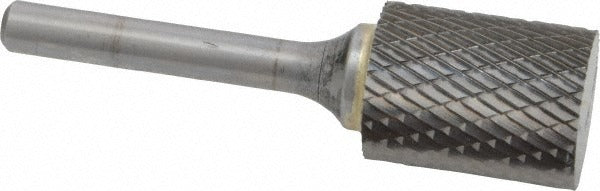

Sgs Pro 10253 Carbide Double Cut Cylinder Bur SA-7

Product Description

The SGS PRO 10253 is a double cut tungsten carbide rotary bur in the SA-7 cylinder profile, designed for aggressive material removal in metalworking and fabrication applications. The uncoated tungsten carbide head delivers consistent cutting performance across a wide range of ferrous and non-ferrous metals. With a 3/4 inch cutting diameter, 1 inch length of cut, and an overall length of 2.75 inches, this bur fits standard 1/4 inch collet die grinders and rotary tools. Rated to 19,000 RPM, it handles both roughing and finishing passes in production and maintenance environments. Machinists, fabricators, and tool-and-die technicians are the primary users.

This bur is suited for deburring, porting, contouring, and surface blending on steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. The cylinder shape makes it well matched for working flat surfaces, edges, and internal vertical walls where consistent material contact across the full cutting face is required. It performs in both hand-held die grinder setups and bench-mounted rotary tool configurations in shop and field environments.

Key Features

• SA-7 cylinder head profile for flat surface and edge work
• Double cut flute pattern for fast material removal with reduced chatter
• Tungsten carbide construction for long service life on hard metals
• 3/4 inch cutting diameter with 1 inch length of cut
• 1/4 inch shank fits standard die grinder collets
• Rated to 19,000 RPM for high-speed rotary tool use

Compatibility

Designed as a direct-fit SA-7 style cylinder carbide bur for any die grinder or rotary tool equipped with a 1/4 inch collet. Compatible with steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys per manufacturer specification.

Installation Notes

Installation is performed by machinists, fabricators, or maintenance technicians using a standard die grinder with a 1/4 inch collet. Ensure the grinder is powered off and depressurized or unplugged before inserting or removing the bur. Secure the shank fully into the collet and tighten to manufacturer torque spec for the grinder in use. Do not exceed the rated 19,000 RPM maximum for this bur.
