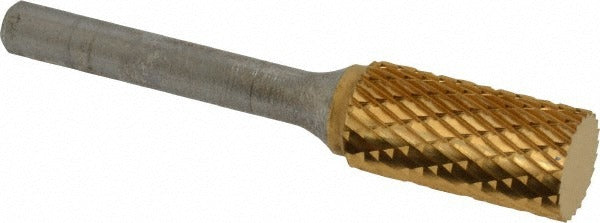

Sgs Pro 10185 SA-5 Carbide Bur Cylinder 1/2 in Double Cut

Product Description

The SGS PRO 10185 is a solid carbide rotary bur in the SA-5 cylinder with flat end profile, designed for aggressive material removal in metalworking, tool and die, and fabrication applications. The cutting head measures 1/2 inch in diameter with a 1 inch length of cut, mounted on a 1/4 inch shank for use with standard die grinders and rotary tools. A titanium nitride (TiN) coating reduces friction and extends cutting life. The double cut tooth pattern produces faster stock removal with a finer finish than single cut geometry, making this bur a practical choice for machinists, welders, and tool room technicians working in ferrous and non-ferrous metals.

This bur is suited for deburring, port matching, weld blending, and contouring work on steel, cast iron, aluminum, and similar materials. The cylinder with flat end shape allows work on flat surfaces, shoulders, and right-angle pockets. The 1/4 inch shank fits the collets of most air-powered and electric die grinders used in production and maintenance environments. It is appropriate for both shop and field use where consistent, repeatable cutting geometry is required.

Key Features

• SA-5 cylinder with flat end head shape for flat surfaces and square shoulder work
• Solid carbide construction for hardness and wear resistance across ferrous and non-ferrous materials
• TiN coating reduces heat buildup and extends cutting tool life
• Double cut tooth style provides fast material removal with a smoother surface finish
• 1/4 inch shank fits standard die grinder collets
• 1/2 inch cutting diameter with 1 inch length of cut for medium-scale contouring and deburring

Compatibility

Designed for use with die grinders and rotary tools accepting a 1/4 inch shank collet. Suitable for deburring and shaping ferrous metals, non-ferrous metals, and similar hard materials in machining and fabrication settings.

Installation Notes

Installation is performed by machinists, tool room technicians, or maintenance professionals using a standard die grinder with a 1/4 inch collet. Secure the shank fully in the collet and confirm the locking mechanism is tight before operating. Always wear appropriate eye protection and secure the workpiece before use. Do not exceed the rated RPM of the bur or the grinder.
