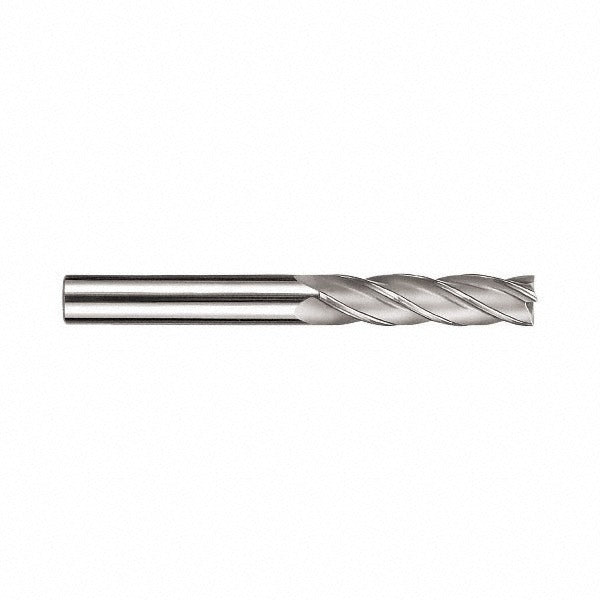

Sgs 93324 Square End Mill 1/8 in 4 Flute Solid Carbide

Product Description

The SGS 93324 is a solid carbide square end mill designed for precision milling in demanding metalworking and machining applications. Built to Series 1L-AD long-length specifications, it features a 0.125 inch mill diameter with a 0.75 inch length of cut and a 2.25 inch overall length. The four-flute geometry combined with a 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. The tool carries a DLC (Diamond-Like Carbon) coating, which reduces friction and extends tool life in abrasive materials. Micrograin carbide construction provides the hardness and edge retention required for high-speed, tight-tolerance work. Installed by machinists and tool-and-die professionals in CNC milling operations.

This end mill suits applications where a long-reach, small-diameter cutting tool is required. The long-series length makes it appropriate for slotting, profiling, and pocketing operations in recessed or deep-feature workpieces. The variable index flute spacing reduces harmonic chatter during cuts, making it well suited for finishing passes in ferrous and non-ferrous metals. The straight-cylindrical shank with h6 tolerance provides a secure, repeatable fit in standard collet and end mill holder systems.

Key Features

• Solid micrograin carbide construction for hardness and edge retention
• DLC coating reduces friction and extends tool life
• 30-degree spiral helix angle promotes efficient chip evacuation
• Variable index flute spacing reduces chatter during cuts
• Centercutting design allows plunge entry into workpiece
• Straight-cylindrical shank with h6 tolerance for precise holder fit

Compatibility

Designed as an OEM-style long-series square end mill for use in standard CNC machining centers and manual mills equipped with collet systems or end mill holders accepting a 0.125 inch straight-cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's tooling procedures. Ensure the spindle is fully stopped and locked out before changing tooling. Verify collet or holder bore size matches the 0.125 inch shank diameter before seating the tool. Do not exceed the recommended depth-of-cut or feed rates for the workpiece material and machine spindle specifications.
