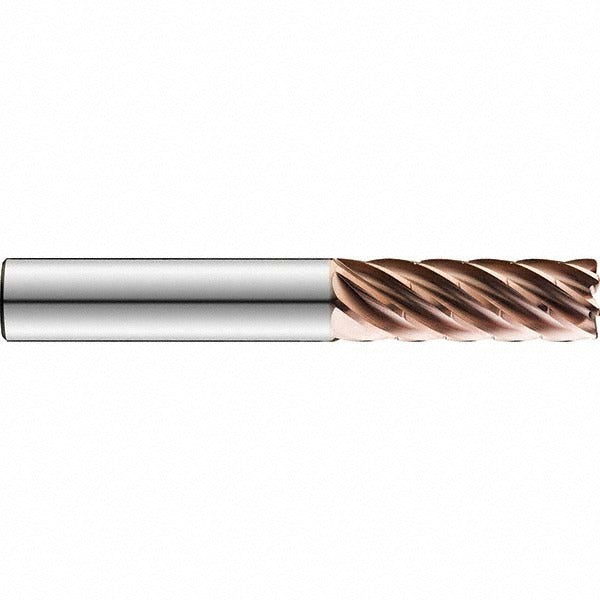

Sgs 77171 Corner Radius End Mill 3/8 in 7 Flute Carbide

Product Description

The SGS 77171 is a solid carbide corner radius end mill designed for finishing operations in ferrous and high-strength materials. It features a 3/8-inch mill diameter, a 0.030-inch corner radius, and seven helical flutes with a close pitch arrangement. The TiN coating reduces friction and extends tool life in demanding cuts. With a 1-1/2-inch length of cut and a 3-1/2-inch overall length, this is a long-reach configuration suited for deeper cavities and step milling. The right-hand cutting direction and variable index geometry help reduce chatter and improve surface finish on production runs.

This end mill is built for finishing passes on steel, stainless steel, cast iron, superalloys, and titanium. The micrograin carbide substrate maintains edge integrity in hard materials. It is used in CNC machining centers and milling machines held in end mill holders. The single-end design, straight-cylindrical shank, and 37-degree high helix angle make it well suited for profiling, contouring, and slotting operations in aerospace, die and mold, and general precision machining environments.

Key Features

• 0.030-inch corner radius reduces stress concentration and improves corner durability in finish milling
• Seven-flute close-pitch design increases metal removal rate while maintaining finish quality
• Solid micrograin carbide substrate provides rigidity and edge retention in hard and abrasive workpiece materials
• TiN coating lowers cutting friction and extends tool life in steel and stainless applications
• Variable index flute spacing reduces harmonic vibration for improved surface finish
• High helix angle promotes efficient chip evacuation in deep-cavity profiling

Compatibility

Designed for use with standard end mill holders. Compatible with workpiece materials including steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Series 77C long-length configuration.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Secure the shank fully into the end mill holder and verify runout with a dial indicator before engaging the cut. Ensure the machine spindle is fully stopped and the machine is in a safe state before tooling changes. Do not exceed manufacturer-recommended feed and speed parameters for the workpiece material and coating type.
