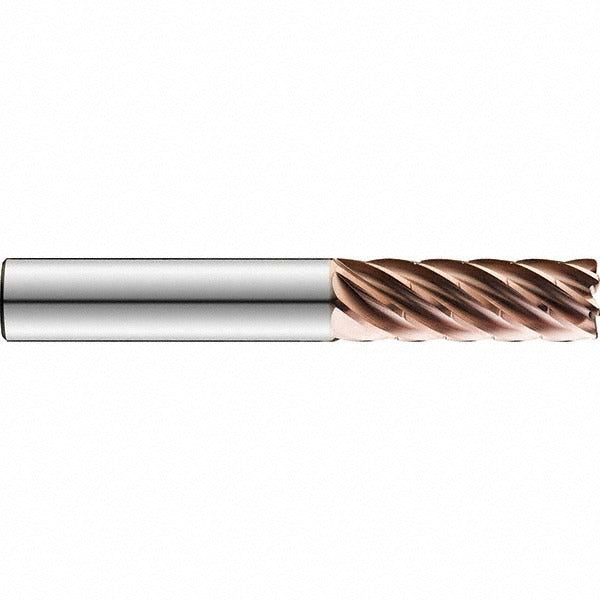

Sgs 77147 Corner Radius End Mill 3/8 in 7 Flute Carbide

Product Description

The SGS 77147 is a solid carbide corner radius end mill engineered for high-performance finishing operations in demanding materials. Built on the Series 77C platform, it features a 3/8-inch mill diameter, 7-flute configuration, and a 0.03-inch corner radius that reduces stress concentration at the cutting edge and extends tool life. The micrograin carbide substrate provides the hardness and wear resistance required for steel, stainless steel, cast iron, superalloys, and titanium. A TiN coating adds surface hardness and reduces friction at the cutting interface. At 0.05 pounds, the tool is lightweight and balances well in high-speed spindle setups. Licensed machinists and CNC operators are the primary installers of this tool.

The SGS 77147 is suited for finishing passes in ferrous and exotic alloy workpieces, including steel, stainless steel, cast iron, and superalloys and titanium. The close pitch and high helix style promote efficient chip evacuation in these materials. It is also rated for hard material secondary applications. The straight-cylindrical shank mounts directly into standard end mill holders. With a 1.625-inch length of cut and 3-inch overall length, it handles moderate-depth finishing profiles in vertical and horizontal machining centers.

Key Features

• Solid micrograin carbide construction for hardness and wear resistance in ferrous and exotic alloys
• 7-flute, close-pitch design increases surface contact for superior finish quality
• 0.03-inch corner radius reduces edge chipping and stress at the workpiece corner
• TiN coating reduces friction and extends cutting edge life
• Variable index flute spacing reduces chatter and harmonic vibration
• Right-hand cut, right-hand flute, high helix angle for efficient chip flow
• Chipbreaker geometry included; material removal type rated for finishing

Compatibility

Designed for use with standard end mill holders. Primary workpiece materials include steel, stainless steel, cast iron, superalloys, and titanium. Secondary workpiece material is hard material. UNSPSC Code: 27112803.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and locked out before changing tooling. Seat the straight-cylindrical shank fully into the end mill holder and torque the retention hardware to the holder manufacturer's specification. Confirm runout with a dial indicator before beginning a cut, as this is a finishing tool with tight diameter and corner radius tolerances.
