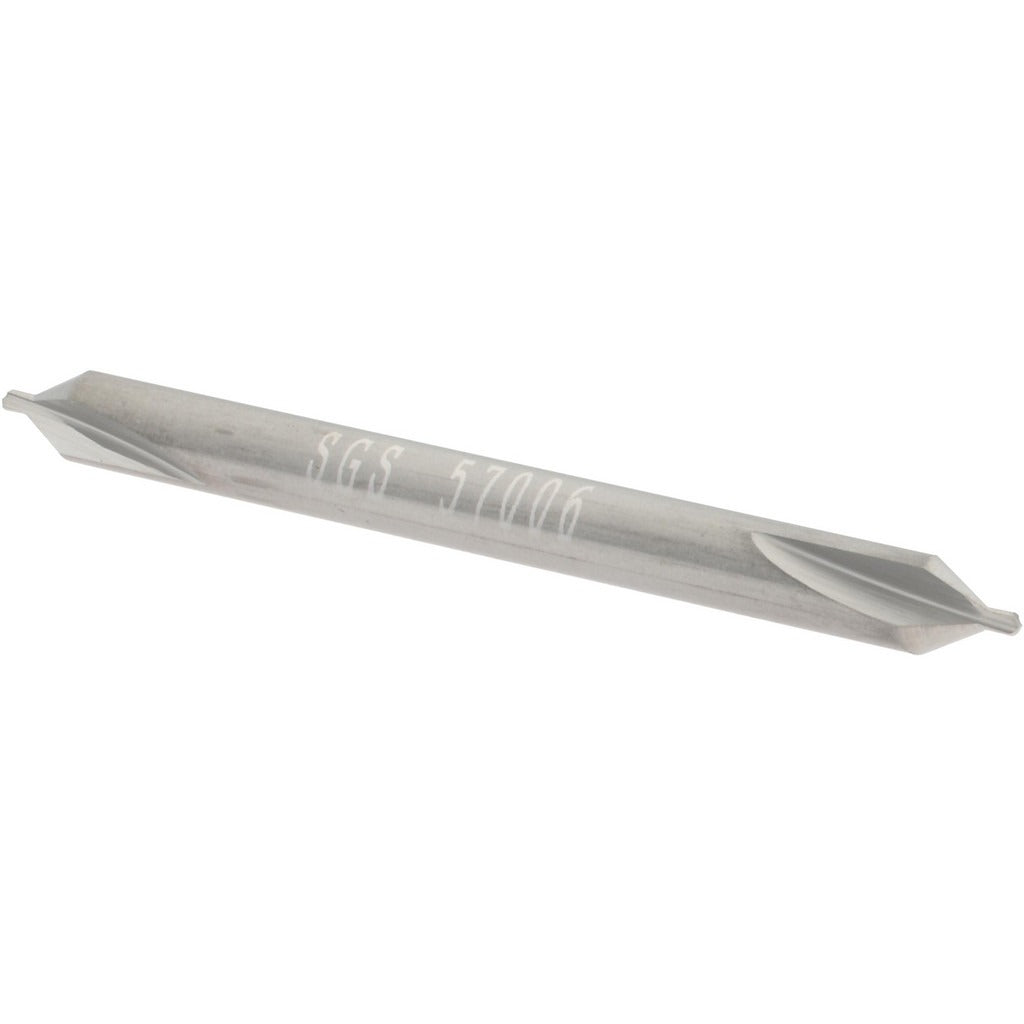

Sgs 57006 Combo Drill Countersink Size 0 Solid Carbide

Product Description

The SGS 57006 is a combination drill and countersink designed for precision hole preparation in metalworking and machining applications. Machined from solid carbide, this tool delivers the hardness and edge retention needed for demanding materials. The 57006 features a 1/8 inch body diameter, a 1/32 inch drill point diameter, and a 60-degree included angle — producing a clean, accurate countersink in a single operation. The right-hand cut geometry and plain cutting edge style make it suitable for standard CNC and manual drill press setups. At 1-1/2 inches overall length, it fits standard toolholding systems without extension. Machinists and tool-room technicians are the primary installers of this tool type.

The SGS 57006 is sized at Trade Size 0, targeting fine-diameter countersinking work where precision entry geometry is critical. It is suited for use on ferrous and non-ferrous metals, plastics, and composite materials in production machining, aerospace prep, and general fabrication environments. The double-end configuration extends tool life by providing two usable ends before the tool is retired. Series 301 designates SGS's standard combination center drill and countersink line. This tool is not tapered and is not classified as an aircraft-style or long-length variant.

Key Features

• Solid carbide construction for hardness and long edge retention
• 60-degree included angle for standard countersink geometry
• Double-end design doubles usable tool life per piece
• 1/32 inch drill point diameter enables fine-diameter center drilling
• Right-hand cut compatible with standard spindle rotation
• Bright uncoated finish suitable for a wide range of workpiece materials

Compatibility

Designed as an OEM-style replacement or direct equivalent for Trade Size 0 combination drill countersinks used in standard machining and toolroom applications. No specific machine model compatibility data was provided in the product input.

Installation Notes

Installation of this tool is performed by machinists or CNC operators in a controlled shop environment. Secure the tool in a collet or drill chuck rated for the 1/8 inch shank diameter before use. Ensure the spindle is fully stopped and the machine is powered off before changing or inspecting the tool. Follow standard shop safety practices and applicable OSHA machining guidelines when operating rotating cutting tools.
