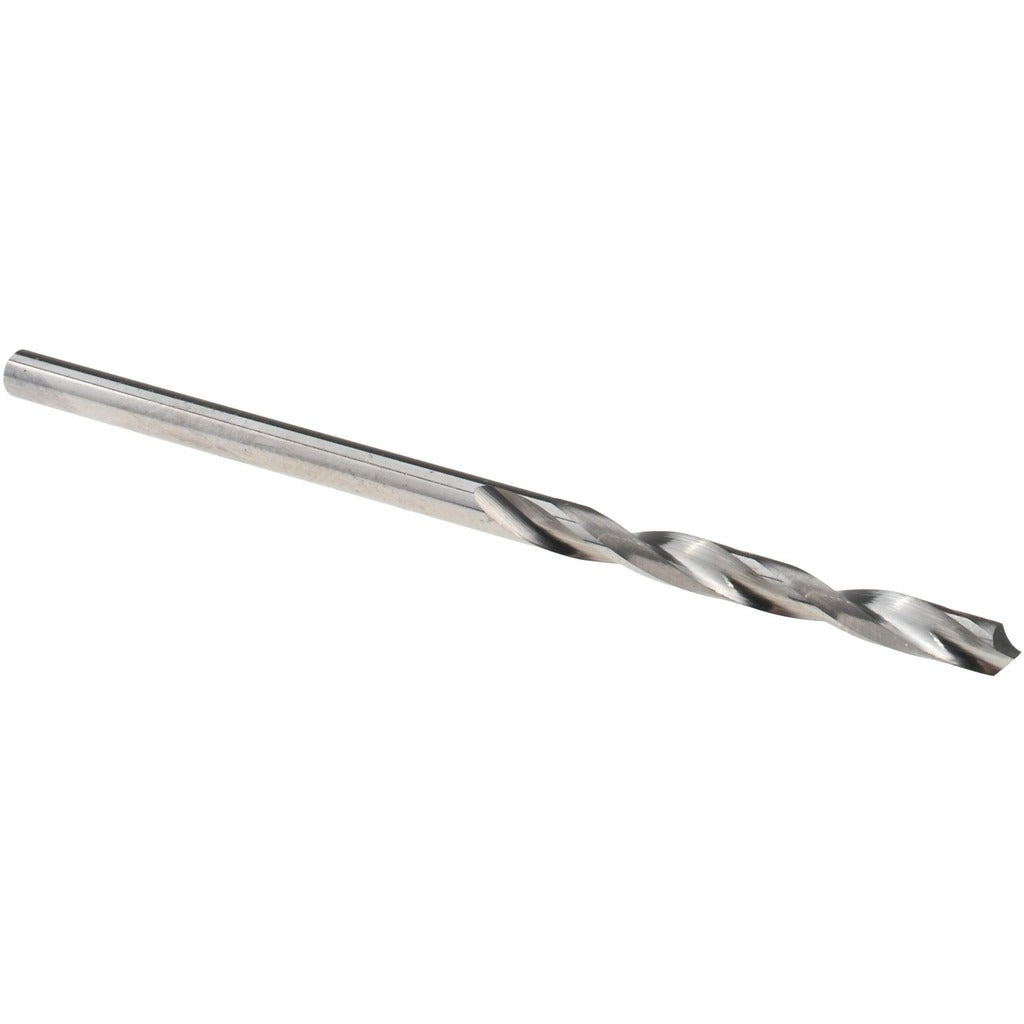

Sgs 51106 Solid Carbide Jobber Drill Bit 3/32 Inch

Product Description

The SGS 51106 is a solid carbide jobber-length drill bit designed for precision drilling in demanding materials. Built to DIN 338 standards, this Series 101 bit features a 118-degree faceted point with web thinning for improved centering and reduced thrust on entry. The micrograin carbide construction delivers superior hardness and wear resistance compared to high-speed steel alternatives. At 2 inches overall length with a 1-inch flute length, it is sized for general-purpose jobber applications in machine shops, maintenance environments, and production settings. Licensed trades and machining professionals who work with hard metals, composites, or plastics will find this bit suitable for close-tolerance work.

The SGS 51106 is used in precision drilling applications where tight diameter tolerances are required. With a diameter tolerance of -0.0005 to 0.0000 inches, it is well suited for applications demanding accurate hole sizing. The straight cylindrical shank fits standard drill chucks across a wide range of benchtop drill presses, CNC machining centers, and hand-held power tools. The right-hand spiral flute design provides efficient chip evacuation during drilling operations.

Key Features

• Micrograin solid carbide construction for hardness and extended tool life
• 118-degree faceted point with web thinning for accurate entry and reduced thrust
• Right-hand spiral flute with regular helix for effective chip clearance
• Tight diameter tolerance of -0.0005 to 0.0000 inches for precision hole sizing
• Straight cylindrical shank compatible with standard drill chucks
• Conforms to DIN 338 standard for jobber-length drill geometry

Compatibility

Designed as an OEM-style replacement or standard tooling option for any drill press, CNC machining center, or hand-held power tool accepting a straight cylindrical shank in the 3/32-inch diameter range.

Installation Notes

Installation and use should be performed by qualified machinists or trade professionals familiar with rotary cutting tools. Secure the straight cylindrical shank fully in the chuck and verify runout before drilling. Always power down and lock out the machine before changing drill bits. Do not exceed the recommended maximum drilling depth of 0.8 inches without retracting to clear chips.
