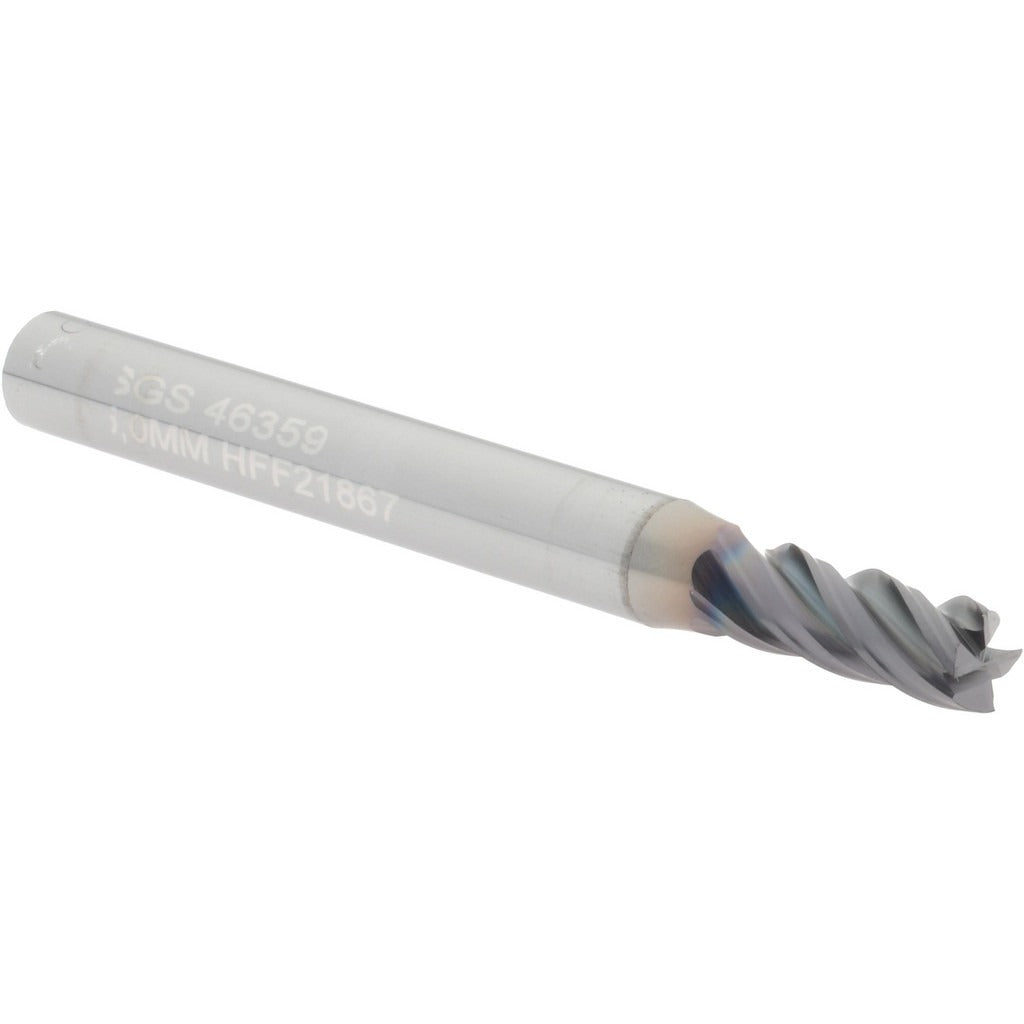

Sgs 46359 Square End Mill 5mm 4-flute Solid Carbide Altin

Product Description

The SGS 46359 is a 4-flute, solid carbide square end mill designed for high-performance milling in a wide range of metallic workpiece materials. With a 5 mm cutting diameter and a 13 mm length of cut, this end mill handles slotting, profiling, and peripheral milling operations in ferrous and non-ferrous applications. The AlTiN coating provides elevated heat resistance and hardness at the cutting edge, extending tool life in demanding conditions. A variable helix and variable index geometry reduce chatter and harmonic vibration, contributing to improved surface finish and dimensional accuracy across varying material conditions.

This end mill is suited for CNC machining centers and milling machines operating in precision production environments. Its micrograin carbide substrate and Z1M series geometry make it appropriate for cutting hardened steels, stainless steels, cast irons, and high-temperature alloys, as indicated by primary workpiece material codes H, K, M, P, and S. The 6 mm straight-cylindrical shank fits standard collet chucks and end mill holders in that bore size. Single-end configuration means the tool is replaced rather than reindexed at end of life.

Key Features

• AlTiN coating for extended tool life in high-heat cutting environments
• Variable helix and variable index geometry reduce vibration and chatter
• Micrograin solid carbide substrate for edge strength and wear resistance
• Right-hand cut, right-hand flute spiral for standard climb and conventional milling
• Non-centercutting design — not intended for direct plunge entry
• Regular-length profile with a 57 mm overall length for general-purpose reach

Compatibility

Compatible with workpiece material codes H, K, M, P, and S, covering hardened steels, cast irons, stainless steels, titanium, and other high-temperature alloys. Fits standard 6 mm bore collet chucks and end mill holders.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and the machine in a locked-out, de-energized state. Seat the shank fully into the collet or end mill holder and torque the retention mechanism to the toolholder manufacturer's specification. Because this is a non-centercutting end mill, use ramping or helical interpolation entry rather than direct axial plunge. Confirm runout with a dial indicator before beginning production cuts.
